Parts Replacement and Cleaning > Main Units/Parts > Removing the CIS Unit
Parts Replacement and Cleaning > Main Units/Parts > Removing the CIS Unit
Action to Take after Replacement
MEMO:
The service parts for toner supply unit do not come with a bottle ring. Remove the
bottle ring from the old toner supply unit and attach it to the new one.
The procedure is as follows:
1) Remove the toner bottle set lever.
1 parallel pin
2) Remove the bottle base.
1 screw
1 claw
爪
x1
x1
■
•
•
•

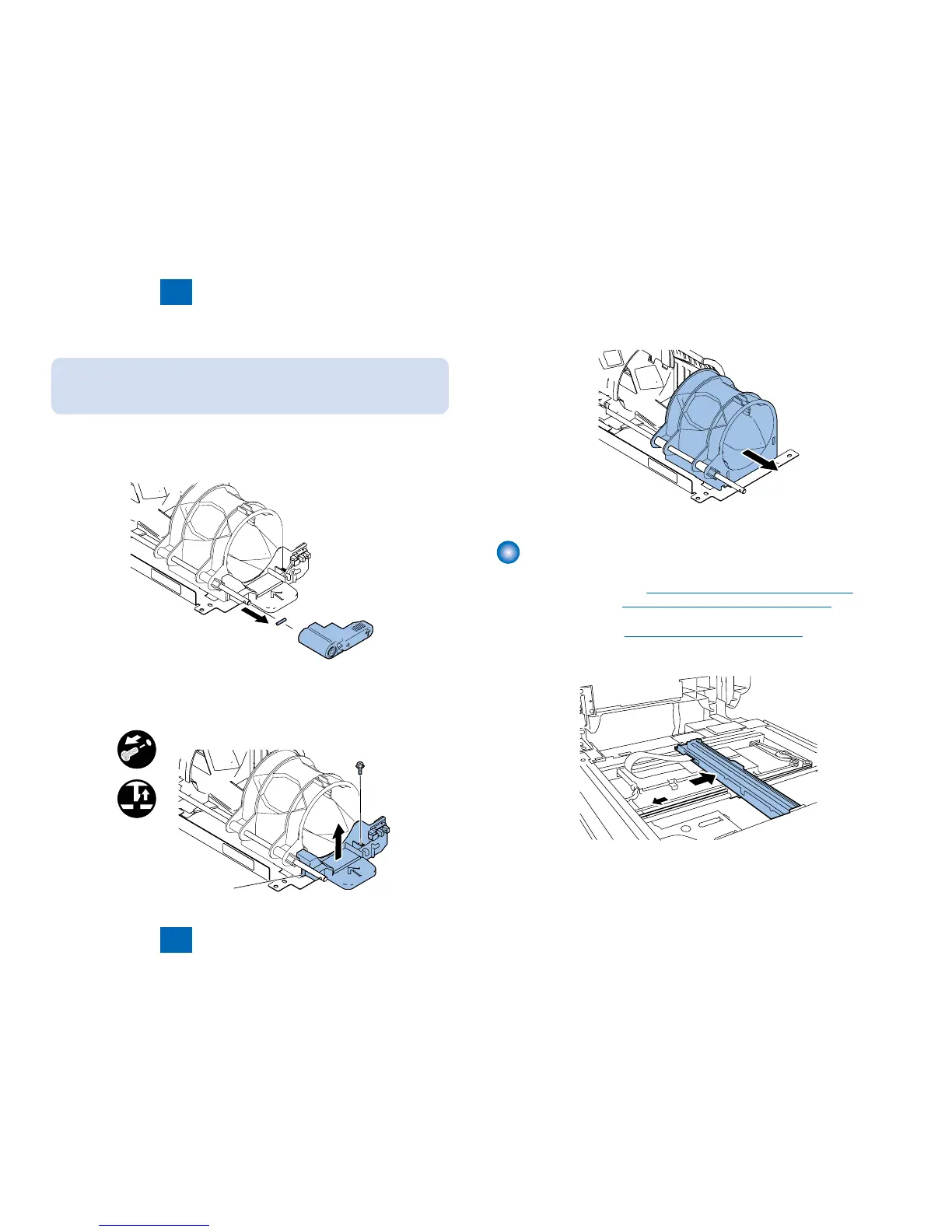

F-4-58F-4-58
F-4-59F-4-59
3)Remove the bottle ring.
Removing the CIS Unit
1) Open the platen (ADF/platen board cover).
2) Remove the reader rear cover.(
"Removing the Reader Rear Cover"(page 4-19). )
3) Remove the reader right.(
"Removing the Reader Right Cover"(page 4-19). )
4) Remove the right glass retainer.
5) Remove the platen glass.(
"Removing the Platen Glass"(page 4-19). )
6) Move the belt in the arrow direction and then the CIS unit to the groove position of the
frame.
F-4-60F-4-60
F-4-61F-4-61
