Technology > Pickup Feed System > Overview > Diagram of Paper Paths (w/ 2 Way Unit/ inaner 2 way tray)
Technology > Pickup Feed System > Overview > Diagram of Paper Paths (w/ 2 Way Unit/ inaner 2 way tray)
Route of Drive (250-sheet 1st cassette model)
2 Way Unit
M10
SL1
SL5
SL4
CL2
M1
M2
SL3
CL4
CL1
SL2
M1 Main motor SL4 Reversal solenoid
M2 Fixing motor SL5 No.2 delivery solenoid
M10 Reversal motor CL1 Registration clutch
SL1 Pickup solenoid CL2 Manual feed pickup clutch
SL2 Manual feed pickup solenoid CL4 Duplex feed clutch
SL3 No.1 delivery reversal solenoid
●
F-2-81F-2-81

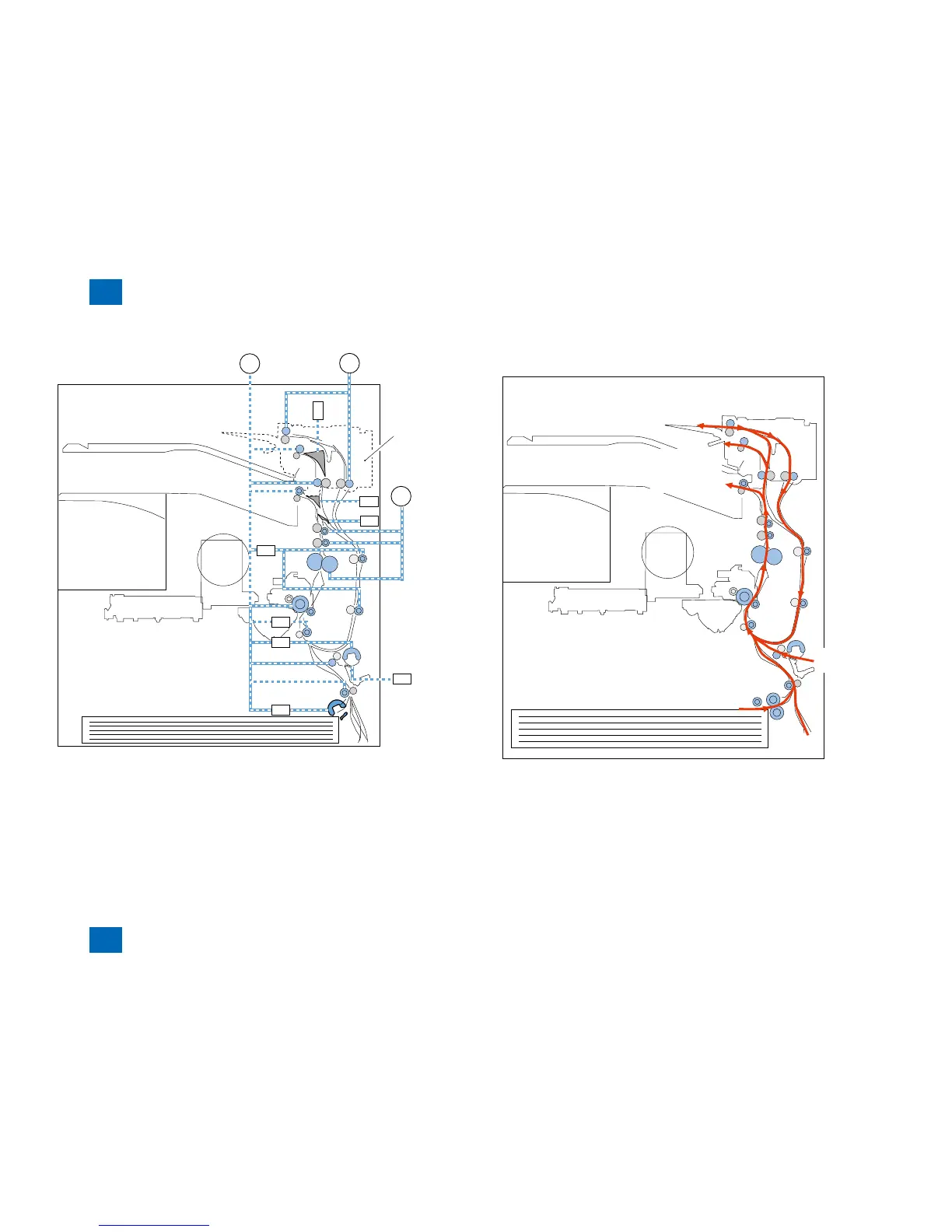

Diagram of Paper Paths (w/ 2 Way Unit/ inaner 2 way tray)
550-sheet 1st cassette model
Pickup from cassette 1
Pickup from
manual feeder
Delivery to tray 1
Delivery to tray 2
(option)
Reversing point
■
●
F-2-82F-2-82
