Adjustment > Image position adjustment > Leading Edge Non-Image Width
Adjustment > Image position adjustment > Leading Edge Non-Image Width
Image position adjustment
Copy 10 sheets from each pickup position to check that the image margin and non-image
area is within the standard.
Each cassette
Pickup tray
If it is not within the standard, go through the following procedures to adjust it.
CAUTION:
If changing the value of service mode item in this adjustment, enter the changed value
in the service label.

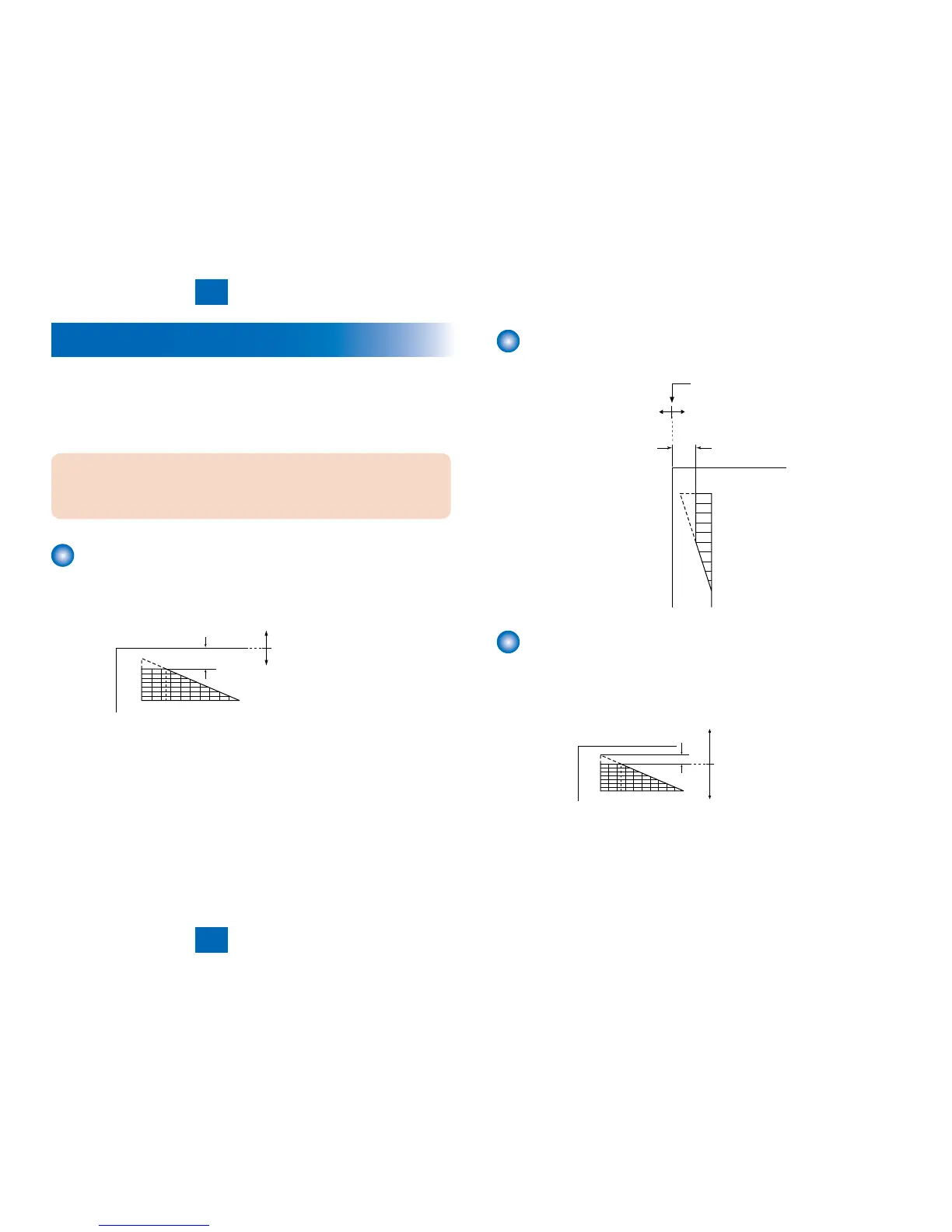

Margin Along the Leading Edge
Service mode> PRINT> PRINT NUMERIC> 053
2 54 6 8 10 12 14 16 18 200
Paper
leading edge
Decrease the value.
(a decrease of '10' will
increase the margin by 1 mm)
Increase the value.
(an increase of '10' will
increase the margin by 1 mm)
1st side of copy: 2.5+/-1.5mm
•
•
F-5-3F-5-3
Left Image Margin
Service mode> PRINT> PRINT NUMERIC> 056
10
8
6
5
4
2
0
1st side of copy: 2.5+/-1.5mm
Image left edge
Increase the value.
(an increase of '10' will
increase the margin
width by 1 mm)
Decrease the value.
(a decrease of '10' will
decrease the margin
width by 1 mm)
Leading Edge Non-Image Width
Service mode> SCAN> READER> ADJUST> ADJ-XY> ADJ-X
2 54 6 8 1012141618 200
1st side of copy: 2.5+/-1.5mm
Image leading
edge
Decrease the value.
(a decrease of '10' will decrease
the non-image width by 1 mm)
Increase the value.
(an increase of '10' will
increase the non-image
width by 1 mm)
F-5-4F-5-4
F-5-5F-5-5
