Canon iPF780 Series - Linear Scale

2-17

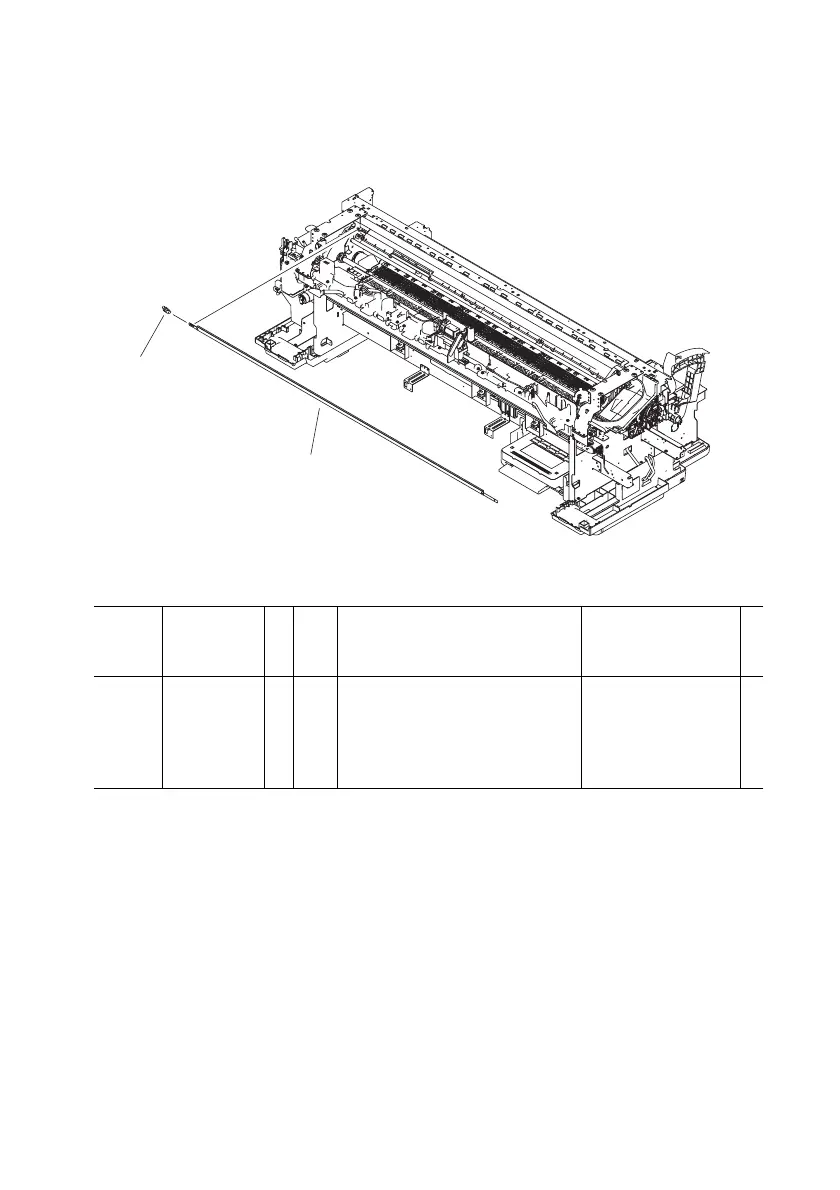

FIGURE 06
LINEAR SCALE
FIGURE
& KEY
NO.
PARTS
NUMBER
R
A
N
K
Q'TY DESCRIPTION
SERIAL NUMBER/
REMARKS
S
V
C
Fig.06 NPN RF LINEAR SCALE
1 QC3-1878-000 1 SCALE, LINEAR iPF765/760/755/750
1 QD1-0006-000 1 SCALE, LINEAR iPF786/785/781/780
2 QU1-2437-000 1 SPRING, TENSION
2
1
