Canon iPF780 Series - Ink Tank Unit

Chapter 4
4-25
4.3.8 Ink Tank Unit
0031-2624
a) Ink Tank Unit
Removing the Right Ink Tank Unit
1) Perform ink drainage. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Draining the ink".
2) Remove the right cover, front cover, and right ink tank cover.

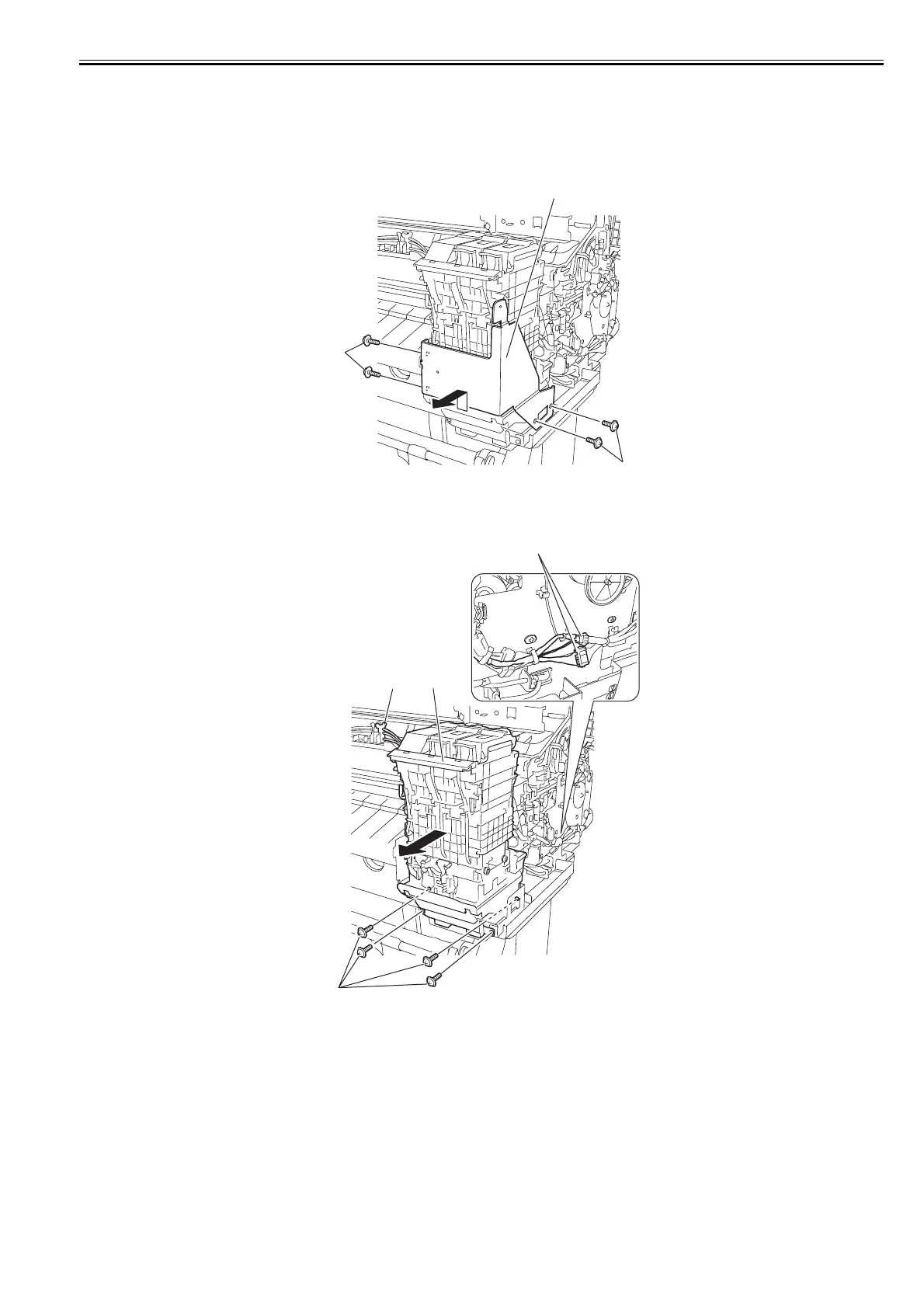

3) Remove four screws [1], and then remove the support plate [2].
F-4-50
4) Remove four screws [1] and disconnect two connectors [2], and then remove the cable from the cable guide. Then, remove the joint [3] between the ink tube unit
and ink tank unit carefully and remove the ink tube from the guide, and then remove the right ink tank unit [4].
F-4-51
[2]
[1]
[1]
[3]
[4]
[2]
[1]
