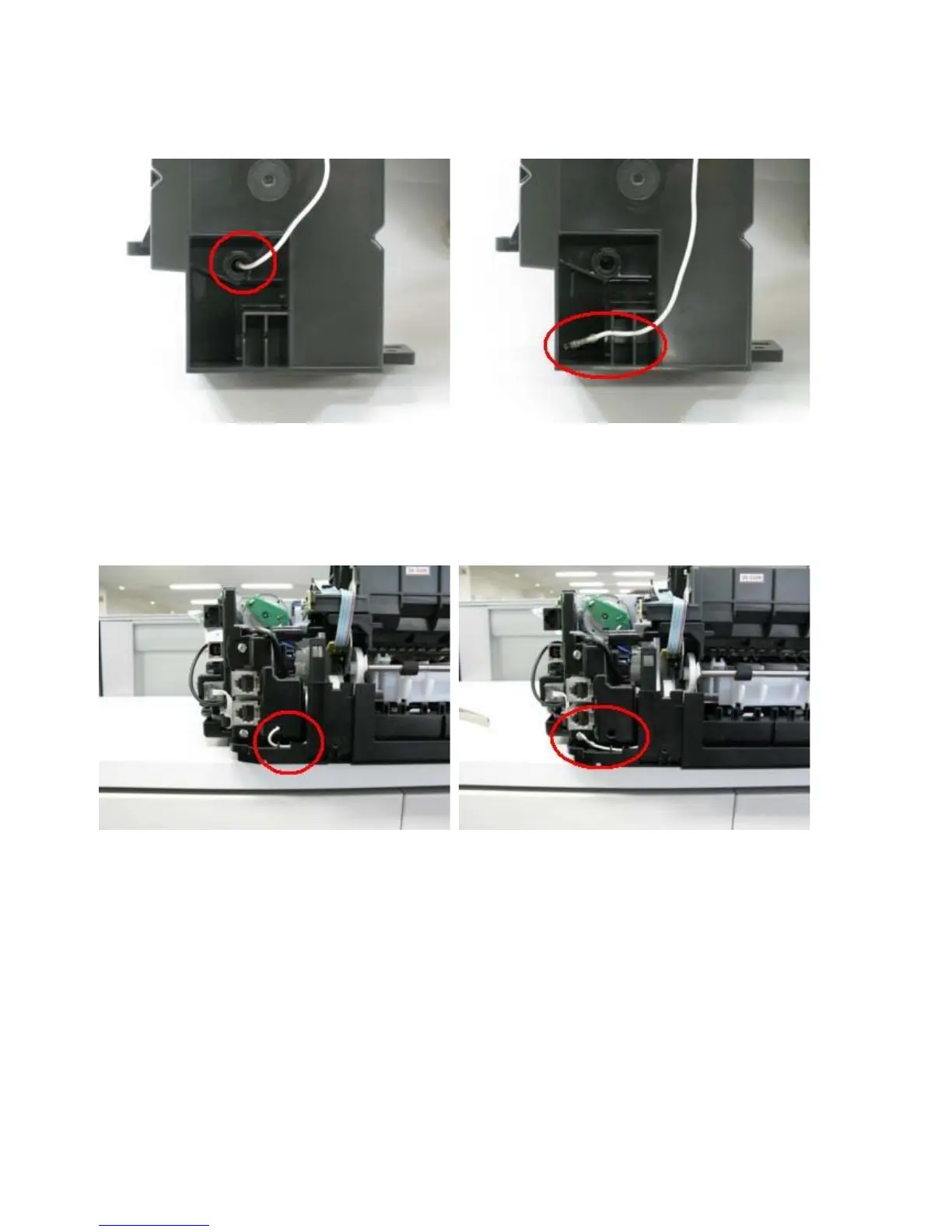

(7) Power supply unit and modular board replacement
1) The ground wiring to the AC adapter differs between the Japan model and the other models.
Note: The photos are of the MX870 as an example.
2) The ground wiring to the modular board differs between the Japan model and the other models.
Note: The photos are of the MX870 as an example.
(8) Rating label on the bottom case (except China*)
When the bottom case is replaced, be sure to remove the rating label from the original bottom case and attach it to
the replaced new one. The rating label is given to each printer unit respectively, thus the label of one unit is valid
only for that unit. For this reason, the label is not available as a service part.
* Note that there is no shipment of the bottom case to China.
<Japan model> <Other models>
<Japan model> <Other models>
