CHAPTER 2 BASIC OPERATION
F. Outputs from DC Controller
1. Outputs from DC Controller (1/2)
+24V
MMD
DC controller/DC power supply PCB
High voltage
output
Main motor
M1
Scanning
lamp
Lamp PCB
J101
J102
J108
-1
-2
J201
-5
-4
J903
-1
-2
J906
-1
-2
See Chap.6.
See Chap.3.
See Chap.4.
When ‘0’, main motor goes ON.
LA1 to LA8
Fixing heater
H1
FU2
Thermal fuse 2
FU1
Thermal fuse 1

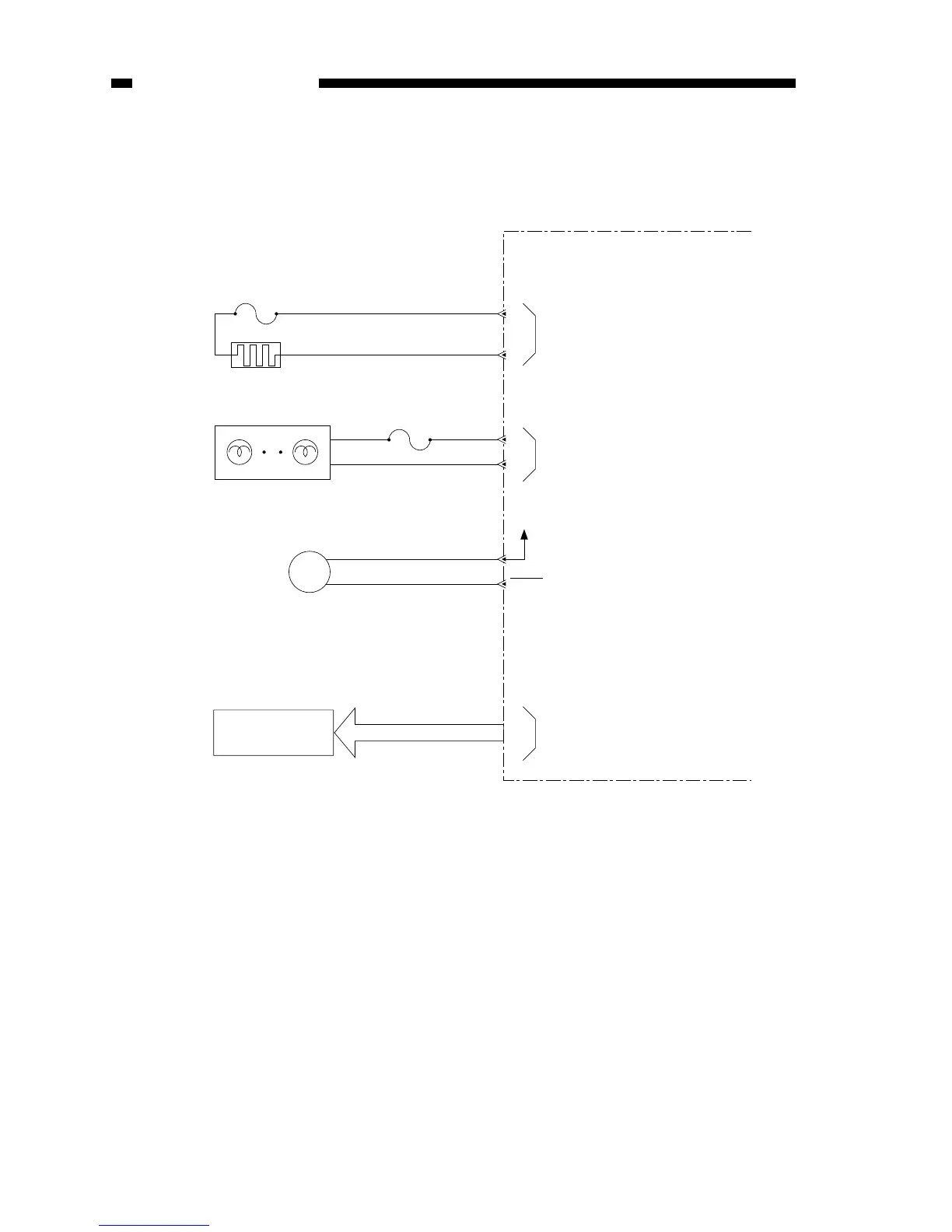

Figure 2-101F
