Canon PC420 - Removing the Separation Pad

COPYRIGHT © 1998 CANON INC. CANON PC400/420/430,FC200/220 REV.0 JAN.1998 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-15

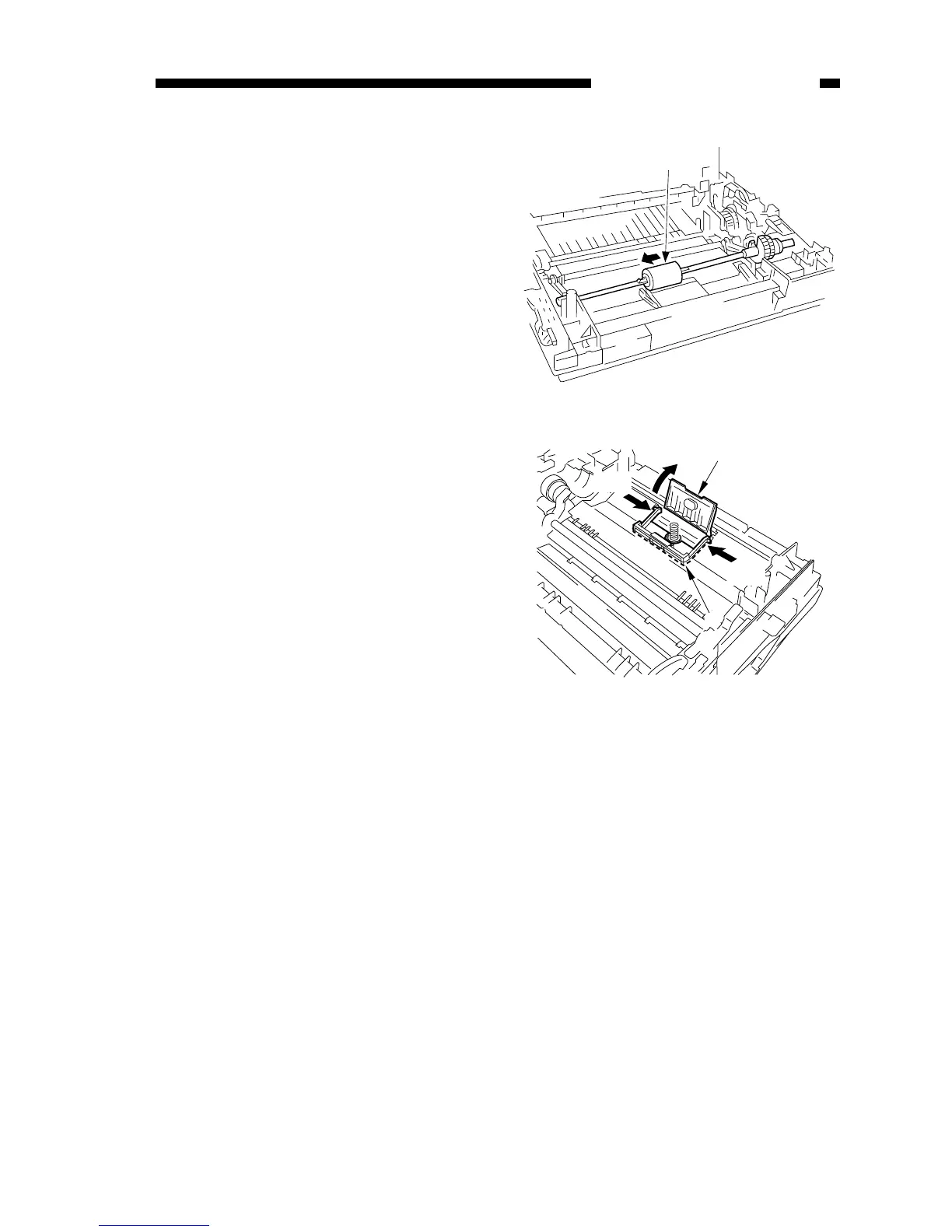

C. Removing the Separation
Pad
1) Remove the pick-up roller assembly
q.
q
Push
Push
➁
➂
Figure 5-501C
Figure 5-502C
2) Open up the feeding guide w, and
remove the separation guide e.
