Canon PIXMA E414

To Next Page

To Previous Page

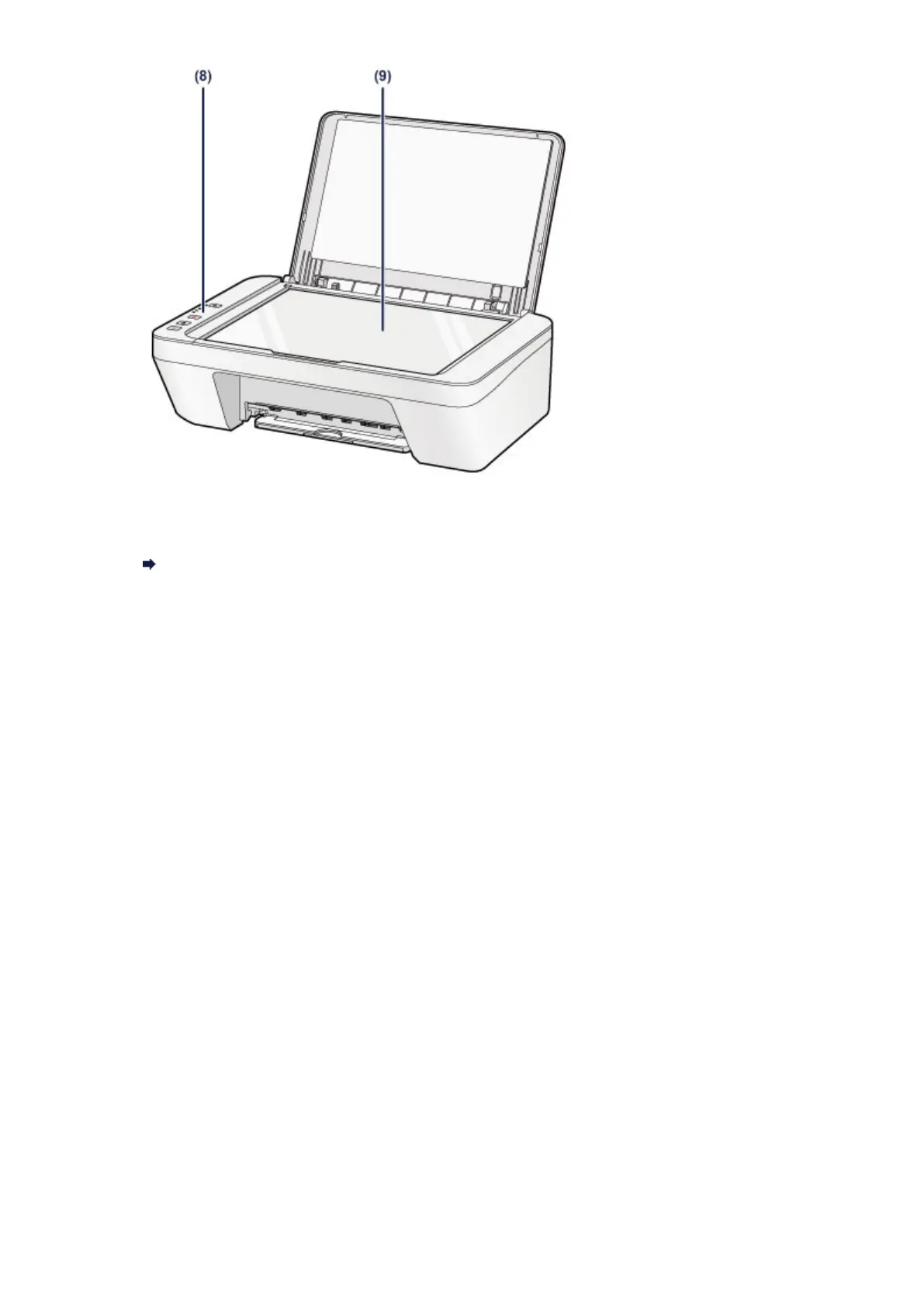

(8) operation panel

Use to change the settings of the machine or to operate it.

Operation Panel

(9) platen glass

Load an original to copy or scan.
