27
Part Names
Before Use

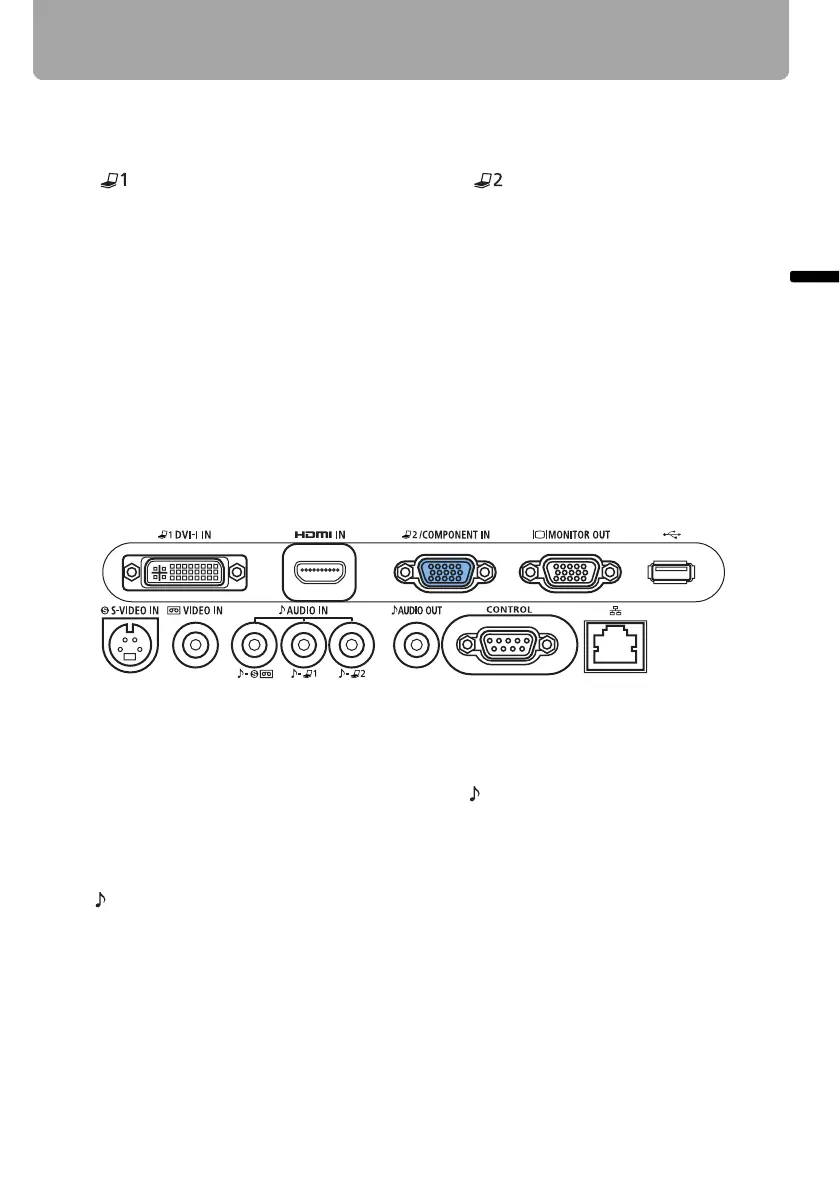

Input Terminals
(1) ANALOG PC-1/DVI-I IN Input Terminal
( /DVI-I IN) (P37)
Connects an external monitor output
from a computer.
Receives an analog PC (ANALOG
PC-1) or a digital signal (DIGITAL PC).
(2) HDMI IN Terminal (P38)
Receives a digital content image sig-
nal (HDMI).
Carries both video and audio signals
across a single cable.
(3)
ANALOG PC-2/COMPONENT IN Terminal
(/COMPONENT IN) (P35, P40)
Receives an analog PC signal (ANA-
LOG PC-2).
Use a supplied component cable to
receive a component image signal
(COMPONENT).
(4) Monitor Output Terminal (MONITOR
OUT) (P36)
Outputs an analog RGB signal to dis-
play an image on an external monitor.
(5) USB Terminal (P41)
Connects a digital camera or an USB
flash memory.
(6) S-VIDEO IN Terminal (P39)
Receives an S-Video signal from AV
equipment.
(7) VIDEO IN Terminal (P39)
Receives a composite video signal
from AV equipment.
(8) AUDIO IN Terminal (P35, P37, P39,
P40)
The audio input terminals correspond-
ing to 3 image input systems other
than HDMI-IN. Each terminal receives
the audio signal corresponding to "S-
VIDEO or VIDEO", "DIGITAL PC/ANA-
LOG PC-1", and "ANALOG PC-2/
COMPONENT" from the left. The inter-
nal speaker outputs the audio signal
corresponding to the selected image
signal.
(9) AUDIO OUT Terminal (P36, P37,
P38)
The audio output terminal to output an
audio to external AV equipment. It out-
puts the audio signal corresponding
to the projected image signal.
(10) Service port (CONTROL)
Exclusively used by the service per-
sonnel (it is not used normally).
(11) LAN port (P116)
Connects a LAN cable.
Used to connect the projector to the
network.
(1) (2) (3) (4) (5)
(6) (7) (8) (9) (10) (11)
To Next Page
