Adjusting
1. Jack up and support the machine parallel to
the ground.
2. Loosen the lock nut.
3. Adjust the track with adjust bolt so that the
clearance between the track and the wheels
at the furthest are between 20 and 30mm
(0.79" - 1.18").
4. Tighten the lock nut
5. Lower the machine.

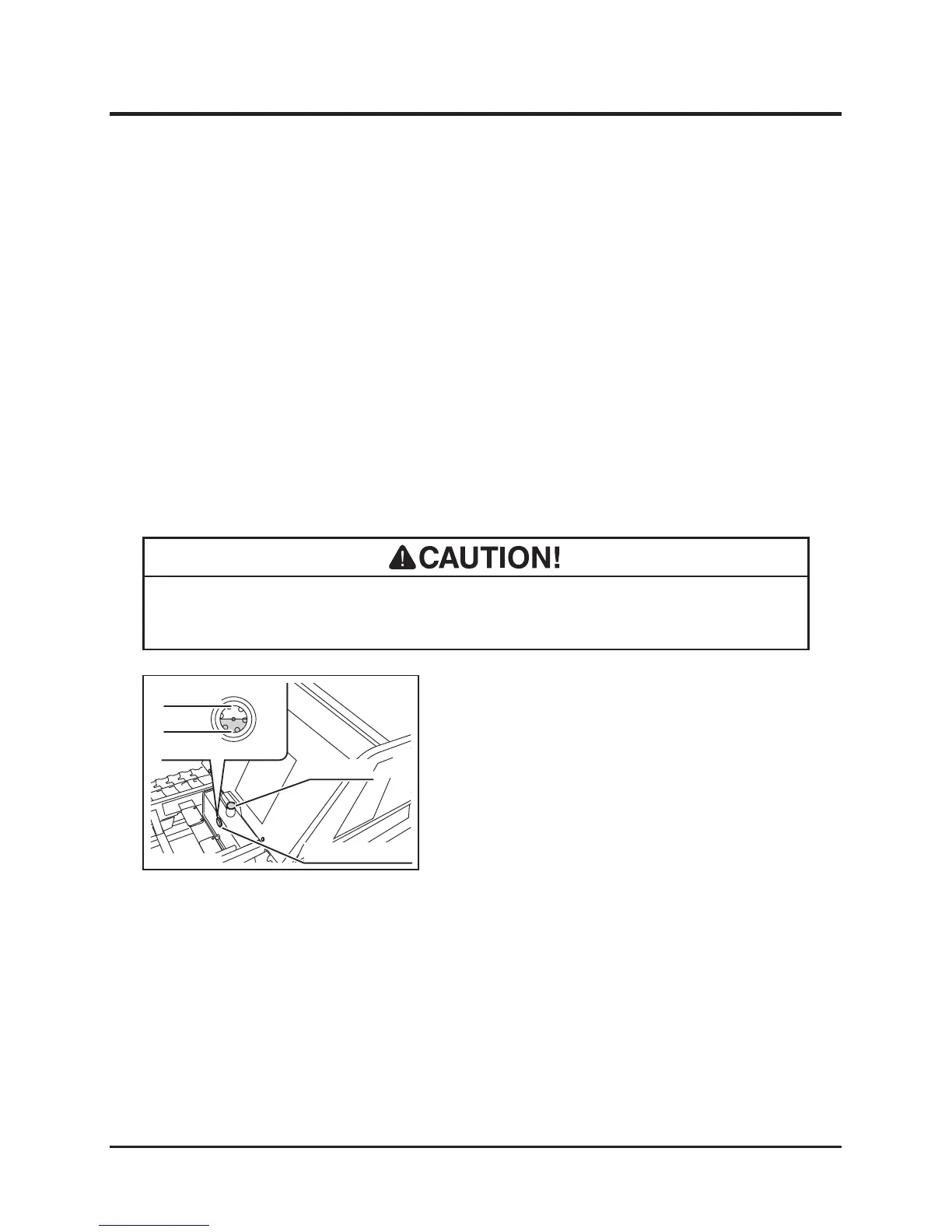

HST (HydroStatic Transmission) Fluid
• Dispose of the drained uid properly, according to the national and local regula-
tions.
1. Park the machine on a level ground.
2. Lift the bucket and hold the bucket with the
safety prop. (Page 26) Lock the dump lever
with lock plate.
3. Visually inspect the oil level window.
4. If the level is low, open the ller cap and ll
uid. Put the ller cap back in place.
5. Undo the safety prop. Lower the bucket.
Inspecting/Filling
