Top outlet to rear ducting outlet
Top extraction and rear extraction modes can be selected depending on the cabinet
and other requirements. Please follow the below instructions if the change in
extraction is required:
2. Ducted air must not be discharged into a flue which is used for exhausting fumes from appliances
supplied with energy other than electricity.
3. Ensure the requirement of the local authorities and building regulations are adhered to concerning
the discharged of exhaust air.
4. Ensure adequate room ventilation is provided when the extractor is used on the same room as
appliances supplied with energy other than electricity.
5. Never duct into a hot air flow such as a central heating duct.
We strongly advise that all exterior outlets be fitted with a non return valve with louvered slots.
2. The Re-circulation Mode (Fig.2)
When there is no easy access to an outside wall, the extractor can easily be adapted to clean air
polluted by cooking smells by using a charcoal filter (code: CAP73CF). Replacements can be
purchased from www.caple.co.uk. Remember the re-circulation mode cannot be used without a
charcoal filter.
The Charcoal Filter
Charcoal filters have a limited life. We advise you to change it when there is a noticeable drop in
performance. The intervals between changing the filter will be depend entirely upon the amount of
cooking you do. But on average they will last about 6 months, they should then be replaced.
Operating Your Extractor
The motor will automatically operate by opening and closing the front door panel as long as the
switch is set to the desired speed level. The extractor fan has three speed settings for light, medium
or heavy extraction of cooking vapors. The different levels of extraction are number 1, 2 & 3 and can
be recognized by the changes in noise level of the extractor fan when operating.

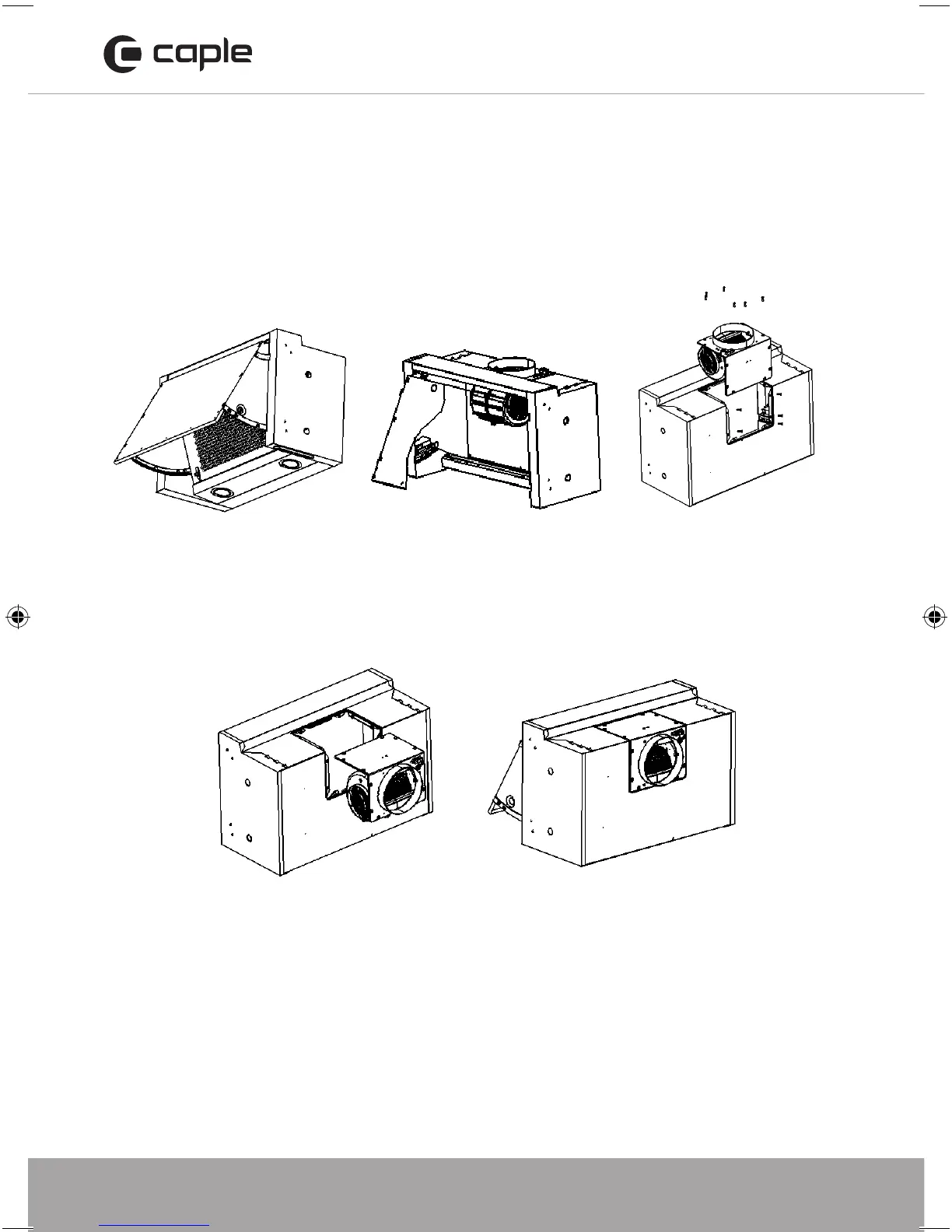

3.Top outlet to rear ducting outlet
Top extraction and rear extraction modes can be selected depending on the cabinet and other
requirements. Please follow the below instructions if the change in extraction is required:
1.Top outlet 2.Open the front panel ,take out the 3.Remove the transfer
filters and release the wiring tie screws shown above
5
1.Top outlet
4.Turn round the
transfer box to the
back position and
replace the screws
2.Open the front panel
,take out the filters and
release the wiring tie
3.Remove the
transfer screws
shown above
4.Turn round the transfer box to 5.The rear outlet is now selected
the back position and replace the screws
Operation
To switch on the light simply move the switch to position 1.
NOTE: The light is not effected by opening or closing the front panel.
To change the charcoal filter remove the old cassette by twisting an pulling off. Re-fit the new
version my pushing onto the lugs and twisting to fixing in position.
6
5.The rear outlet is
now selected
