Required Components

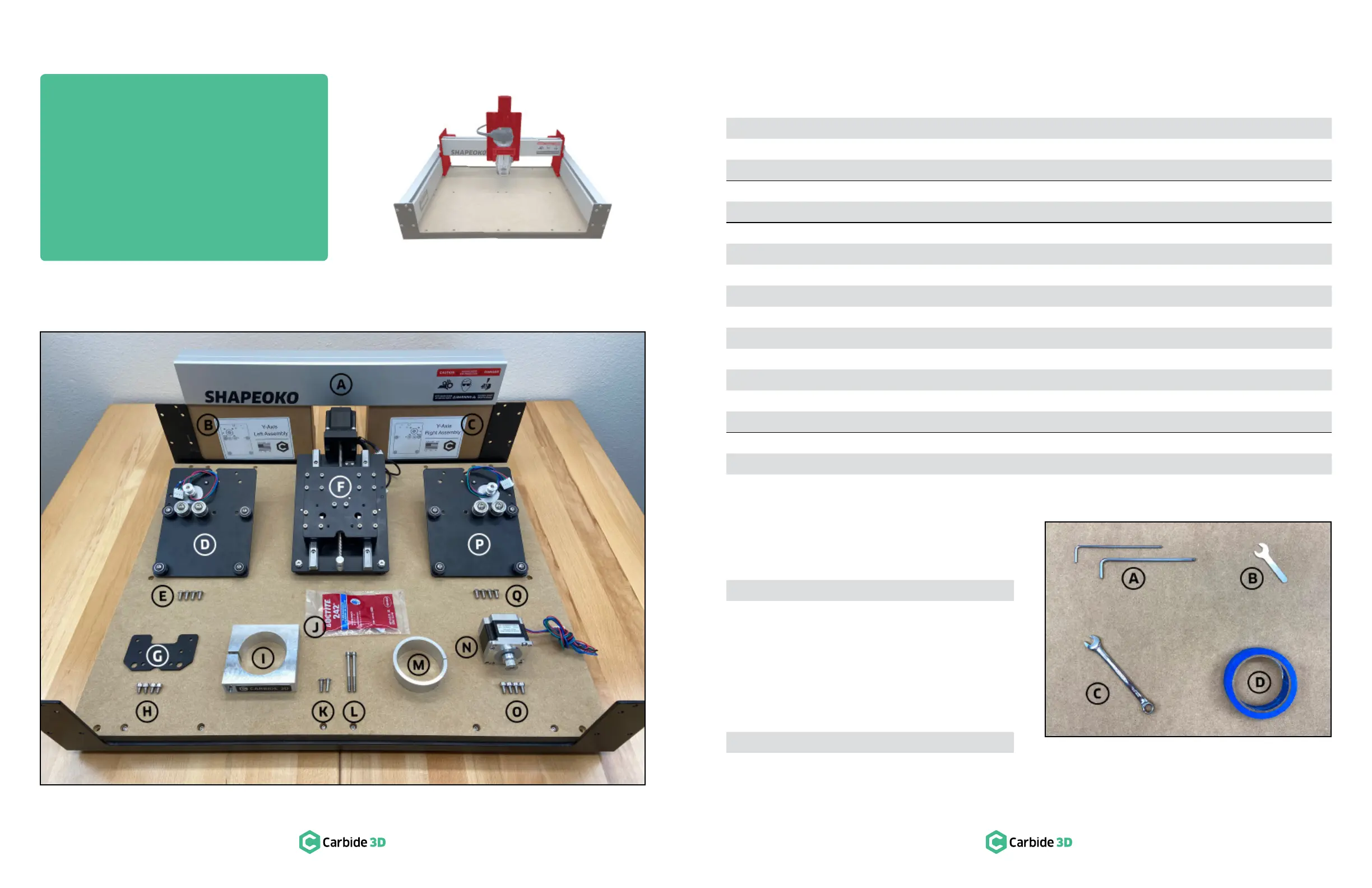

See Figure3‑2:
Item Description Location Qty
A X-Axis Aluminum Extrusion Rail (X-Rail) N/A 1
B  N/A 1
C  N/A 1
D Y-Axis Left Carriage (Y1-Carriage) Y-Axis Left Assembly Box 1
E × 12mm Button Head Cap Screw Shapeoko 3 Final Assembly Box 4
F Z-Plus Carriage (Z-Plus) X/Z+ Box 1
G Tramming Plate X/Z+ Box 1
H M5 × 8mm Socket Head Cap Screw X/Z+ Box 4
I Router Mount Shapeoko 3 Final Assembly Box 1
J Loctite 242 Threadlocker Shapeoko 3 Final Assembly Box 1
K M5 × Shapeoko 3 Final Assembly Box 2
L M5 × 55mm Socket Head Cap Screw Shapeoko 3 Final Assembly Box 2
M Router Mount Adapter Ring Shapeoko 3 Final Assembly Box 1
N  X/Z+ Box 1
O M5 × 10mm Socket Head Cap Screw X/Z+ Box 4
P Y-Axis Right Carriage (Y2-Carriage) Y-Axis Right Assembly Box 1
Q × 12mm Button Head Cap Screw Shapeoko 3 Final Assembly Box 4
Required Tools
See Figure3‑3:
Item Description Qty
A 3 and 4mm Hex Key 2
B 10mm Wrench 1
Recommended Tools
See Figure3‑3:
Item Description Qty
C 10mm Combination Wrench 1
D Masking Tape 1
Figure3-2
Figure3-3
Step 3
Carriages
