Placing the Display
Wall Mounting, Cont.

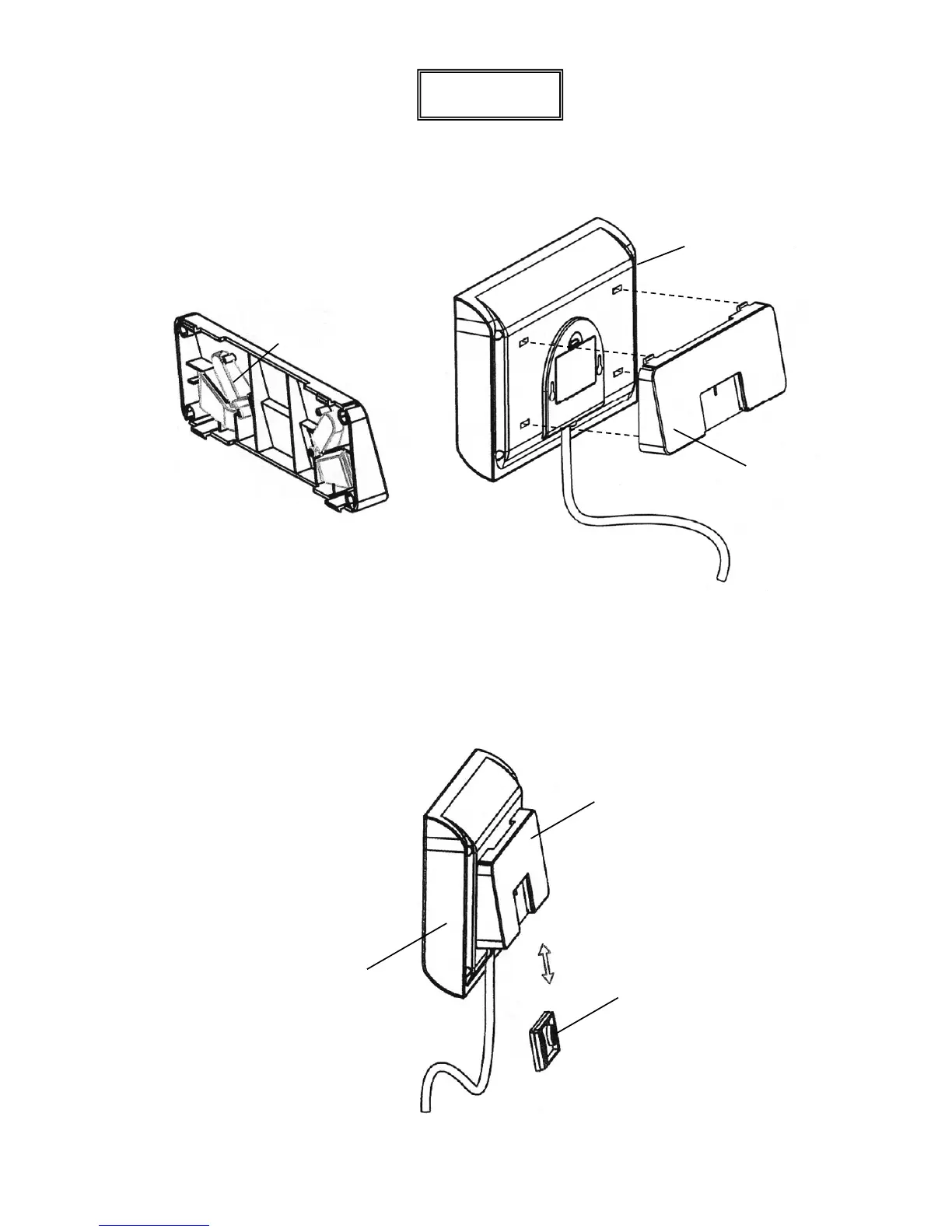

7. Referring to Figure No. 2, make sure the four (4) feet of Wall Bracket “A” are placed in the
bracket.
Feet
(for Desk or
Table Mounting)
Dis
p
la
y
Figure No. 2
Figure No. 3
Wall
Bracket
“A”
8. Next, locate the four (4) slots on the back of the display and align them with the four (4)
tabs on the Wall Bracket “A”. Refer to Figure No. 3.
9. Insert the tabs into the slots and press together until the bracket locks to the back of the
display.
10. Referring to Figure No. 4, align the cutout in Wall Bracket “A” with Wall Bracket “B” and
gently pull down to secure the display to the wall.
Dis
p
la
y
Wall
Bracket
“A”
Wall
Bracket
“B”
Figure No. 4
0044-M340-O1 Rev C  ProDoc Series
