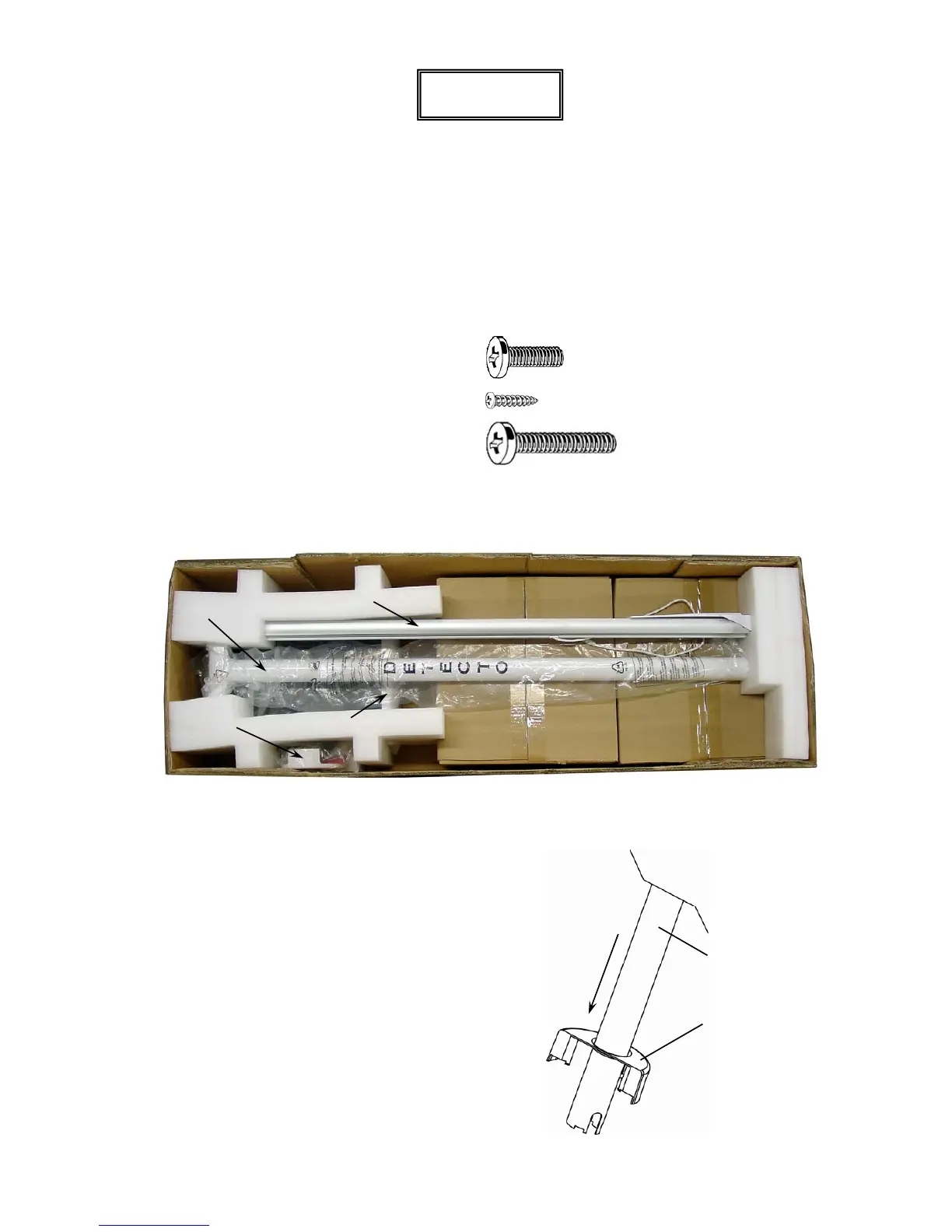

Unpacking
Remove the scale base, display, hardware pack and other components from the shipping
carton. After removing from the carton, check for any damage that may have taken place during
shipment. Keep and use the original carton and packing material for return shipment if it should
become necessary. The purchaser is responsible for filing all claims for any damages or loss
incurred during transit. Remove all plastic wrapping, foam fillers and cardboard material from
the scale base, display and other components. You should have the following components:
Scale Base
Column with attached Display
Column Cover
M4x8 Machine Screw
Hardware Pack, containing:
(3) M4x8 Machine Screw
M2.0x10 Column Cover Screw
(3) M2.0x10 Column Cover Screw
(4) M5x15 Machine Screws
M5x15 Machine Screw
(1) Philips Screwdriver
Optional 9V AC/DC wall plug-in adapter
Optional Digital or Mechanical Height Rod
Assembly
Installing the Column and Display
1. Insert the column into the column cover.
Figure No. 9
Column
Column
Cover
0044-M340-O1 Rev C ProDoc Series
9
To Next Page
