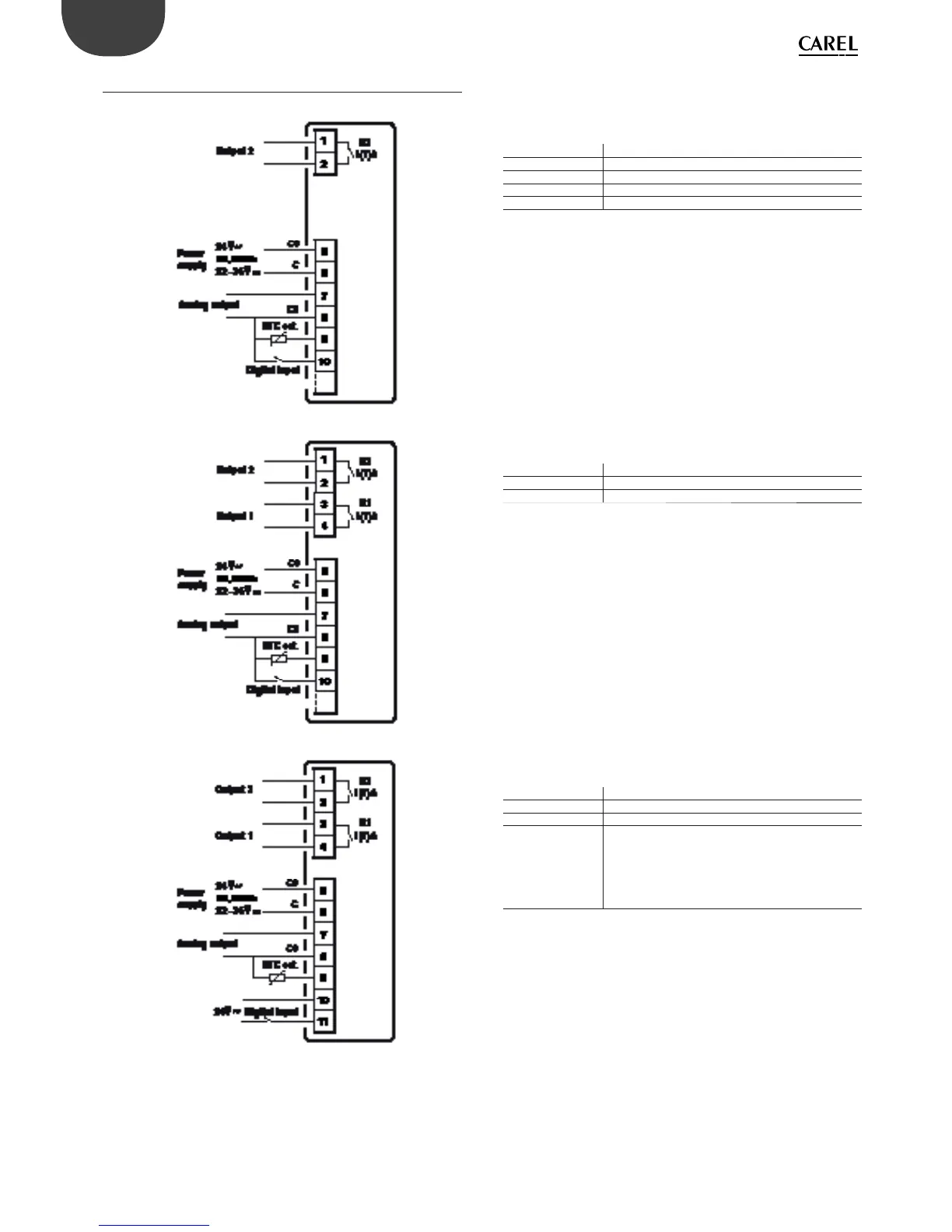

2.3 Electrical connections:
Fig. 2.d
Models with one relay only:
Code Description
ADCA000100 temperature control
ADCA000110 temperature control
ADCD000100 humidity control
ADCD000110 humidity control
Tab. 2.b
Models with two relays and voltage-free digital input:
Code Description
ADCA000210 temperature control
ADCF000210 temperature & humidity control
Tab. 2.c
Models with two relays and optically-isolated digital input:
Code Description
ADCA000410 temperature control
ADCF000410 temperature & humidity control
ADCF000610 Temperature & humidity control of radiant  oors,
proportional mode
relay 2: used for humidity
relay 1: used for temperature
AO: analogue output for water mixing valve control
remote NTC for water temperature ( oor)
Tab. 2.d
