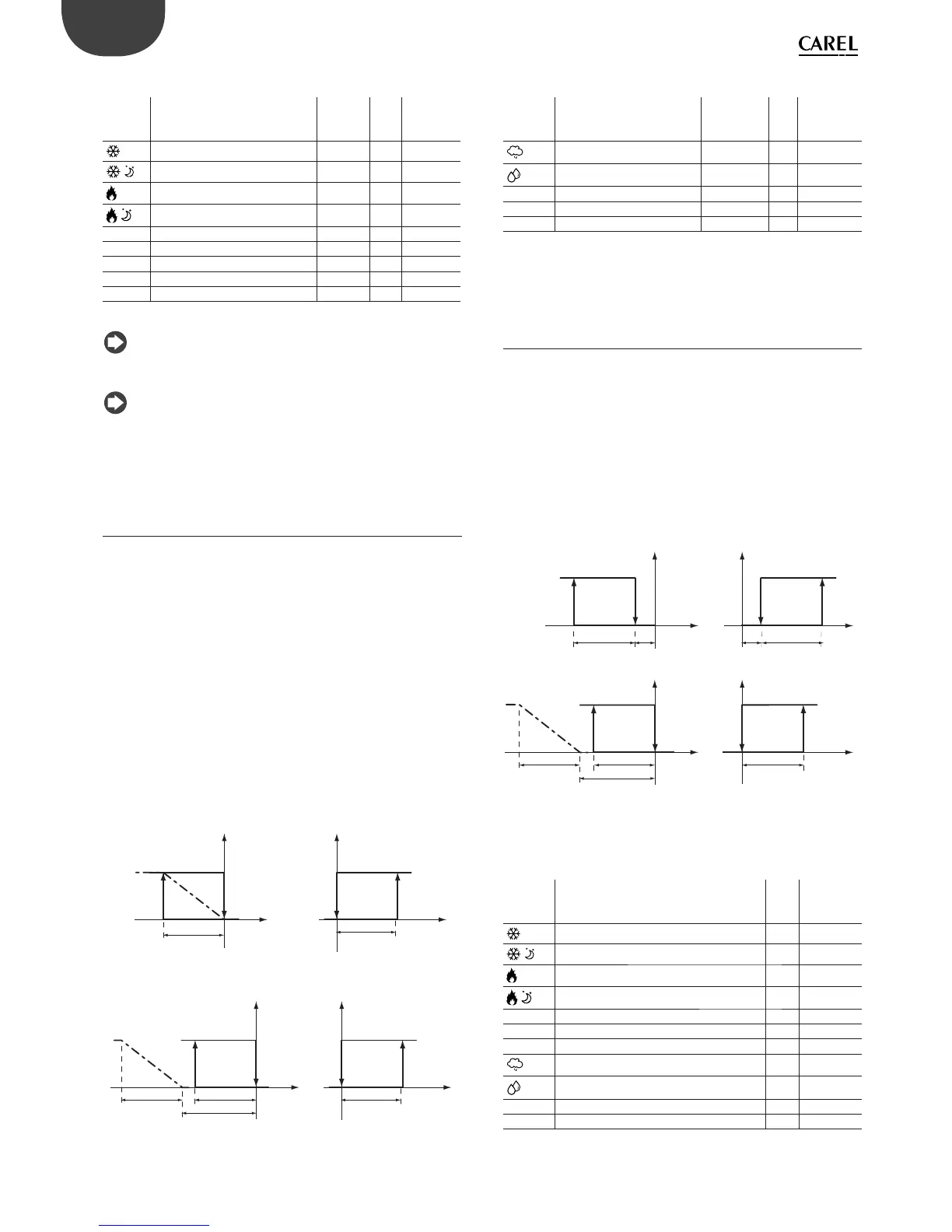

Parameters involved:
Code Description Default LE
Value or
link if LE
= 1
day set point in cooling 24.0 °C 1 -
night set point in cooling 26.0 °C 1 -
day set point in heating 20.0 °C 1 -
night set point in heating 18.0 °C 1 -
dIF relay 1 di erential 1.0 °C 1 -
dF2 relay 2 di erential 1.0 °C 2 = dIF
dFA analogue output di erential 1.0 °C 2 = 2 * dIF
dS1 relay o set 0.0 °C 2 = 0
dSA analogue output o set 0.0 °C 2 = 0
Tab. 5.b
Note: When LE=1 proportional and ON/OFF control overlap,
therefore modifying parameter DIF changes the di erential for
both.
Note: Passing to level 2 allows the two types of control,
proportional and ON/OFF, to be positioned independently.
Parameters dSA and dS1 can have both positive and negative values,
allowing the two types of control, proportional and ON/OFF, to be set as
desired.
5.3 (H) humidity control
This type of control is only possible on the models tted with digital
humidity sensor (ADCD******, ADCF******)
It is used in simple applications to send a start signal to a humidi er or
dehumidi er.
The analogue output can only be used for humidi cation control.
Examples of using of the analogue output:
for proportional humidity control by CAREL humidi ers, for example •
compactSteam
as an additional step to the relay for humidity control.•
Dipswitch con guration:
dip1: ON
dip2: OFF
dip3: OFF
The control mode is selected using dipswitch 4 located on the rear.
dip4 = ON for humidi cation
dip4 = OFF for dehumidi cation
LE=1
10 V
0 V
DIP 4 = ON DIP 4 = OFF
dFH
dFd
% U.R
Output Output
Set point umidifica Set point deumidifica
% U.R
R2
R2
Fig. 5.e
LE=2
10 V
0 V
DIP 4 = ON DIP 4 = OFF
dFH dFH dFd
dSA
% U.R
Output Output
Set point umidifica Set point deumidifica
% U.R
R2 R2
Fig. 5.f
Parameters involved:
Code Description Default LE
Value or
link if LE
= 1
humidi cation set point 50.0 % rH 1 -
dehumidi cation set point 70.0 % rH 1 -
dFH humidi cation di erential 5.0 % rH 1 -
dFd dehumidi cation di erential 5.0 % rH 1 -
dSA analogue output o set 0.0 % rH 2 =0
Tab. 5.c
5.4 (T+H) temperature plus humidity
control
This type of control is only possible on the models tted with digital
temperature + humidity sensor (ADCF******)
It is used in simple applications, with one stage for the temperature
and one for the humidity, to send a start signal to an air-conditioner or
heat pump/boiler via the relay. The analogue output is only activated in
humidi cation mode.
Dipswitch con guration:
dip1: ON
dip2: ON
dip3: OFF
Control is available in both cooling and heating (dip4).
DIP 4 = ON DIP 4 = OFF
dFHdFH
dSA
% U.R % U.RdFd
dS1 dS1
Temp. Temp.
Output Output
Output Output
Set point invernale Set point estivo
Set point umidifica Set point deumidifica
dIF dIF
R1 R1
R2R2
Fig. 5.g
Temperature (top) and humidty control mode (bottom) when LE=2.
Parameters involved:
Code Description Default LE
Value or
link if LE
= 1
day set point in cooling 24.0 °C 1 -
night set point in cooling 26.0 °C 1 -
day set point in heating 20.0 °C 1 -
night set point in heating 18.0 °C 1 -
dIF relay di erential 1.0 °C 1 -
dS1 relay o set 0.0 °C 2 = 0
dSA analogue output o set 0.0 % rH 2 =0
humidi cation set point 50.0 % rH 1 -
dehumidi cation set point 70.0 % rH 1 -
dFH humidi cation di erential 5.0 % rH 1 -
dFd dehumidi cation di . 5.0 % rH 1 -
Tab. 5.d
