ir33 universale +030220801 - rel. 1.0 - 16.04.2008
SSR

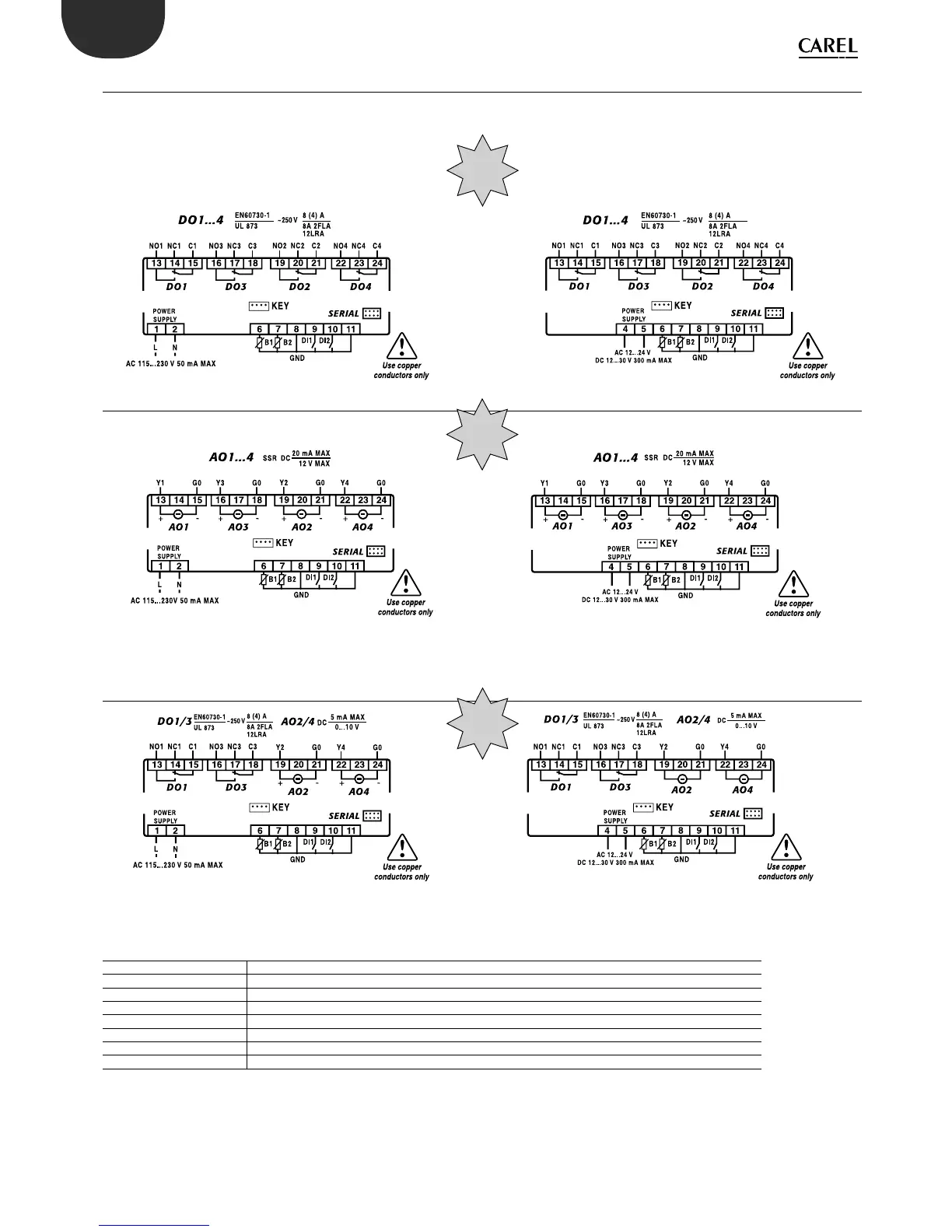

2.4 DN33 Universal wiring diagrams
For models with the same type of outputs, only the wiring diagram of the model with the most outputs has been shown (models : “Z”, “A”, “E”).
DN33V7HR20 / DN33V7HB20 DN33V7LR20 / DN33W7LR20 / DN33Z7LR20
DN33W7HR20 / DN33W7HB20
DN33Z7HR20 / DN33Z7HB20
DN33A7HR20 / DN33A7HB20 DN33A7LR20
DN33B7HR20 / DN33B7HB20 DN33B7LR20
DN33E7HR20 / DN33E7HB20 DN33E7LR20
Key
POWER SUPPLY Power supply
DO1/DO2/DO3/DO4 Digital output 1/2/3/4 (relays 1/2/3/4)
AO1/AO2/AO3/AO4 PWM output for controlling external solid state relays (SSR) or 0 to 10 Vdc analogue output
G0 PWM or 0 to 10 Vdc analogue output reference
Y1/Y2/Y3/Y4 PWM or 0 to 10 Vdc analogue output signal
C/NC/NO Common/Normally closed/Normally open (relay output)
B1/B2 Probe 1/Probe 2
DI1/DI2 Digital input 1/ Digital input 2
Relays
Relays +
0 to 10V
To Next Page
