Carel MPXone series User Manual

ENG
Note:
l the glass temperature probe must be connected to the coldest point of the showcase glass, for
optimum operation of the anti- sweat device (heaters or fans). See the instruction sheet
+050002005
l see manual +040010025 (ITA- ENG) /+040010026 (FRE-GER) for guidelines on installing the sensors
on the unit.

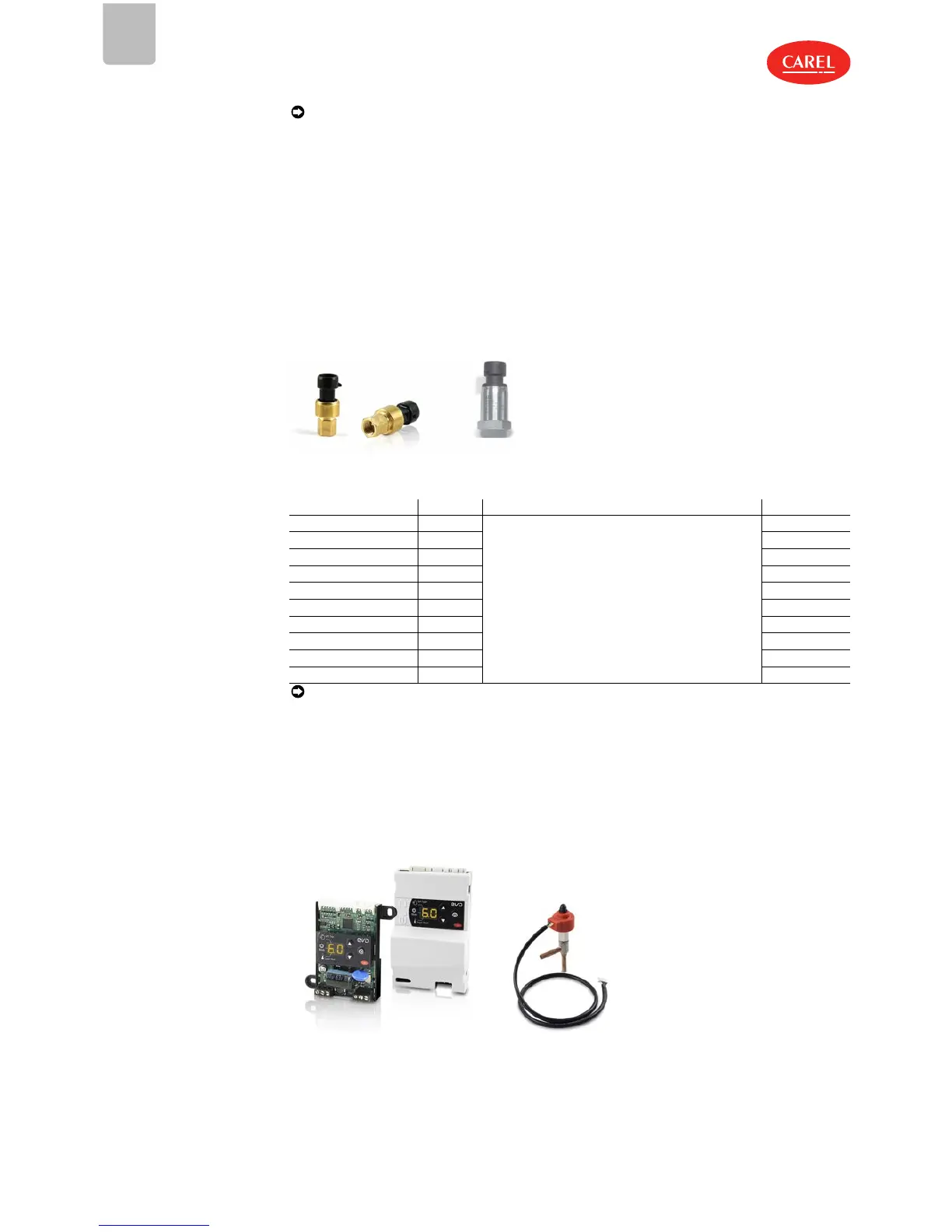

1.2.2 Pressure sensors
To measure the saturated evaporation temperature, different types of probes can be used, in particular
(parameter /P2) the following:
l 0-5 V ratiometric pressure probe (recommended by CAREL);
l 4-20 mA active pressure probes.
Fig.1.e
P/N Type Description Range
SPKT0013R0 0-5V
Evaporation pressure probe
-1 to 9.3
SPKT0053R0 0-5V -1 to 4.2
SPKT0043R0 0-5V 0 to 17.3
SPKT0033R0 0-5V 0 to 34.5
SPKT00B6R0 0-5V 0 to 45.0
SPKT0011S0 0-5V -1 to 9.3
SPKT0041S0 0-5V 0 to 17.3
SPKT0031S0 0-5V 0 to 34.5
SPKT00B1S0 0-5V 0 to 45.0
SPKT00G1S0 0-5V 0 to 60.0
Note: see manual +040010025 (ITA- ENG) /+040010026 (FRE-GER) for guidelines on installing the
sensors on the unit.
Electronic expansion valve driver
The medium version can control an external driver (EVDmini, EVDice) to drive a unipolar electronic
expansion valve, connected to the Fieldbus serial port (J5 FBus).
See manuals +0300036EN, +0300038EN.
Fig.1.f
10|1. Introduction
MPXone +0300086EN rel. 1.0– 04.09.2018
