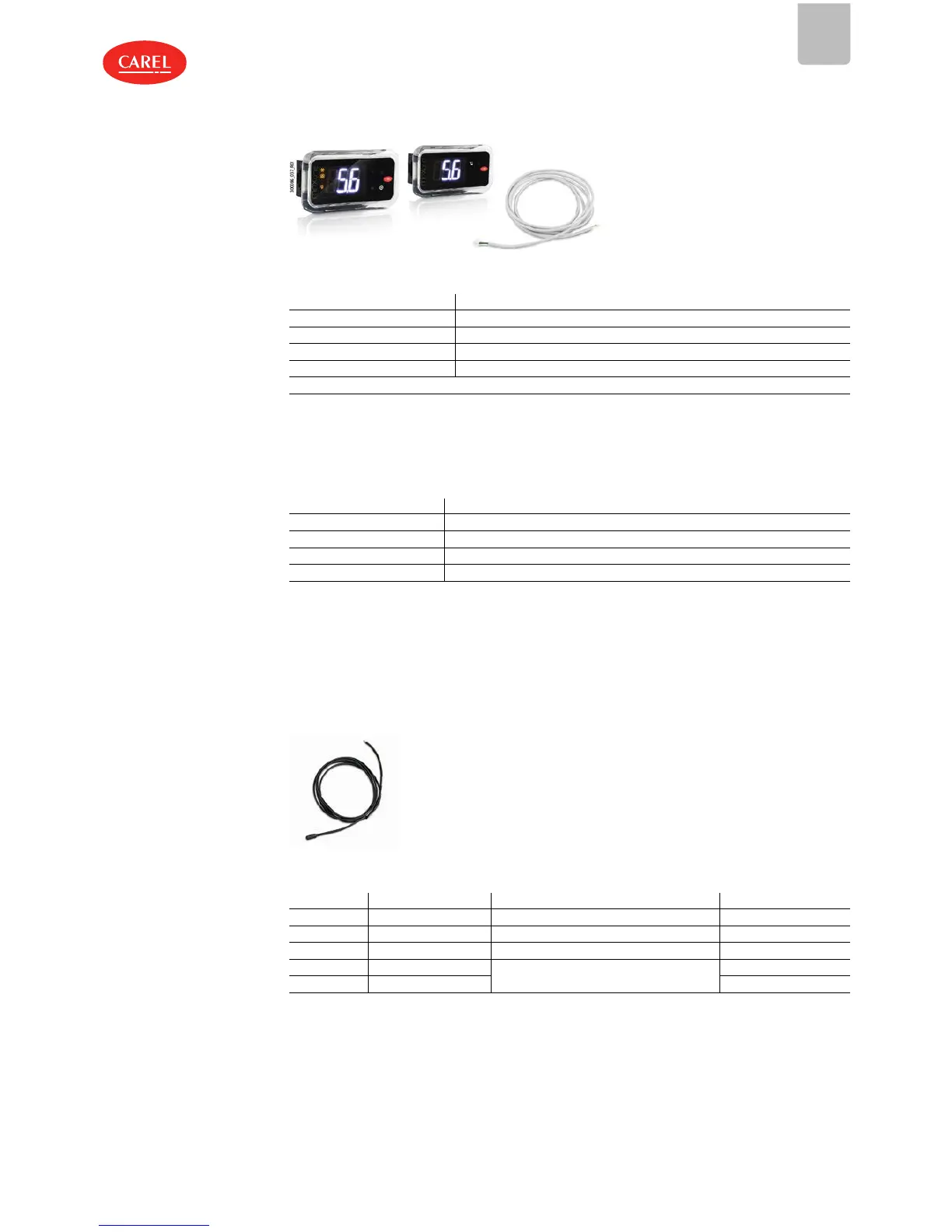

Fig.1.c
P/N Description
AX3000PS2002(0/1)(*) User terminal, NFC, 4 buttons, buzzer
AX3000PS2003(0/1)(*) User terminal, NFC+BLE, 4 buttons, buzzer
AX3000PS20X1(0/1)(*) Remote display
ACS00CB000010 User terminal cable - 3 m long
(0/1)(*): single/multiple pack (20 pcs.)
Tab.1.b
Cable and connector kit
Controllers in multiple packs are supplied without connectors. Depending on the version of the
controller, see the table below.
P/N Description
ACS00CK001301 Connector kit for Basic controller (10 pcs.)
ACS00CK001401 Connector kit for Medium controller (10 pcs.)
ACS00CB000230 Kit of 10 coloured cables with lugs, 1 m (J2)
ACS00CB000330 Kit of 8 coloured cables with lugs, 3 m (J3)
1.2.1 Temperature sensors
The temperature probe must be installed close to the evaporator outlet, according to the usual
installation procedures (see the E2V technical leaflet). Suitable thermal insulation of the probes is
recommended.
CAREL supplies probes designed to simplify installation in contact with the refrigerant piping:
Fig.1.d
P/N Type Description Range
NTC060HP00 10 kΩ ±1% @25°C, IP67 Cabinet ambient temperature probe -50 to 50 °C (105°C in air)
NTC***HF01 10 kΩ ±1% @25°C, IP67 Evaporator outlet temperature probe -50 to 90°C strap-on
NTC060WG00 Glass temperature probe
D PWC111000 4-20 mA
Ambient temperature and humidity probe
DPWC115000 0 to 10 Vdc
