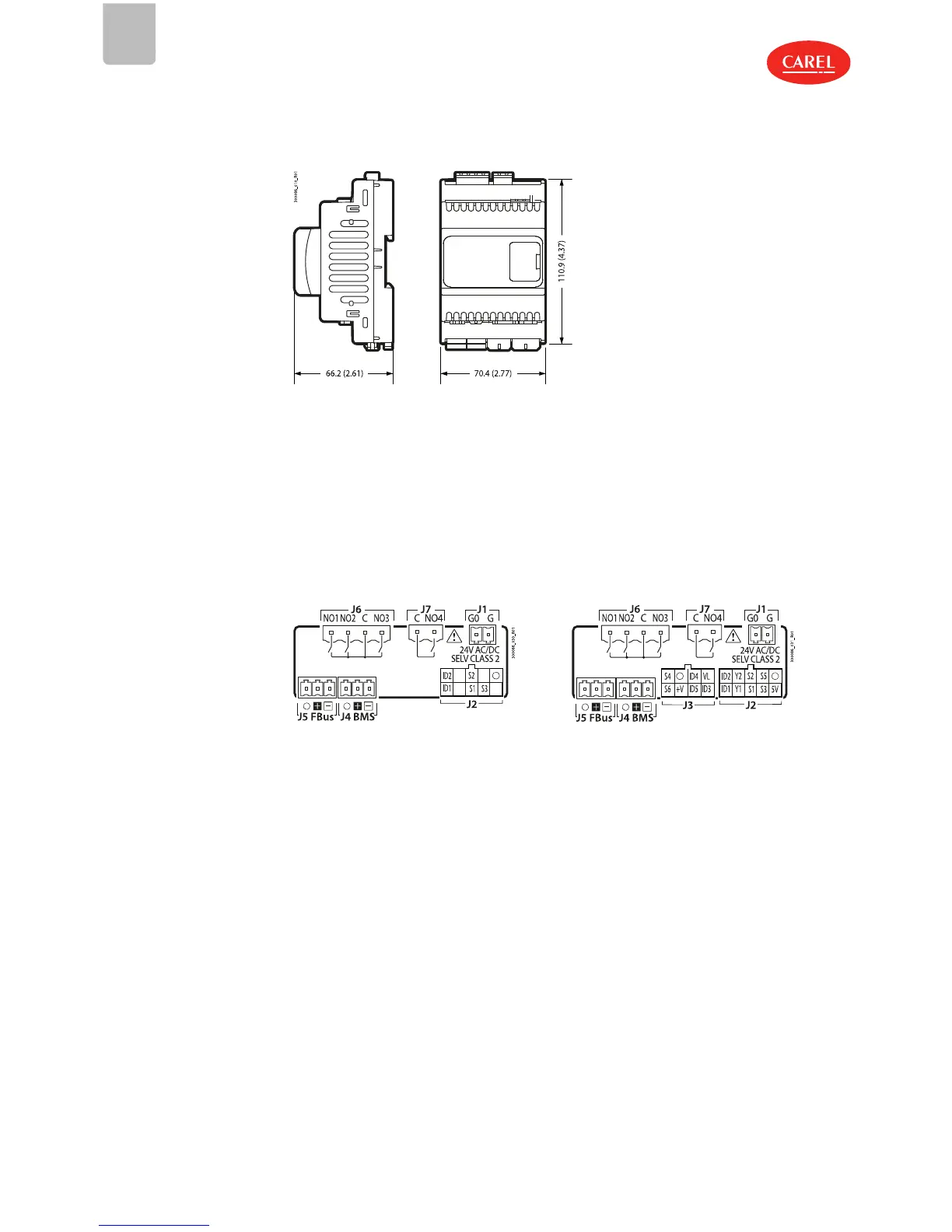

2.3.1 Dimensions – mm(in)
Fig.2.e
2.3.2 Mounting
Apply slight pressure to the controller resting on the DIN rail until the rear tab clicks into place.
2.3.3 Removal
Use a screwdriver as a lever in the hole to lift and release the tab. The tab is held in the locked position
by return springs.
2.4
Description of
the terminals
Panel model
basic
Fig.2.f
medium
Fig.2.g
14|2. Installation
MPXone +0300086EN rel. 1.0– 04.09.2018
