l Master gateway to supervisor for all Slaves;
l HACCP alarm management.

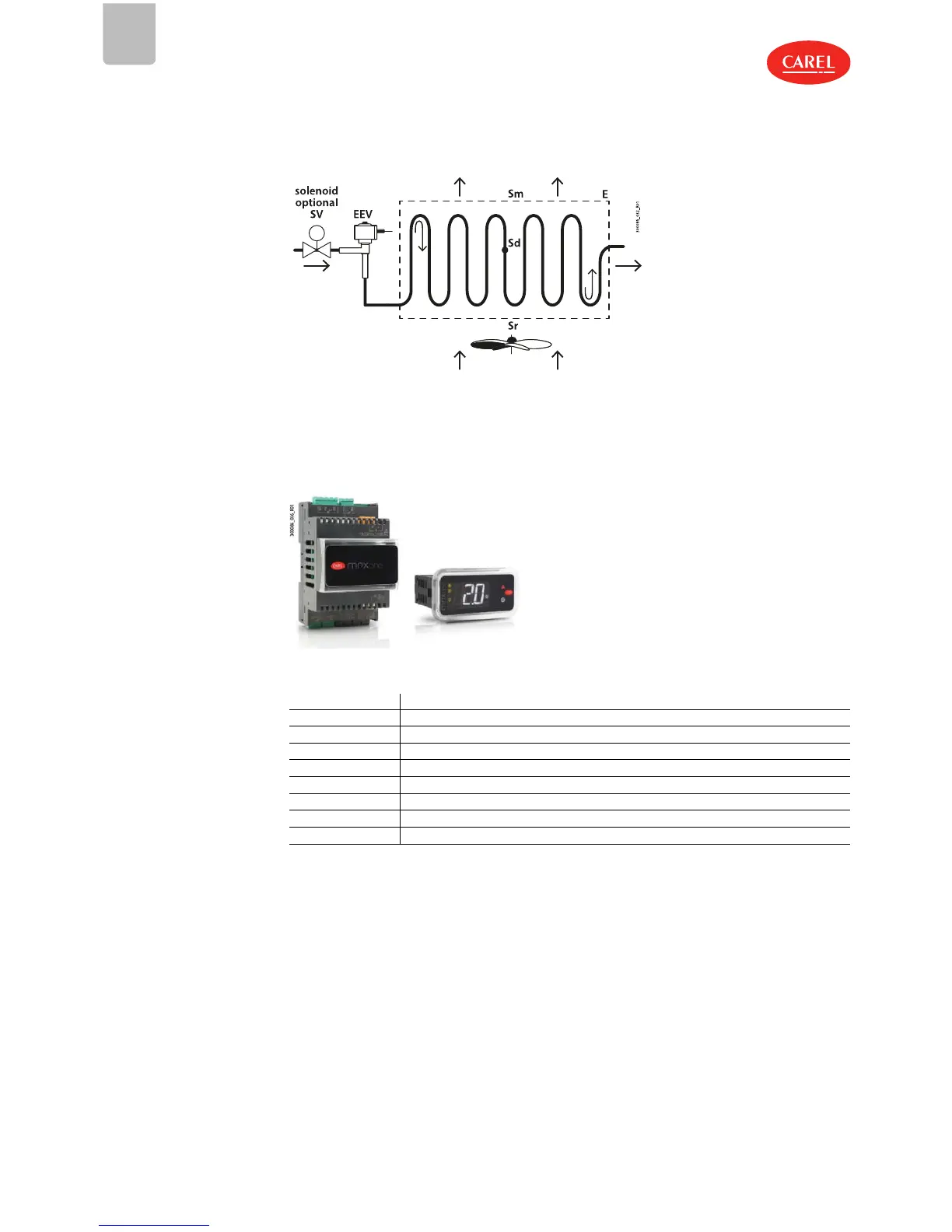

Example of operation with one evaporator on a vertical showcase:
EEV
Electronic expansion
valve
SV Solenoid valve
Sm Outlet probe (air off)
Sr Intake probe (air on)
Sd Defrost probe
E Evaporator
Fig.1.a
1.2
Models and
accessories
The single-pack versions come with connector kits, while the multiple pack versions are supplied without
connectors. The table below shows the list of part numbers and distinctive features for the basic and
medium versions.
Fig.1.b
P/N Description
S1M0004W0B060 Basic panel 24V, NFC, with connectors, single pack
S1M0004W00061 Basic panel 24V, NFC, without connectors, multiple pack (20 pcs.)
S1M0006W0B070 24V panel medium, NFC, with connectors, single pack
S1M0006W00071 24V panel medium, NFC, without connectors, multiple pack (20 pcs.)
S1M0006B0B080 Medium panel 24V, NFC+BLE, with connectors, single pack
S1M0006B00081 24V panel medium, NFC+BLE, without connectors, multiple pack (20 pcs.)
S1M0007N0B110 DIN Medium, 115/230V, with connectors, single package
S1M0007N00111 DIN Medium, 115/230V, without connectors, multiple pack (10 pcs.)
Tab.1.a
User terminal and remote display
l The user terminal is available for DIN rail mounted models (it is built-in on the panel model). The user
terminal includes the display and keypad, comprising four buttons that, when pressed alone or
combined with other buttons, are used to display and set the controller’s parameters (see “User
interface”). Connectivity - NFC or NFC + Bluetooth (BLE) based on the model - allows interaction with
mobile devices and simplifies unit commissioning (after having installed the CAREL “Applica” APP for
the Android operating system
l The remote display can be connected as an accessory on both the panel model and the DIN rail
model. This is a display only, used to show alarms and one selected temperature value, with the
corresponding unit of measure, °C or °F.
See the chap. “Installation” in the technical leaflet +0500142IE.
8|1. Introduction
MPXone +0300086EN rel. 1.0– 04.09.2018
