Carel MPXone series User Manual

ENG
smartphone, with BLE connection, using the specific function on the alarm page ("Service" level access is
required).
Note: deletion of the alarm log is irreversible.
8.3 Display
alarm log
The alarm log can only be viewed via the supervisor or APP with BLE connection.

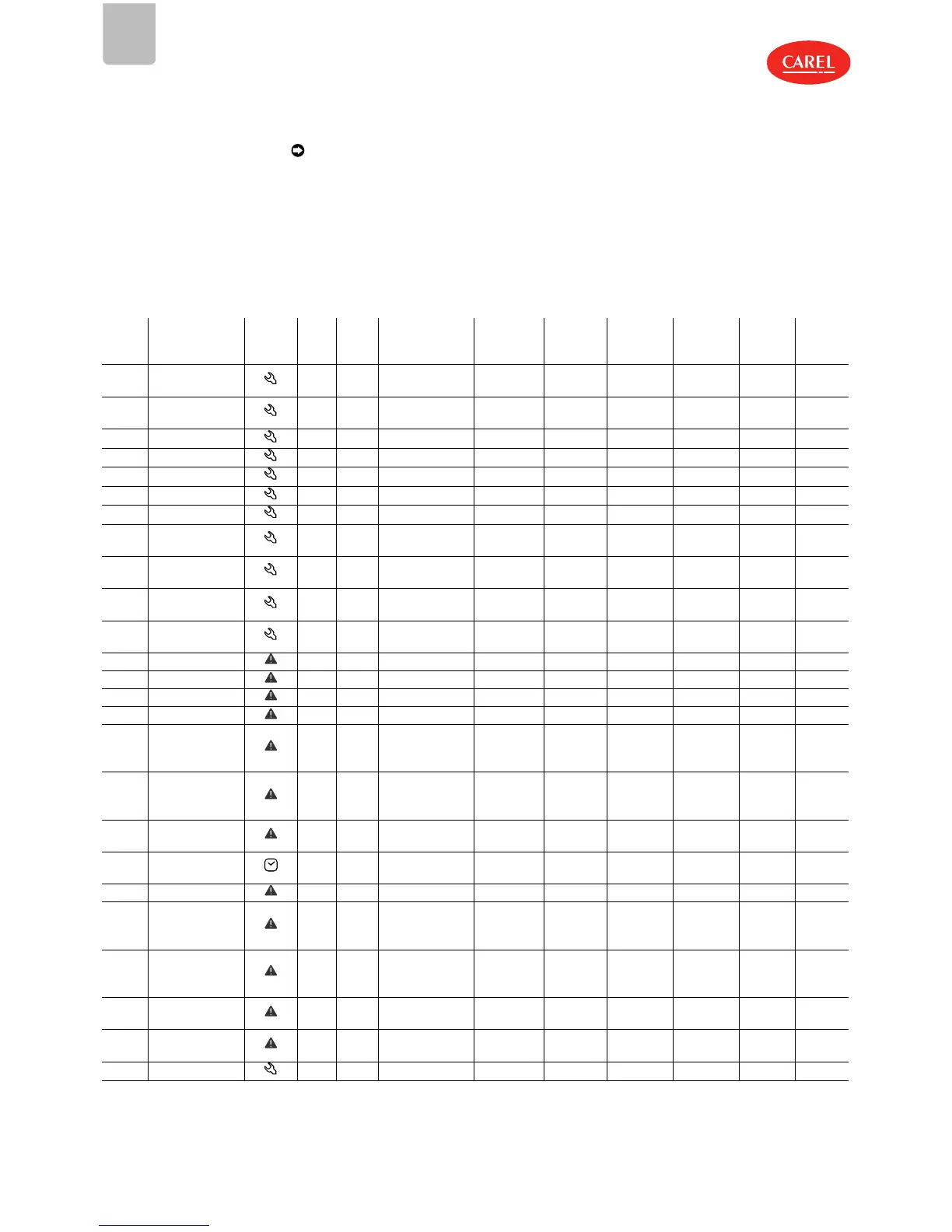

8.4 Alarm table
Display
code
Description
Display
icon
flashing
Alarm
relay
Buzzer Reset Compressor Defrost
Evaporator
fans
Continuous
cycle
Signalled
to LAN
Network
solenoid
valve
rE Control probe ON ON automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
E1 Probe S1 OFF OFF automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
E2 Probe S2 OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
E3 Probe S3 OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
E4 Probe S4 OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
E5 Probe S5 OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
E6 Probe S6 OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
E11
Serial probe S11
not updated
OFF OFF automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
E12
Serial probe S12
not updated
OFF OFF automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
E13
Serial probe S13
not updated
OFF OFF automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
E14
Serial probe S14
not updated
OFF OFF automatic
duty setting
(c4)
unchanged unchanged unchanged YES NO
LO Low temperature ON ON automatic unchanged unchanged unchanged unchanged YES NO
HI High temperature ON ON automatic unchanged unchanged unchanged unchanged YES NO
LO2 Low temperature ON ON automatic unchanged unchanged unchanged unchanged YES NO
HI2 High temperature ON ON automatic unchanged unchanged unchanged unchanged YES NO
IA
Immediate alarm
from external
contact
ON ON automatic
duty setting
(A6)
unchanged unchanged unchanged YES NO
dA
Delayed alarm
from external
contact
ON ON automatic
duty setting
(A6) if A7≠0
unchanged unchanged unchanged YES NO
dor
Door open for too
long
ON ON automatic unchanged unchanged unchanged unchanged YES NO
Etc
Real time clock not
updated
OFF OFF automatic unchanged unchanged unchanged unchanged YES NO
LSH Low superheat OFF OFF automatic OFF unchanged unchanged unchanged YES YES
LSA
Low suction
temperature
OFF OFF automatic/manual
OFF
(paragraph
6.10)
unchanged unchanged unchanged YES YES
MOP
Maximum
evaporation
pressure
OFF OFF automatic OFF unchanged unchanged unchanged YES YES
LOP
Low evaporation
temperature
OFF OFF automatic unchanged unchanged unchanged unchanged YES YES
bLo Valve blocked OFF OFF
manual/disabled
when P14=0
unchanged unchanged unchanged unchanged YES NO
Edc
Communication
ON ON automatic unchanged unchanged unchanged unchanged YES NO
100|8. Alarms and signals
MPXone +0300086EN rel. 1.0– 04.09.2018
