Carel pCO User Guide

Display LCD 4x20 montaggio a pannello (PCOI000CB*)
Caratteristiche:
• numero righe: 4
• numero colonne: 20
• altezza carattere: 5 mm
È disponibile inoltre:
• Versione con LCD retroilluminato
(PCOI000CBB)
Display LCD grafico montaggio a pannello (PCOI00PGL0)
Caratteristiche
• LCD: 240x128 pixel, grafico,
retroilluminato
• righe: 16
• colonne: 30
4x20 LCD for panel-mounting (PCOI000CB*)
Features:
• number of rows: 4
• number of columns: 20
• font height: 5mm
Other features available:
• Version with back-lit LCD
(PCOI000CBB)
Graphic LCD for panel-mounting (PCOI00PGL0)
Features
• LCD: 240x128 pixels, graphic, back-lit
• rows: 16
• columns: 30
9

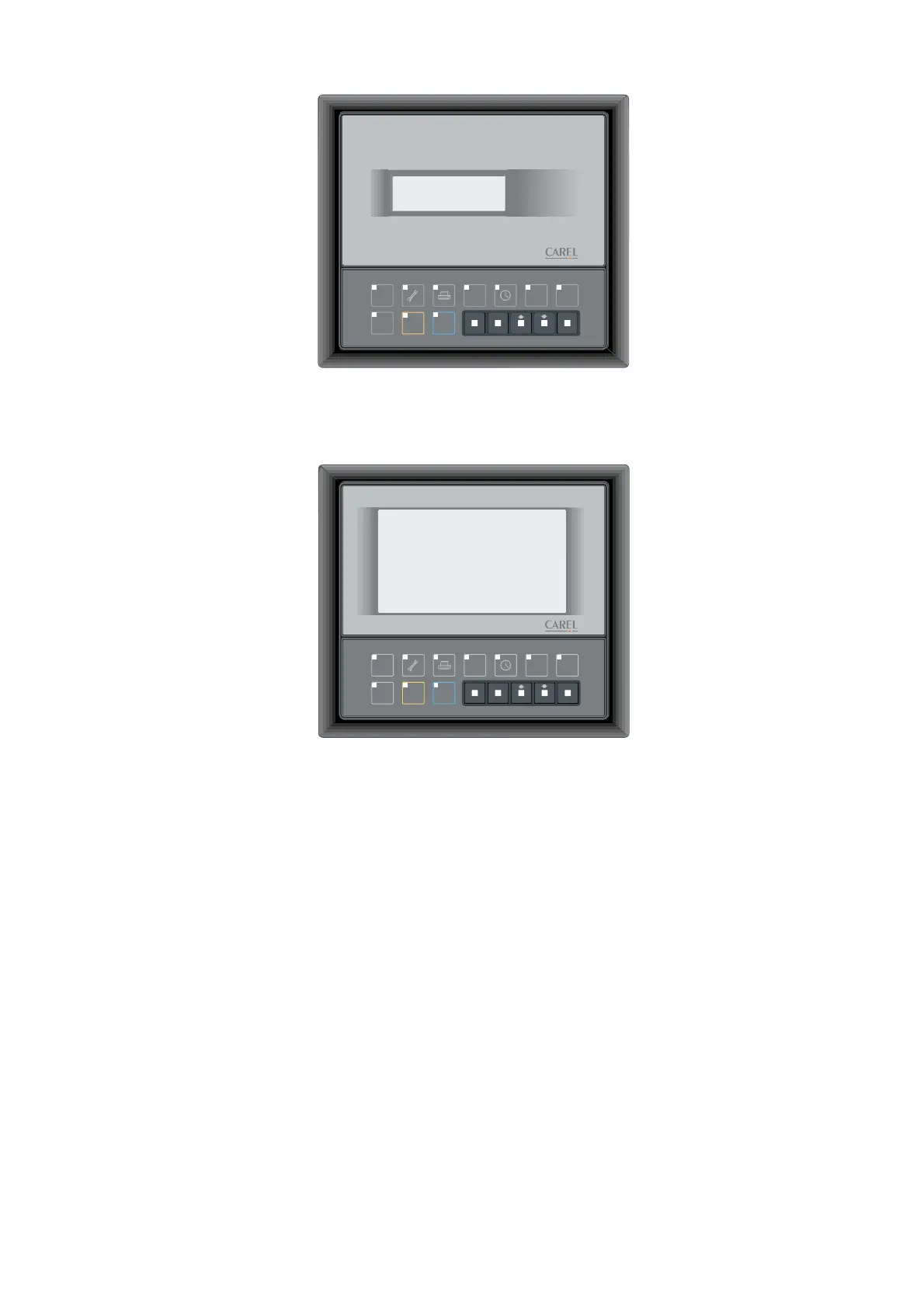

on/off alarm enter
pCO Terminal
menu I/O set prog.
?
info
Fig. 7
menu I/O set prog.
?
info
on/off alarm enter
pCO Graphic
Fig. 8

Carel pCO Specifications

General

Series	pCO
Category	Controller
Enclosure rating	IP20
Protection rating	IP20
Relative humidity	10% to 90% non-condensing
Communication Protocols	Modbus, BACnet
Communication	RS485
Display	LCD
Analog outputs	Up to 2 (depending on model)
Serial ports	1
Programming Language	Proprietary Carel language
Input voltage	12…24 Vac/dc ±10%
Storage temperature	-20°C to +70°C
