Operation and Use
3-8 AF0118 | 2018-03-27

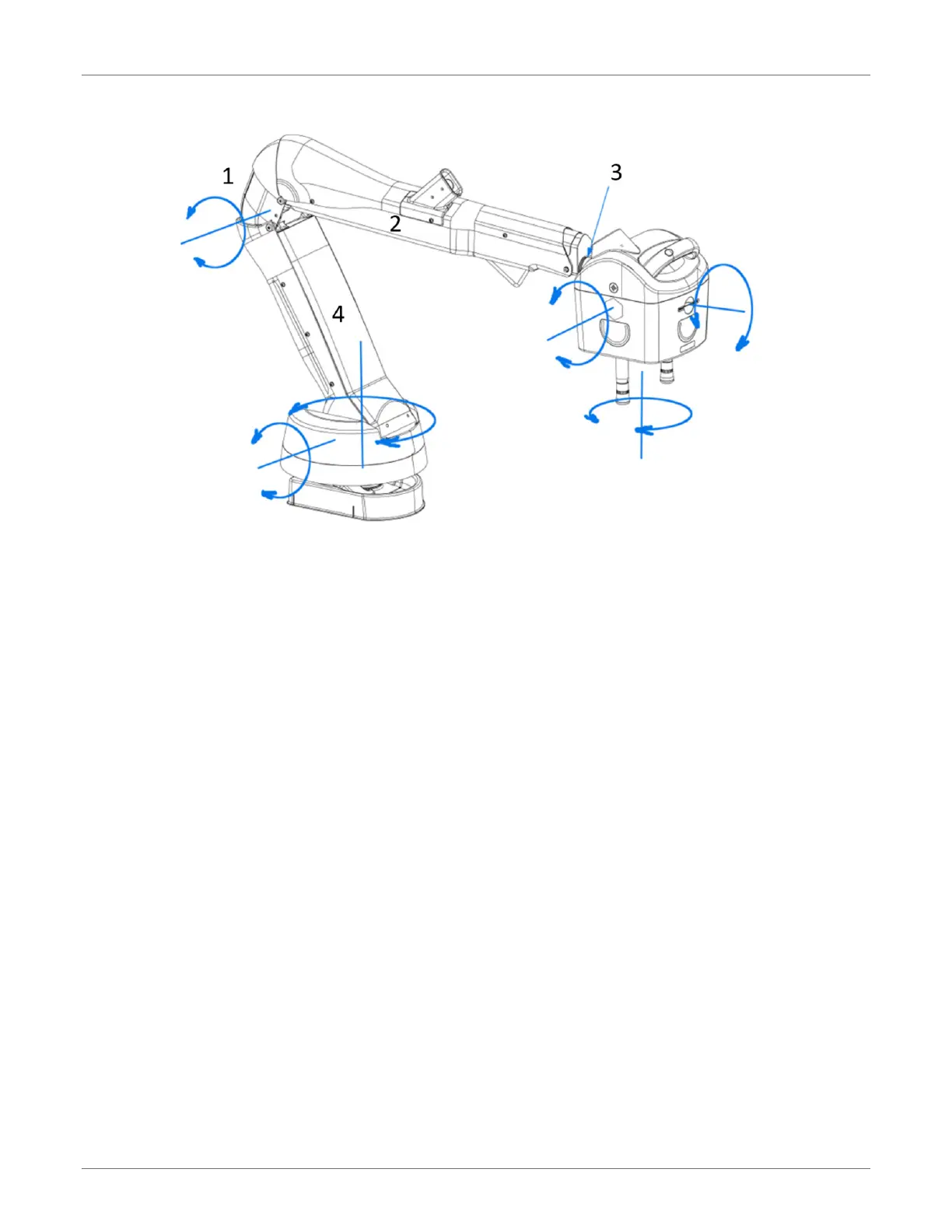

1. Elbow
2. Forearm
3. Wrist
4. Humerus
The arm assembly holds the tube head assembly, collimator, and X-ray tube, and allows
dynamic positioning of the head in multiple axes.
