Carestream DRX-Revolution - Arm and Tube Head Assembly

Operation and Use
AF0118 | 2018-03-27 3-7

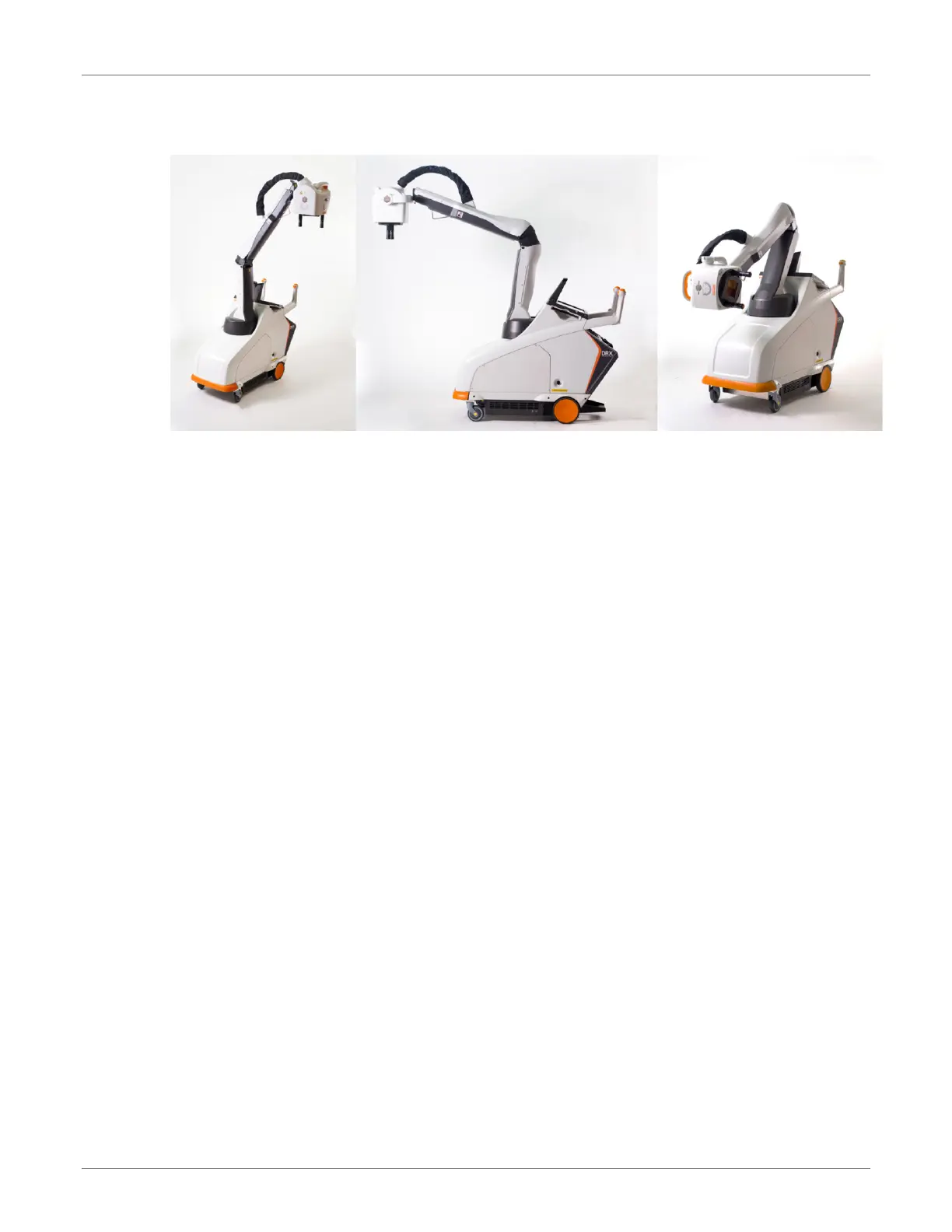

Arm and Tube Head Assembly
The arm assembly is a spring and gas damper counterbalanced manual four-bar linkage
assembly, allowing the head to be positioned with zero-gravity stability for patient
treatment, without the need for electromechanical braking, and without overloading
the operator.
