BT2 user manual - H-5911-9004-02-B Page | 48

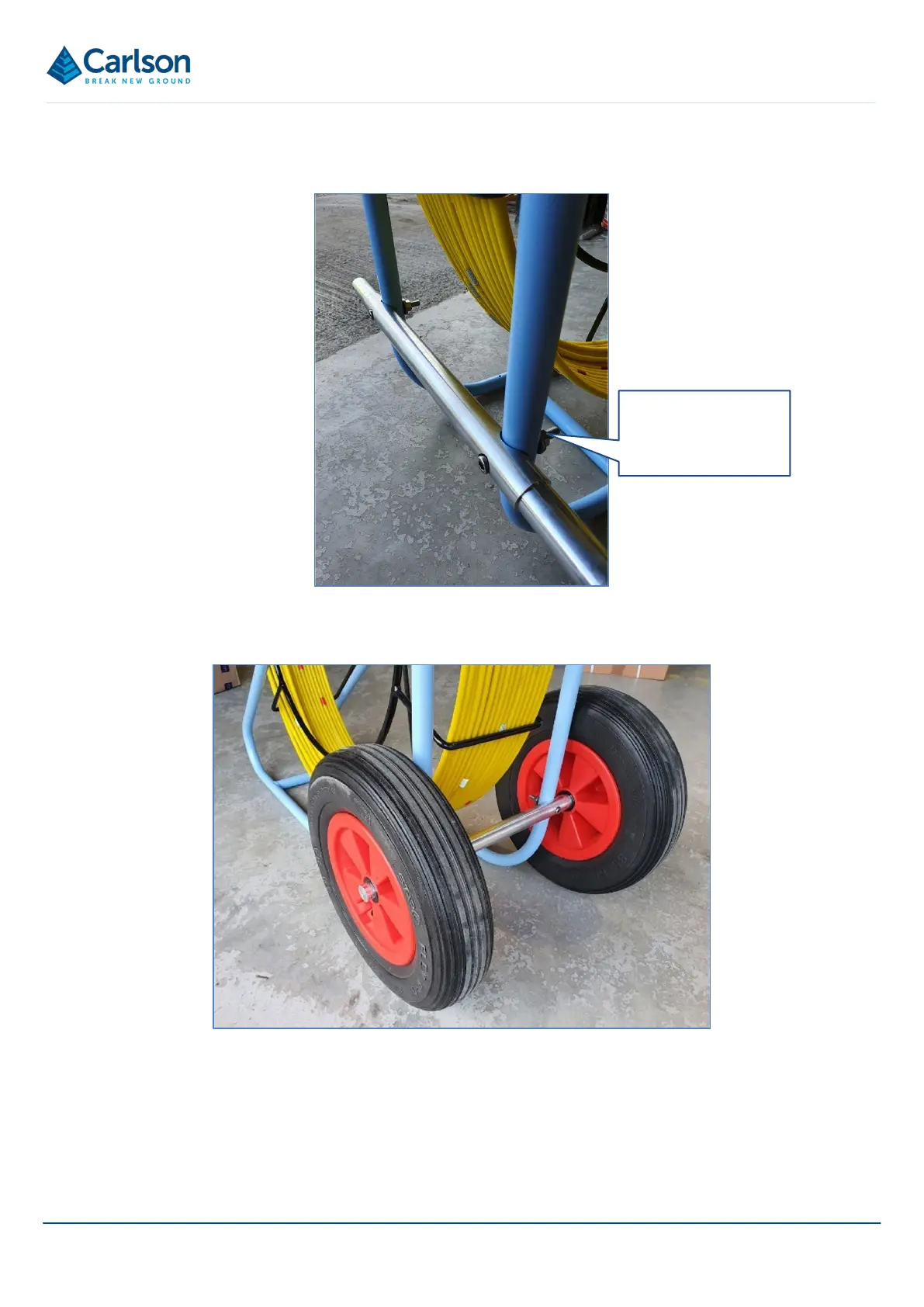

Insert a M8 x 45 mm screw through both holes in the wheel axle. Secure the axle to the frame with a nut and washer.
Tighten the screw with a 6 mm hex key.
Slide a rubber wheel onto each side of the axle.
Wheel axle secured
with two M8 x 45 mm
bolt, nut and washer
sets
Figure 54 Assembling the push rod system - step 3
Figure 55 Assembling the push rod system - step 4
