12.1.1 Background colour
The background colour is black by default. Change the background colour in the Settings window (see section
11.3.6).
12.1.2 Boretrak2 model
A model of the Boretrak2 is shown on screen. Once the gyro has been aligned, the internal sensors allow the model
to be correctly orientated in real-time, showing the heading and inclination of the probe. As the Boretrak2’s LEDs
change colour, this is also reflected in the 3D View.
12.1.3 Holes
Holes represent hole collars which have been positioned with surveyed coordinates or with arbitrary coordinates
generated within Carlson Boretrak. In the 3D View, the location of these coordinates is marked by a Hole graphic.

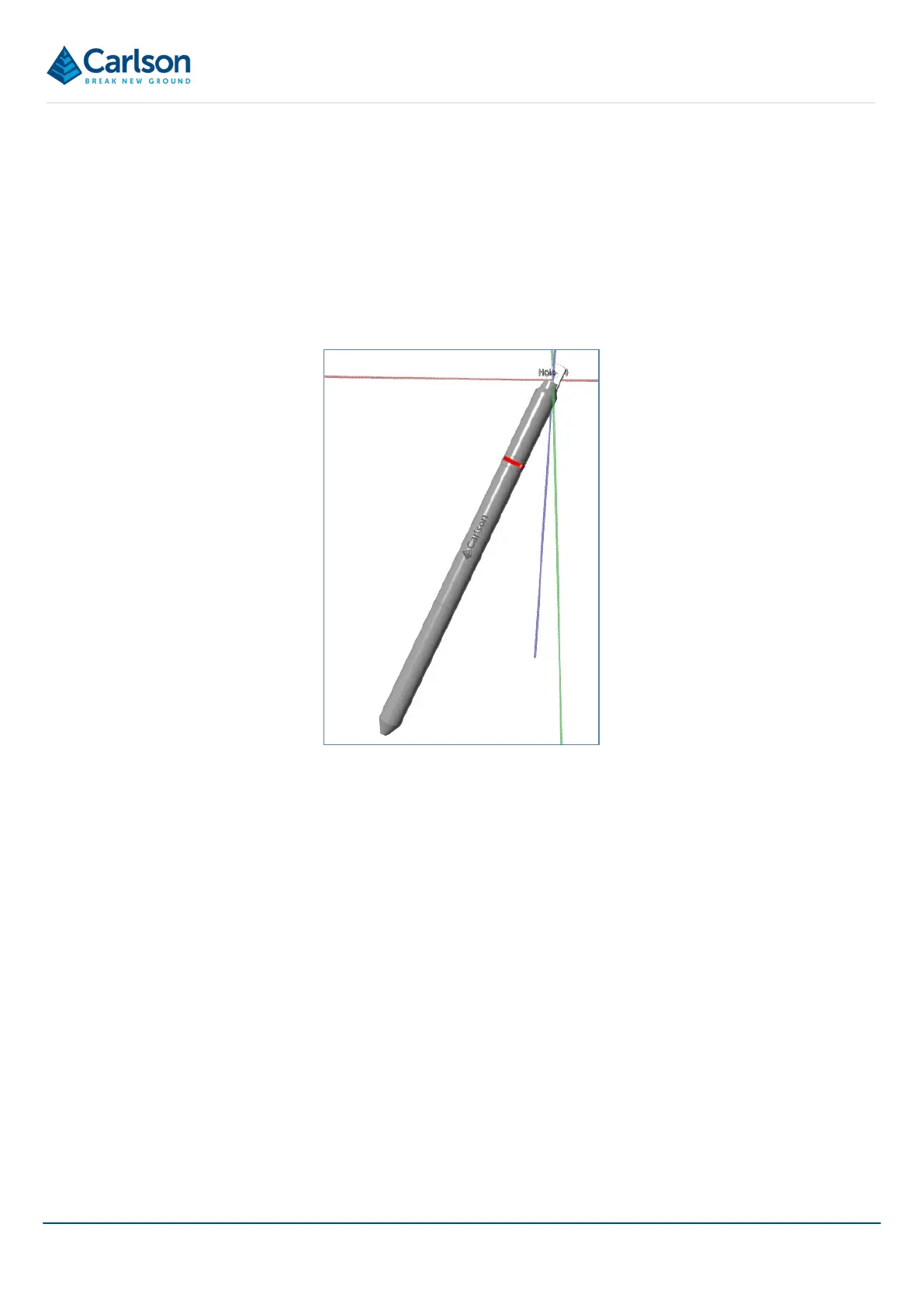

Figure 90 Boretrak2 model
