COMPRESSOR CONFIGURATION INPUT
The smart controller is configurable for all 06D, 06E, and
06M compressor models by simply adjusting the onboard
DIP switches. The DIP switches configure the compressor
for Low or Medium/High temperature application and set
the compressor’s capacity modulation range profile. See
Section 6.4 for configuration details. Controller power must
be cycled off/on if the configuration switches are changed
during system operation for that change to take effect.

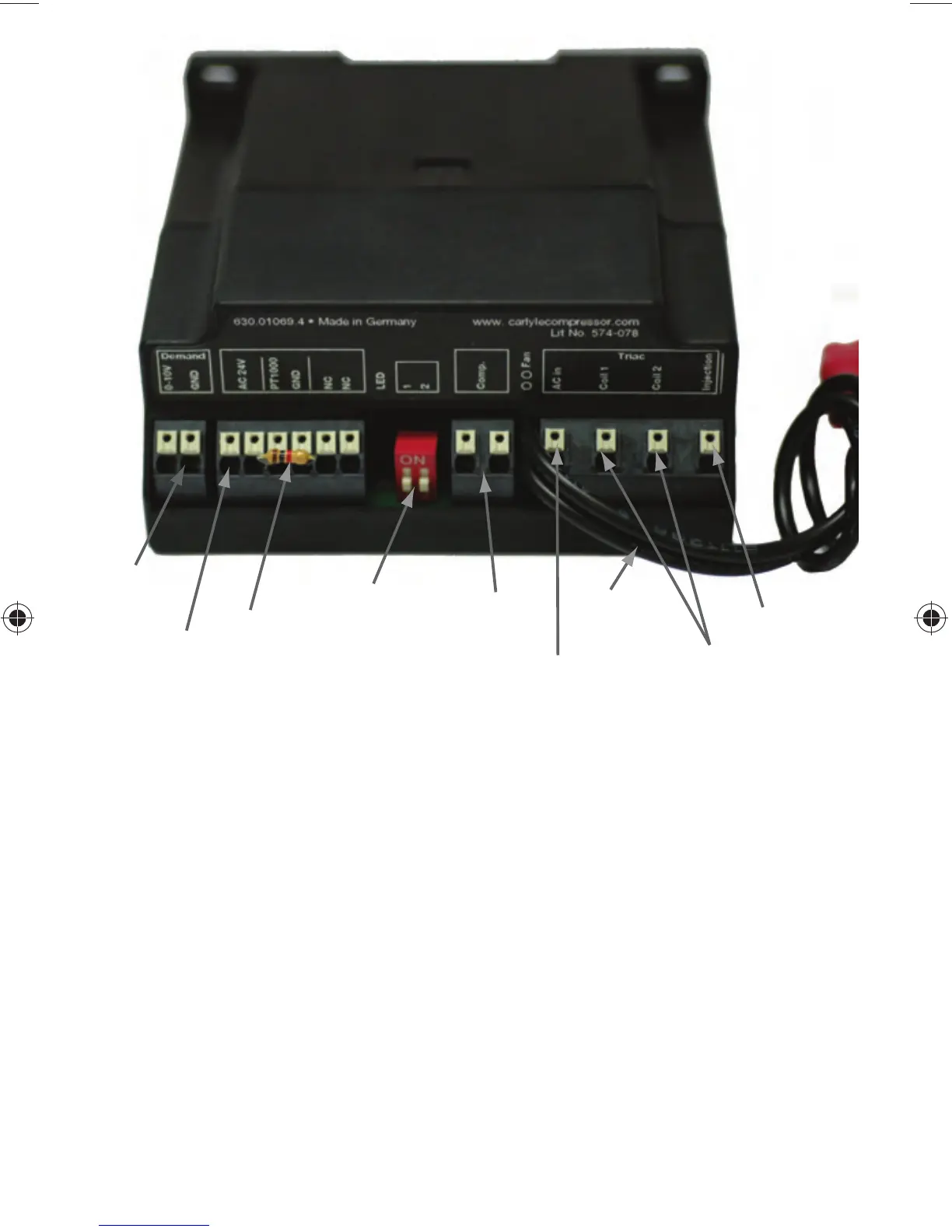

Fig. 33 — Smart Controller
Controller
Input
Signal
Power
Supply
Input
Discharge
Temperature
Sensor
Input
Compressor
Configuration
Input
(Low, Medium,
High Temp)
Liquid
Injection
Output
Unloader
Coil
Output
Cylinder Head
Fan Lead Wire
(208-230/460v)
AC In
(115/208-230V)
Compressor
Start
Circuit
