Carlyle 06E - Exploded View - 6-Cylinder 06 D Compressor

56
Complete parts break- down shown for refer- ence only. Some parts may be pictured prior to design changes and not all parts are available as replacements.

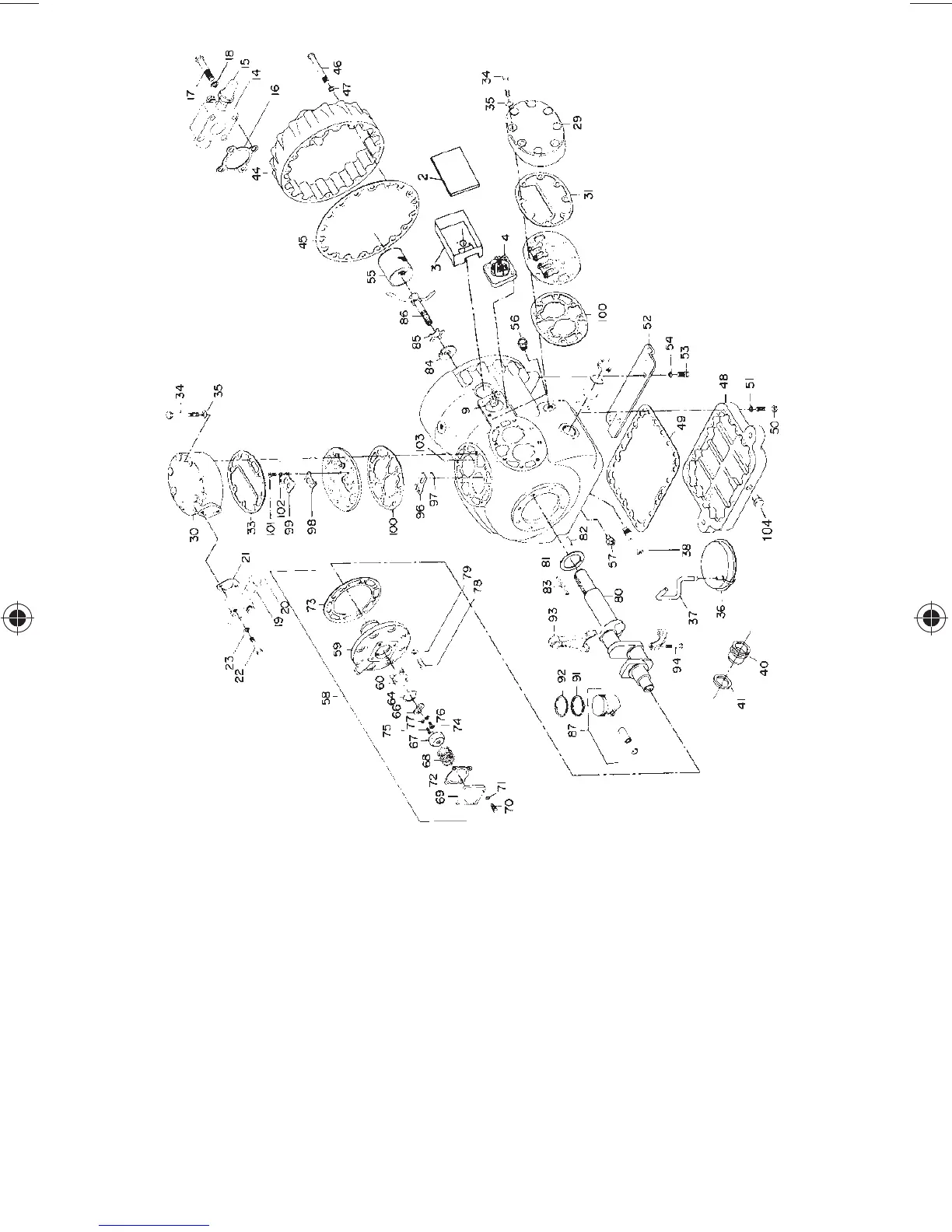

2.8 — Exploded View - 6-Cylinder 06D Compressor
LEGEND
2—Terminal Box Cover 3—Terminal Box 4—Terminal Plate Assembly 9—Grommet (for power leads) 14 — Suction Service Valve 15 — Suction Service Valve Seal
Cap
16 — Suction Service Valve Gasket 17 — Suction Service Valve Bolt 18 — Suction Service Valve Bolt
Washer
19 — Discharge Service Valve 20 — Discharge Service Valve Seal
Cap
21 — Discharge Service Valve Gas-
ket
22 — Discharge Service Valve Bolt 23 — Discharge Service Valve Bolt
Washer
29 — Standard Side Bank Cylinder
Head
