147

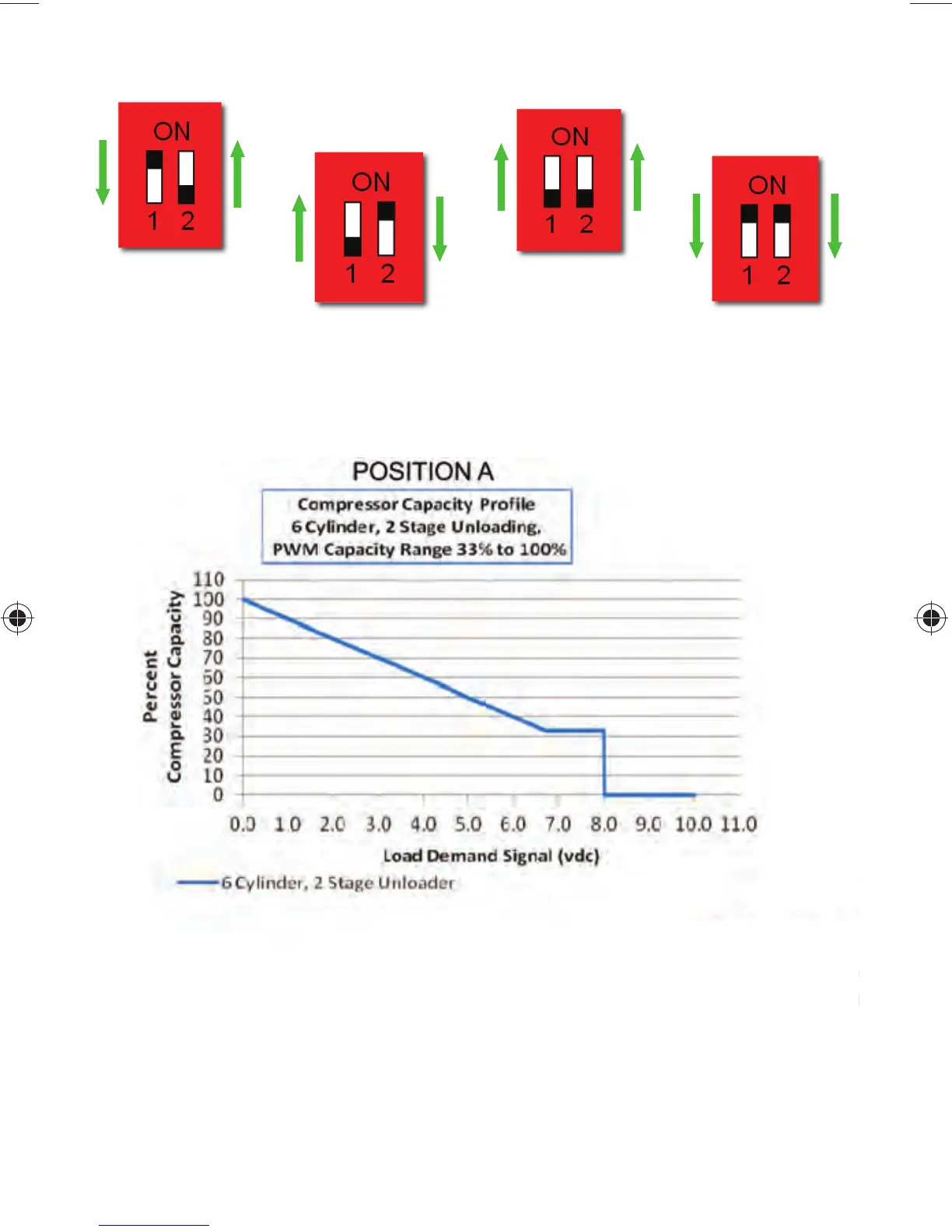

Fig. 34 — Smart Controller Configuration (DIP
Switches)
Position A
Position C
1 stage of Unloading
67-100%
PWM Valve 20-100%
1 stage of Unloading 50-100%
No Capacity Modulation
Compressor Monitoring
and Protection only
2 stages of Unloading
33
- 100%
Position B Position D
Fig. 35 — Smart Controller Configuration (DIP
Switches), Compressor Capacity
