4. Next, install the sensor block (P/N 06EA507202) over
the gasket and the 1/4" NPT O-ring seal fitting as shown.
Mount the sensor block to the bearing head using the
four 5/16"-18 x 1-1/4" Allen head bolts provided in the
kit (Torque to 15-20 ft/lbs). (Be sure spring and recess
cup are in place).

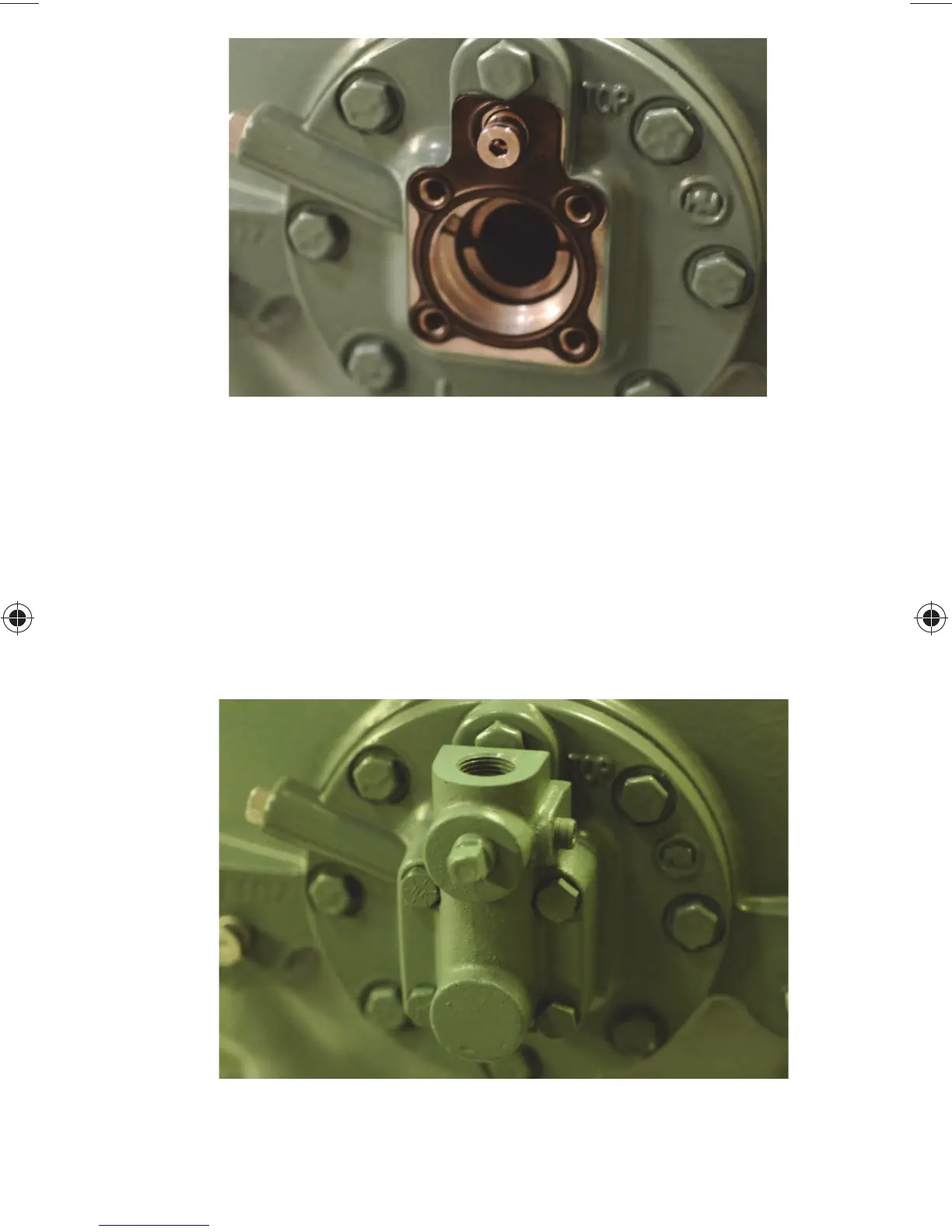

Fig. 18 — OPSS Sensor Block Gasket
Fig. 19 — OPSS Sensor Block Installed
