38MGR-04SM Specifications subject to change without notice. 69

EXV Check

1. Disconnect the connectors.

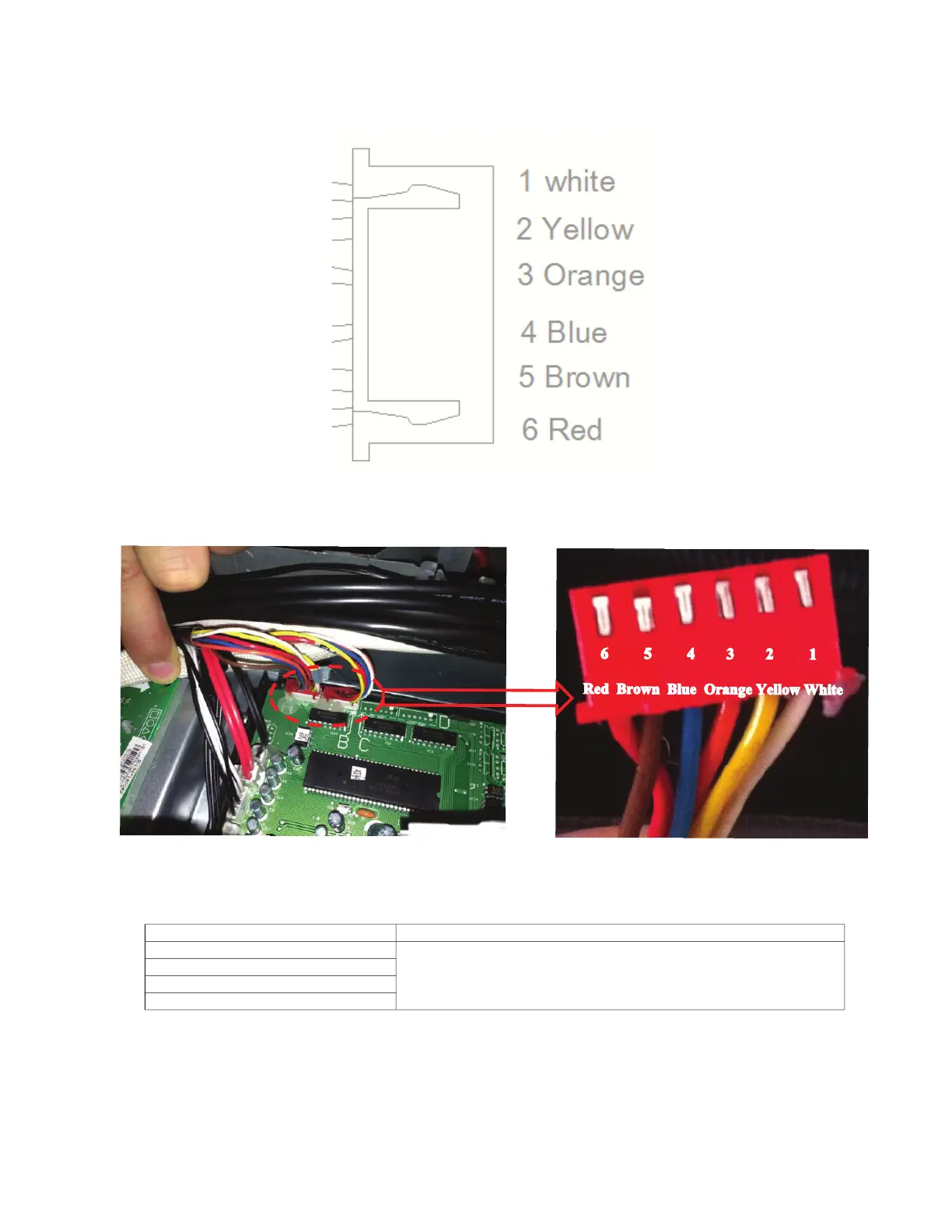

Fig. 73 — Disconnect the connectors

Fig. 74 — Disconnect the connectors

Table 40 — Resistance to EXV Coil

LEAD WIRE COLOR NORMAL VALUE

Red - Blue

About 50Ω

Red - Yellow

Brown - Orange

Brown - White
