Carrier 38MGR Series - DISASSEMBLY INSTRUCTIONS: SIZE 30; Disassembly Steps for Size 30 Unit

38MGR-04SM Specifications subject to change without notice. 89
DISASSEMBLY INSTRUCTIONS SIZE 30
No. Part name Procedures Remarks
1 Panel plate How to remove the panel plate
1) Turn off the air conditioner.
Turn off the power breaker.
2) Remove the big handle
screws.
3) Remove the top cover
screws and then remove the
top cover (4 screws).
4) Remove the right front side
panel screw (1), and then
remove the right front side
panel.

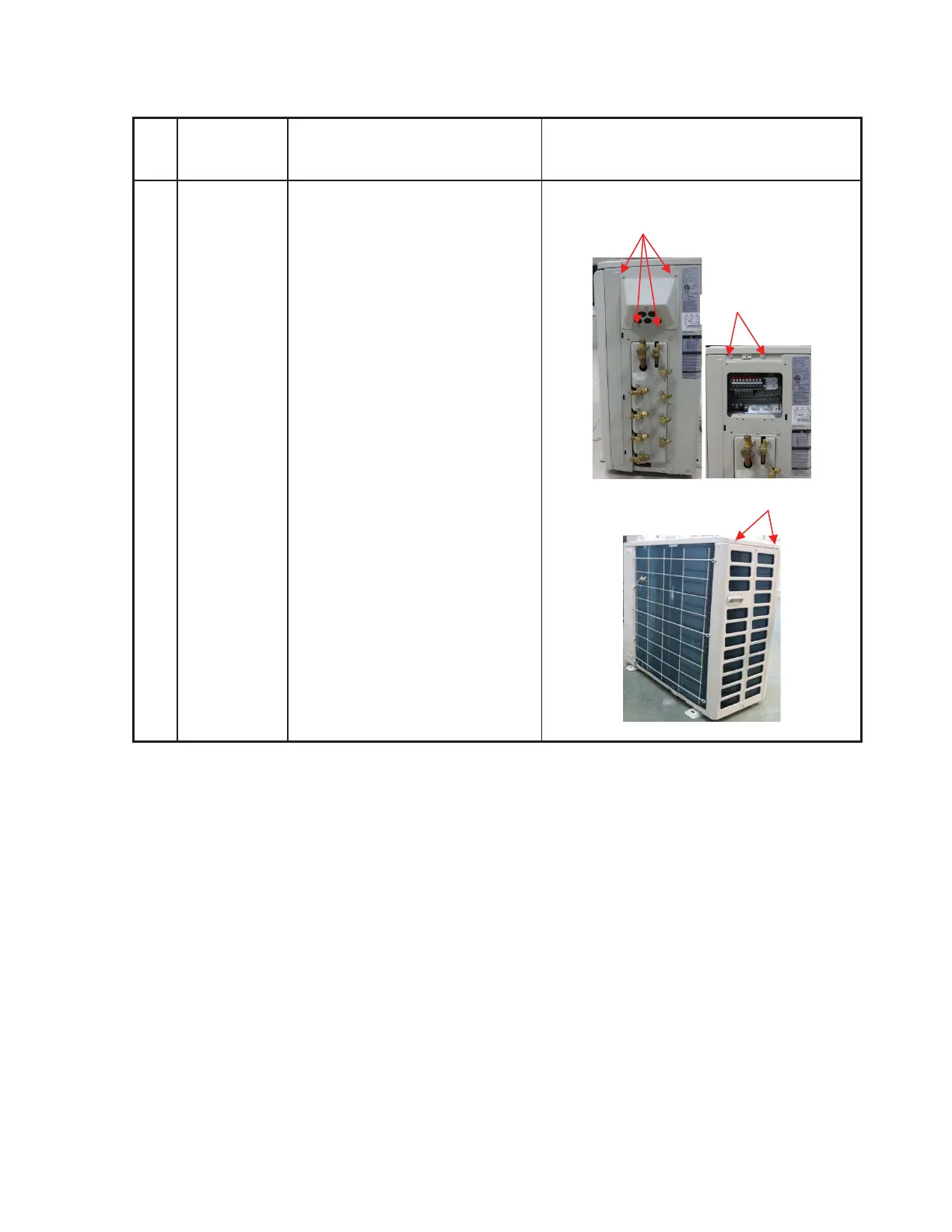

Big handle
screws
Top cover screws
Top cover screws
