Carrier 38MGR Series - DISASSEMBLY INSTRUCTIONS: SIZE 24; Disassembly Steps for Size 24 Unit

80 Specifications subject to change without notice. 38MGR-04SM
DISASSEMBLY INSTRUCTIONS SIZE 24
No. Part name Procedures Remarks
1 Panel plate How to remove the panel plate
1)
2)
3)
4)
5)
Remove the big handle
screws (4), then remove the
big handle.
Remove the top cover screws
and remove the top cover.
Remove the right-front side
panel screw (1) and remove
the right front side panel.
Remove the front panel
screws (8) and remove the
front panel.

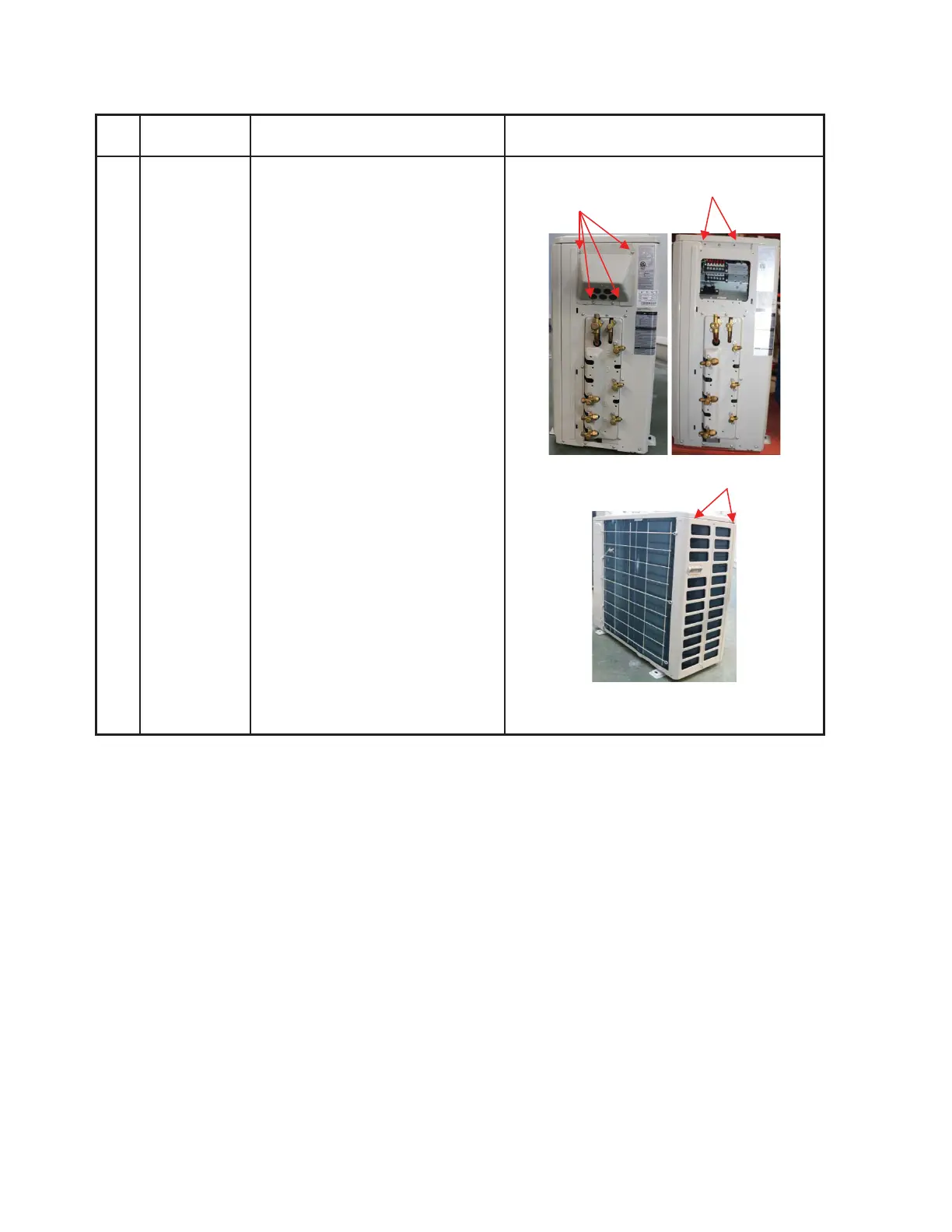

Big handle screws
Top cover screws
Top cover screws
Turn o the air conditioner.
Turn o the power breaker.
