CARRIER COMMUNICATING
NETWORK
PRIMARY BUS (BUS 0)
SYSTEM
SYSTEM ROOFTOP ROOFTOP
PILOT UNIT UNIT
SOFTWARE
BRIDGE
(RECOMMENDED)
SECONDARY BUS VVT ®ZONE CONTROLLER
EQUIPPED AIR TERMINAL
MAXIMUM OF 32 PER ROOFTOP/LINKAGE MASTER
MAXIMUM OF 8 LINKAGE MASTERS PER BUS

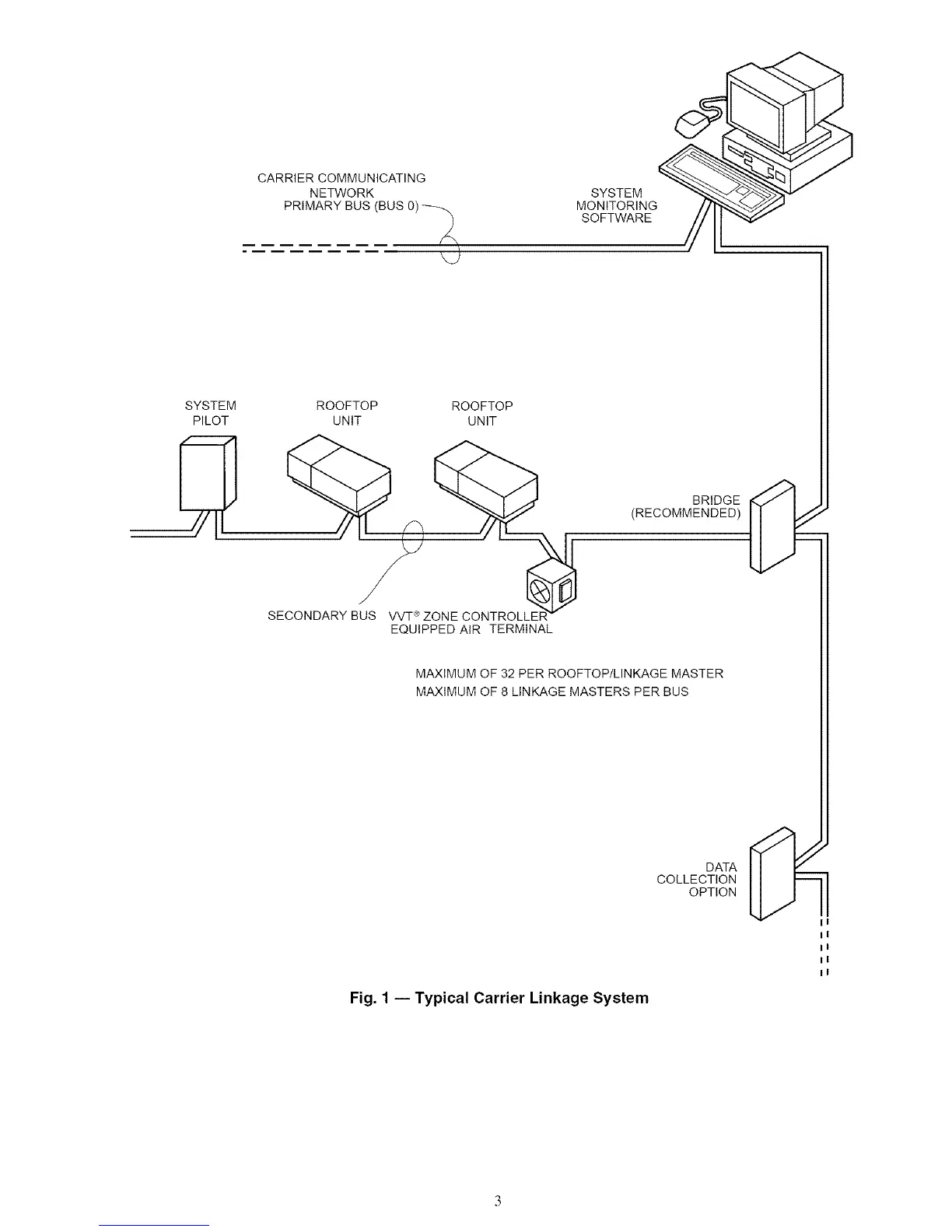

Fig. 1 -- Typical Carrier Linkage System
DATA
COLLECTION
OPTION
