Carrier 40GVM-009 - CLEARANCES - OUTDOOR; Clearances for 38 GVM018, 024, 030; Clearances for 38 GVM036, 042

10

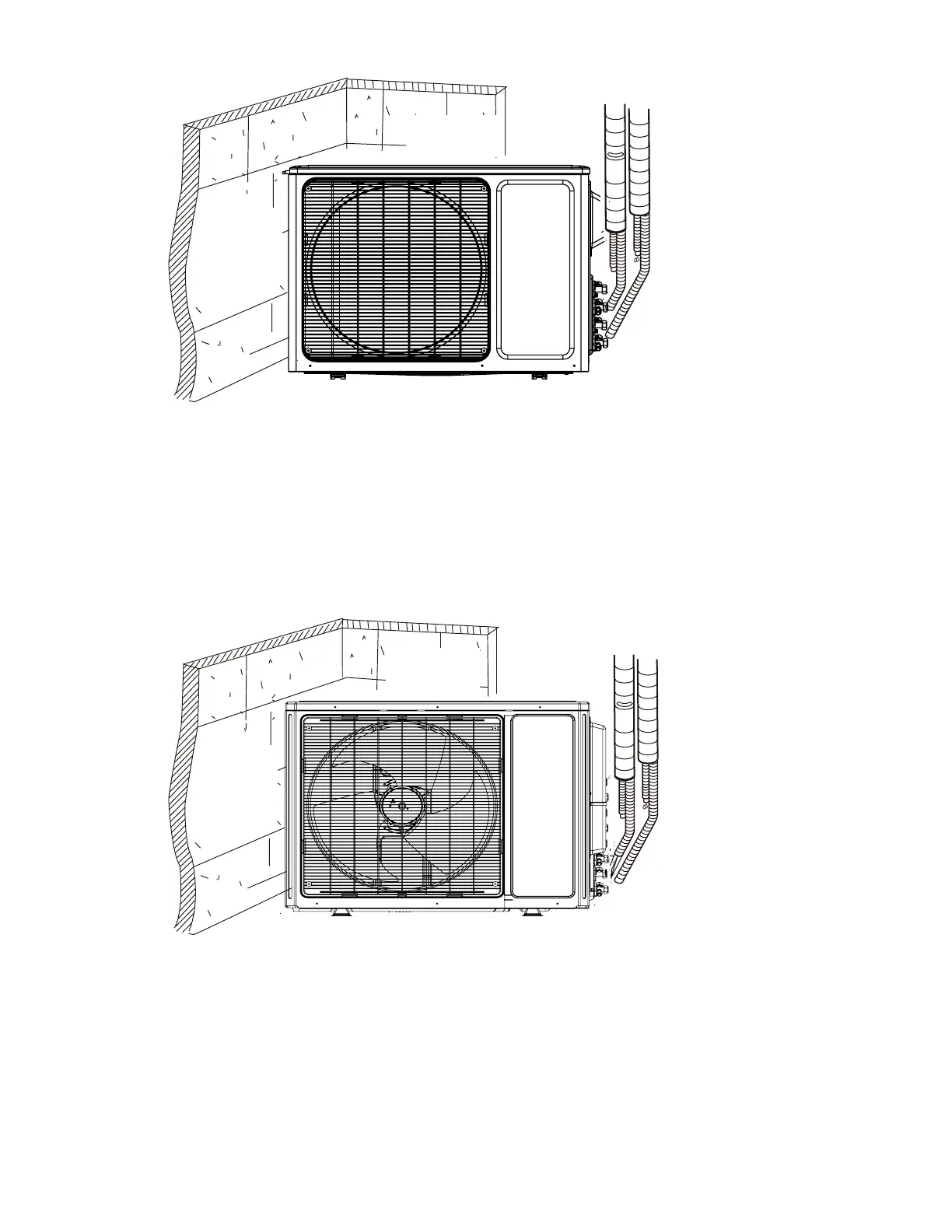

CLEARANCES -- OUTDOOR
11.8 (300)
minimum
distance from
wall
11.8 (300)
minimum space
on air inlet side
24.0 (610)
minimum space
on service valve side
78 (2000)
minimum space
in front of
air outlet
20 (508)
minimum space
above top of unit
Unit: in. (mm)
A112556
Fig. 8 – 38GVM018, 024, 030
19.7 (500)
minimum space
on air inlet side
24.0 (610)
minimum space
on service valve side
78 (2000)
minimum space
in front of
air outlet
40 (1000)
minimum space
above top of unit
Unit: in. (mm)
19.7 (500)
minimum
distance from
wall
A112557
Fig. 9 – 38GVM036, 042
