Carrier 40GVM-009 - REMOVAL PROCEDURE OF OUTDOOR UNIT - 18 K; Remove Condenser

52

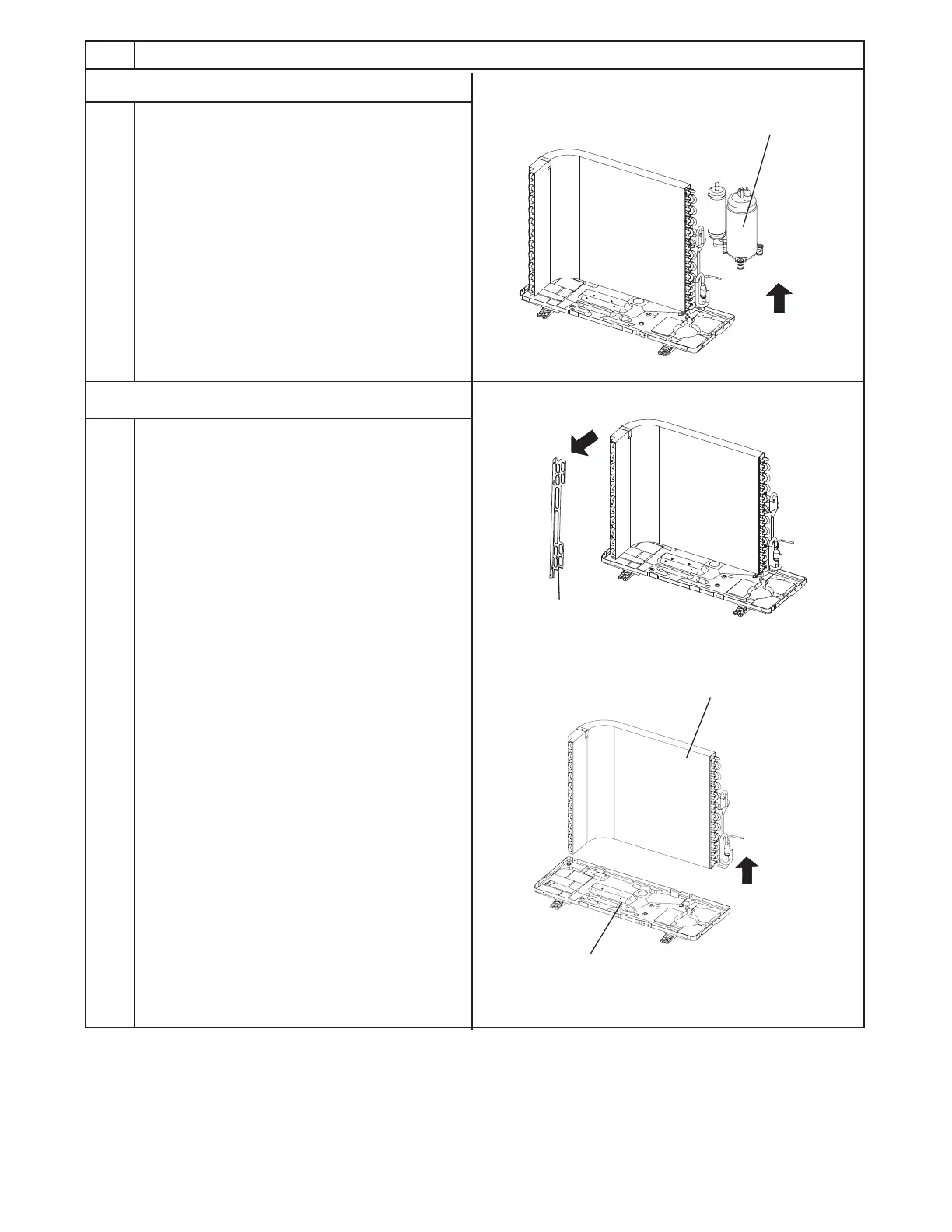

12. Remove compressor
Steps
Procedure
Remove three (3) nuts from compressor mounting bolts,
then lift compressor from base pan.
Remove the condenser from the base pan.
13. Remove condenser
Compressor
Remove the screws retaining the support and
condenser assembly. Then remove the support.
Support
2
1
Condenser
Base Pan
