50
Steps
Procedure

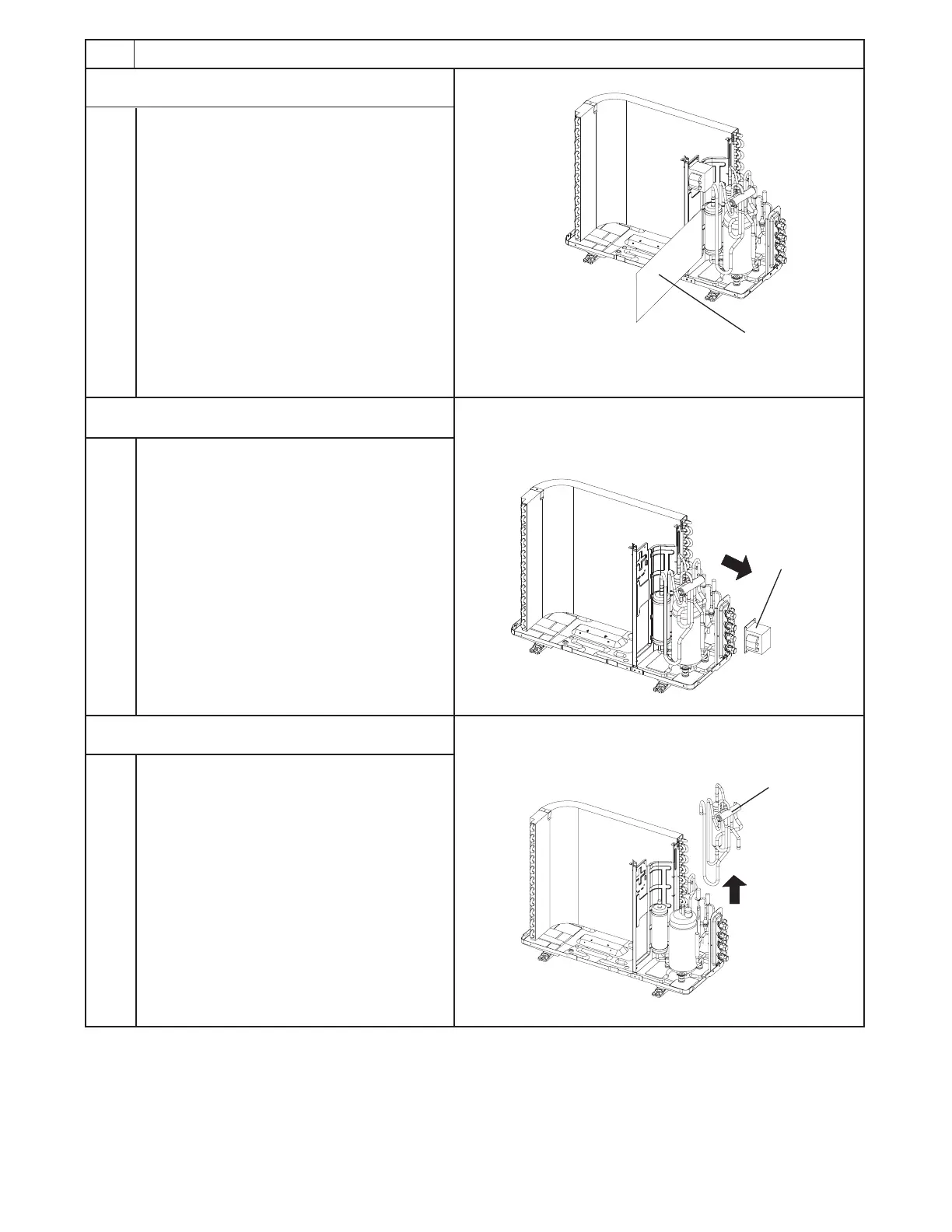

8. Remove 4-way valve
6. Remove sound shield
7. Remove reactor
Carefully remove the sound shield from around
the compressor.
Sound Shield
Reclaim system refrigerant charge.
Cut all lines connected to 4-way valve;
disconnect solenoid coil wiring and remove
4-way valve from unit.
4-Way
Valve
Reactor
Remove
screws holding the reactor to the
compressor partition; then remove the reactor.
49
51
Table of Contents
Table of Contents
1
Safety Considerations
1
Model Number Nomenclature
2
Serial Number Nomenclature
2
Condensate Pump Accessory
3
Accessory Condensate Pump Kit Contents
3
Standard Features and Accessories
3
Physical Data
4
Ahri Capacity Ratings
6
Airthrow Data
6
Sound Ratings
6
Indoor Unit Dimensions
7
Dimensions - - Outdoor
7
Dimensions - - Indoor
7
Dimensions - - Outdoor
8
Clearances
9
42K 230V System Operating Envelope
11
System Operating Envelope
11
Wiring
12
Power Wiring
12
Control Wiring
12
Electrical Data
12
Connection Diagram
13
Wiring Diagrams
14
Refrigeration System Diagrams
19
Deep Vacuum Method
21
Triple Evacuation Method
21
System Vacuum and Charge
21
System Evacuation and Charging
21
Remote Control Display
22
Remote Control and Functions
22
Battery Installation
23
Setting the Clock
23
Remote Control Operation - - Quick Start
24
Emergency Operation
24
Selecting the Operating Mode:
24
Mode Descriptions
24
Using Dry Coil Function (X- -Fan)
25
Cool & Heat Modes
25
Fan Mode
25
Dry Mode
25
Sleep Mode
26
Timer Function
26
Timer on Only
26
Timer off Only
26
Timer on and Timer off
27
Light Function
27
Time Delay
27
Heating Features
27
Troubleshooting
28
Warning
28
Failure to Follow this Warning Could
28
Electrical Shock Hazard
28
Failure to Follow this Warning Could Result in Personal Injury
28
Or Death
28
Before Installing, Modifying, or Servicing System, Main
28
Electrical Disconnect Switch Must be in the off Position
28
There May be more than One Disconnect Switch. Lock out
28
And Tag Switch with a Suitable Warning Label
28
38GVM Diagnostic Codes
30
Error Code Table
31
Malfunction Indicator
32
Main Checking Point
33
Malfunction Checking and Elimination
33
IPM Protection Malfunction
33
Energize the Unit
34
PFC Protection Malfunction
35
Capacity Charging Malfunction
36
Anti-High Temperature and Overload Malfunction
37
Temperature Sensor Malfunction
38
Start Failure Malfunction
39
Communication Malfunction
40
Compressor Overload, Diacharge Protection Malfunction
42
Compressor Desynchronizing Malfunction
43
Appendix Tables
44
Removal Procedure of Outdoor Unit
47
Remove Top Cover and Wiring Cover
47
Unit Removal Procedures
47
Remove Front Grille and Front Panel
48
Remove Right and Left Side Panels
48
Remove the Fan Blade
49
Remove Control Box Assembly
49
Remove Sound Shield
50
Remove Reactor
50
Remove 4-Way Valve
50
Remove Compressor Partition
51
Remove the Service Valve Support Assembly
51
Remove Electronic Expansion Valves and Shut-Off Valves
51
Remove Compressor
52
Remove Condenser
52
Remove Condenser Support
54
Remove Fan Blade
54
Remove Motor and Motor Support
54
Remove Guard Grille
59
Remove Right Side Plate
59
Remove the Grille
59
Disassembly and Assembly of Compressor
66
Disconnect the Power Cord
66
Disassemble the Pipeline Connected with Compressor
66
4
