Steps Procedure
the compressor upwards to remove the compressor.
Note: Keep the ports of discharge pipe and suction
pipe from foreign objects.
Remove the screws retaining the condenser
sub-assy and chassis, then lift the condenser
sub-assy upwards to remove.

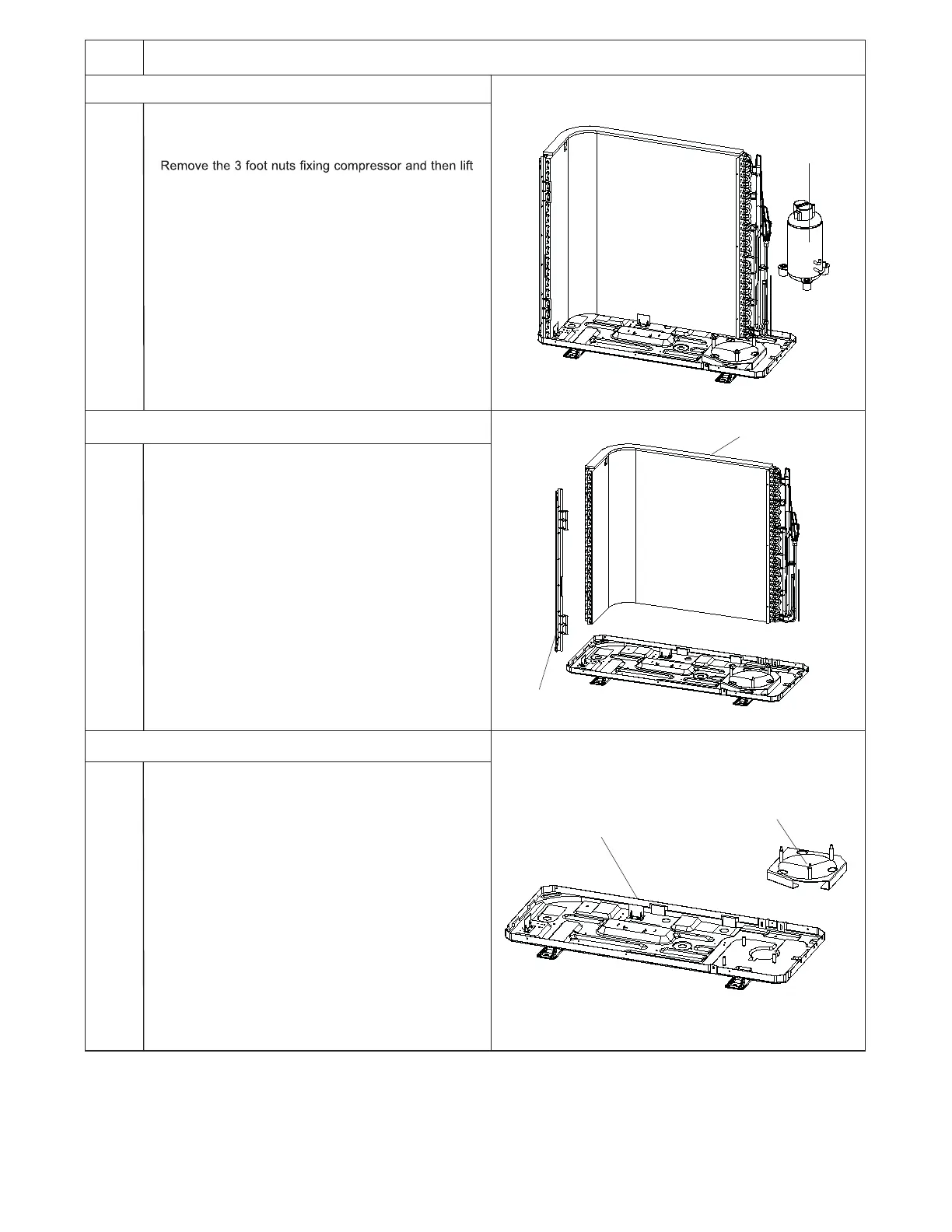

18.Remove Compressor Mounting Plate Sub-Assy
Lift the Compressor Mounting Plate Sub-Assy upwards
to remove it.
17.Remove condenser sub-assy
16.Remove compressor
Compressor
Condenser Sub-Assy
Condenser Support Plate
Compressor Mounting Plate Sub-Assy
chassis
