40MULA: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
10
INSTALLATION
Upflow Coil Installation
The cased coil is designed to fit furnaces of the same width.
1. Set the coil in place on the upflow furnace discharge air opening.
2. Ensure the coil is level for proper condensate drainage. Do not tip coil toward condensate drain. Coil casing does not need not be fastened or screwed to
furnace.
3. When installing a wider coil on a narrow furnace, create a field fabricated adapter.

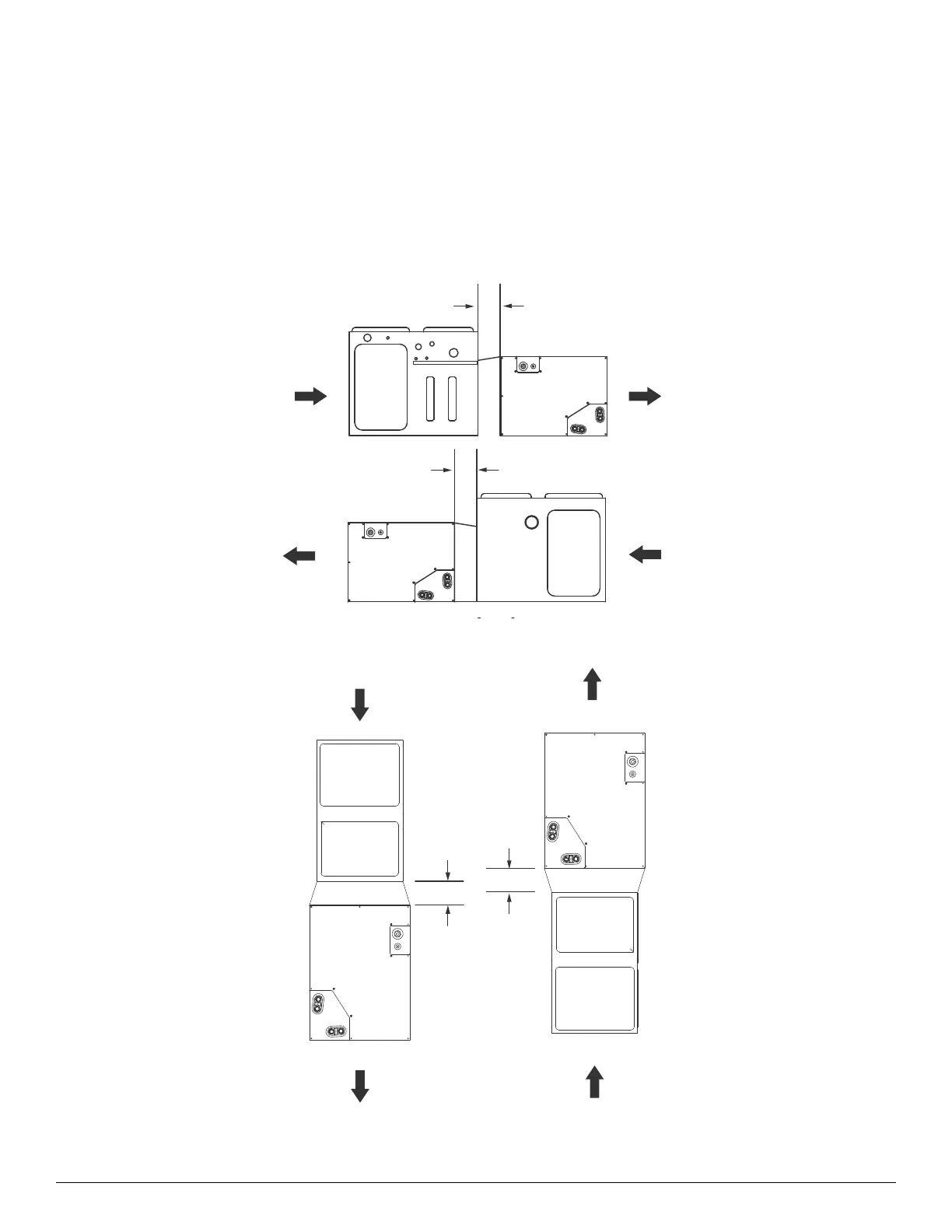

Fig. 8 — Horizontal Right and Left Installation
Fig. 9 — Vertical Upflow and Downflow Installation
4"minimum
4"minimum
Furnace
Coil
Furnace
Airflow
Ductwork
Airflow
Ductwork
&f
Airflow
Airflow
Ductwork
Ductwork
4"minimum
Furnace
4"minimum
Furnace
