40MULA: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
4
Table 1 — Model Numbers

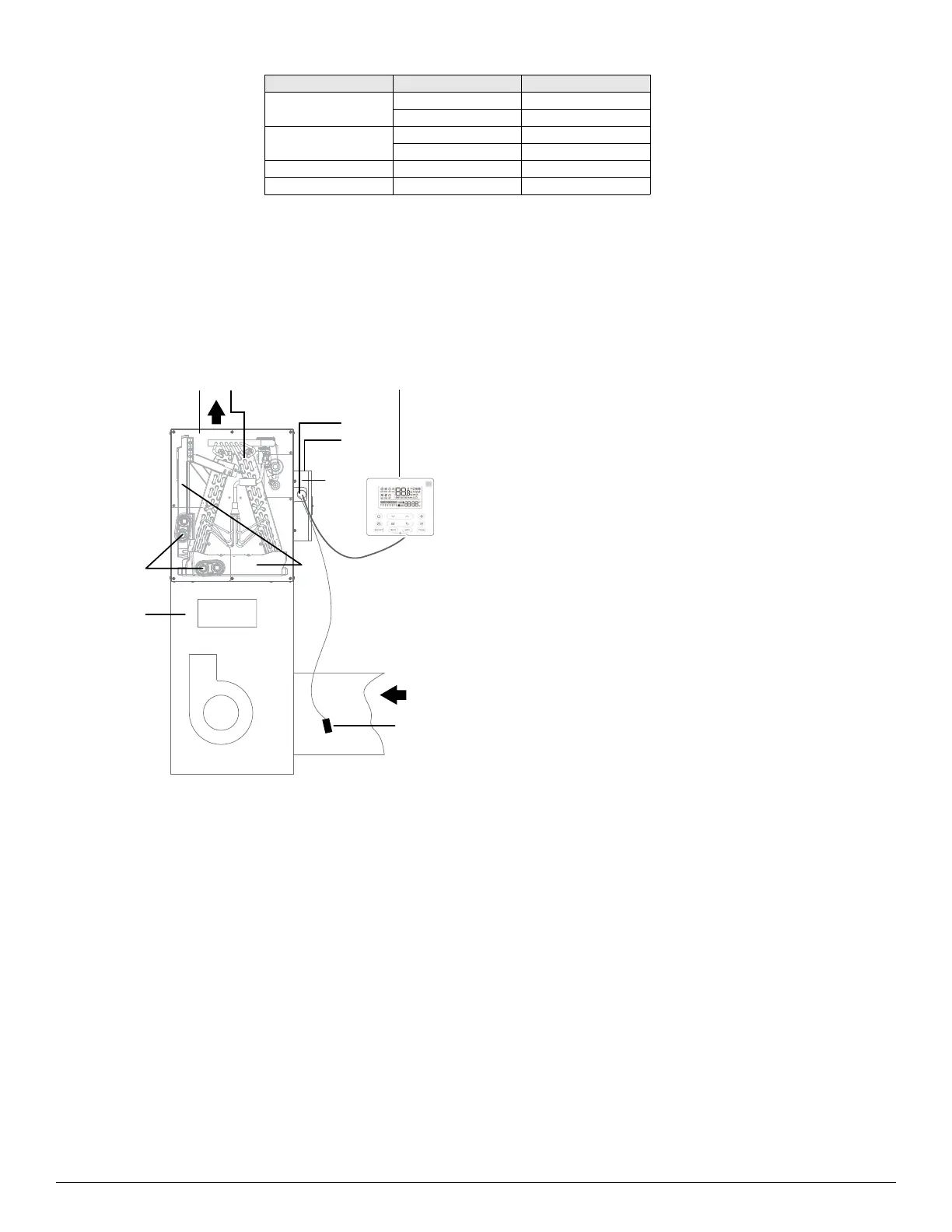

Fig. 3 — Parts
KBTUH VOLTAGE MODEL #
24
208/230-1-60 40MULAQ24XAX
208/230-1-60 40MULAQ24XBX
36
208/230-1-60 40MULAQ36XBX
208/230-1-60 40MULAQ36XCX
48 208/230-1-60 40MULAQ48XCX
60 208/230-1-60 40MULAQ60XDX
A-COIL (40MULAQ)(1).
(2).
Drain pan(3).
Condensate drain connection
Pipe temperature sensor（T2）
(4).
Furnace(5).
(6). Indoor and outdoor unit communication
cable
Power supply system(7).
(8). Control interface
Wired wall controller(9).
(10). Room temperature sensor （T1）
NOTE:
The 1/2-inch wiring holes on the box needs
to be connected to standard conduit fitting and
conduit (flexible or rigid).
Extension wires for T1 and T2 are included
the accessory kit.
Lor
(1) (2)
(3)
(8)
(7)
(6)
(4)
(5)
(10)
(9)
