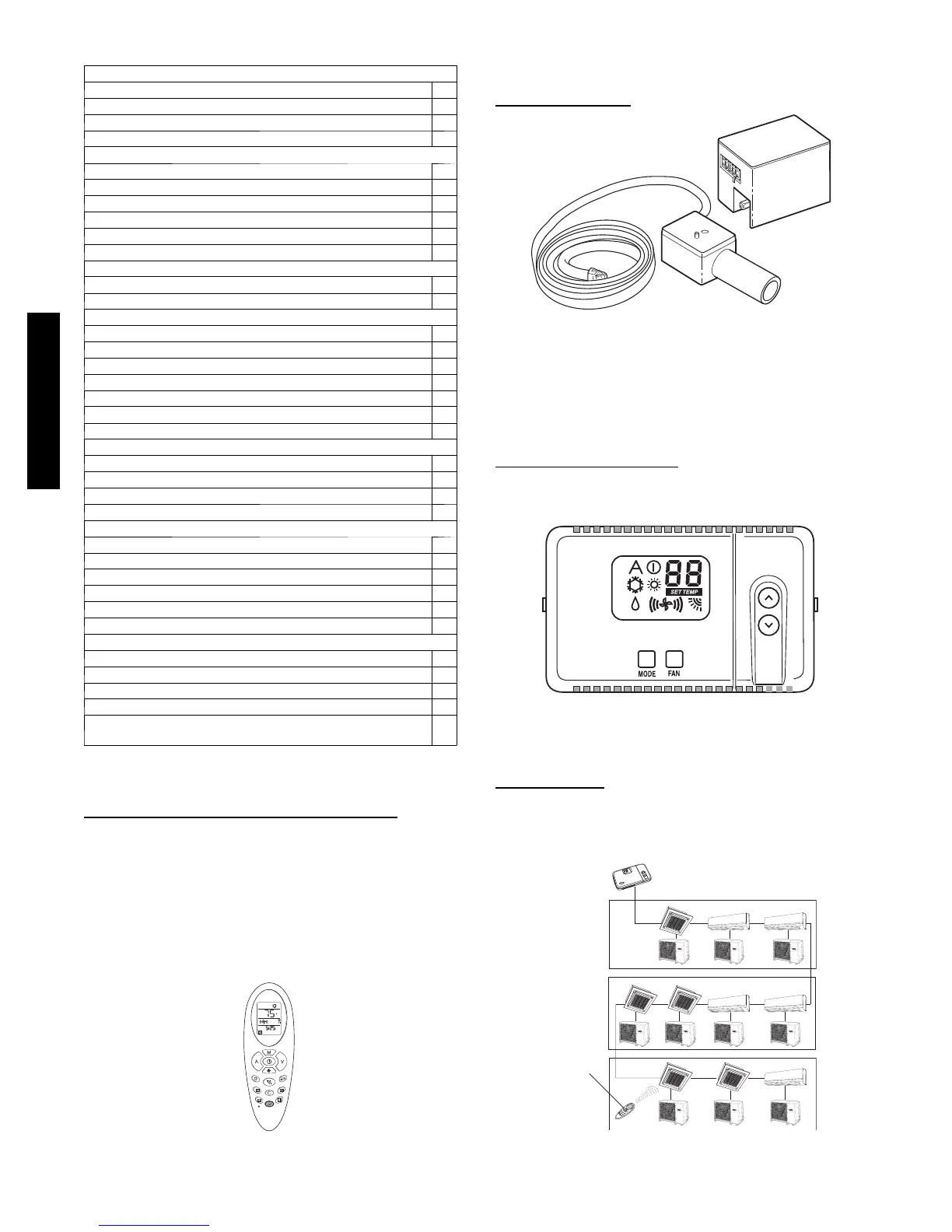

4
STANDARD FEATURES AND ACCESSORIES
Ease Of In stall ation
Indoor and Outdoor Compact Size S
Outdoor Unit Wall Mounting Kit A
Outdoor Unit Stacking Kit A
Indoor Mounting Bracket S
Comfort Features
Microprocessor Controls S
Wireless Remote Control S
Automatic Air Sweep S
Air Direction Control S
Auto Restart Function S
Cold Blow Protection On Heat Pumps S
Energy Saving Features
Sleep Mode S
Stop/Start Timer S
Safety And Reliability
3MinuteTimeDelayForCompressor S
Over Current Protection For Compressor S
Crankcase Heater (standard on 38QRF030) A
Indoor Coil Freeze Protection S
Indoor Coil High Temperature Protection On Heat Pumps S
Condenser High Temperature Protection On Heat Pumps S
Accumulator On Cooling Only and Heat Pumps S
Ease Of Service And Maintenance
Cleanable Filters S
Diagnostics S
Liquid Line Pressure Taps S
Suction And Discharge Pressure Taps S
Application Flexibility
Low Ambient Controls (--- 20° F) (--- 28.9° C) A
3 --- P h a s e o n s i z e 0 3 6 S
Wind Baffles A
Condensate Pum ps A
Wired Controls A
Zone Manager A
Warranty
5 ---Year Compressor Warranty S
1 --- Ye a r P a r t s W a r r a n t y S
Compressor Extended Warranty Years 6 Thru 10 O
All Parts And Labor Years 2 Thru 5 O
All Parts And Labor Years 2 Thru 5,
Compressor Years 6 Thru 10
O
Legend
SStandard
A Accessory
OOptional
One Way Communication Remote Control
Comes standard with unit and has the following key features:
S 5 modes (heat pump)
S 24 hour timer
S Personal settings which enable the user to store preferred
settings and retrieve them by the push of one button.
S Multiple addressable units to avoid interference when
units are installed in same space. A command to one unit
will not affect the second unit.
PM
F
A0451
Fig. 1 – Wireless Remote
INDOOR UNIT ACCESSORIES
Condensate Pump
A07892
Fig. 2 – Condensate Pump Accessory
On high wall fan coils, the condensate pump has a lift capability of
12 ft (3.6 m) on the discharge side with the pump mounted in the
fan coil or 6 ft (1.8 m) on the suction side if the pump is remote
mounted. The pump is recommended when adequate drain line
pitch cannot be provided, or when the condensate must move up to
exit.
Wired Group Controller
For applications where the use of wireless remote control is not
desired, the 40QNC/QNQ units can be controlled by means of a
wired wall--mounted control with an LCD display.
A08432
Fig. 3 – Wall Mounted Control with LCD Display
The wired control can also be used to control up to 6
daisy--chained units.
Zone Manager
For applications where more sophisticated controls are required, a
Zone Manager that permits the connection of up to 32 different
indoor units, divided into a maximum of eight different zones, can
be used.
Zone Manager
ZONE ..
ZONE 1
ZONE 8
Remote Control
A08443
Fig. 4 – Zone Manager Connection
40QNC,QNQ/38HDF,QRF
