Carrier 40QNQ - Indoor Unit Clearances; Outdoor Unit Clearances

7

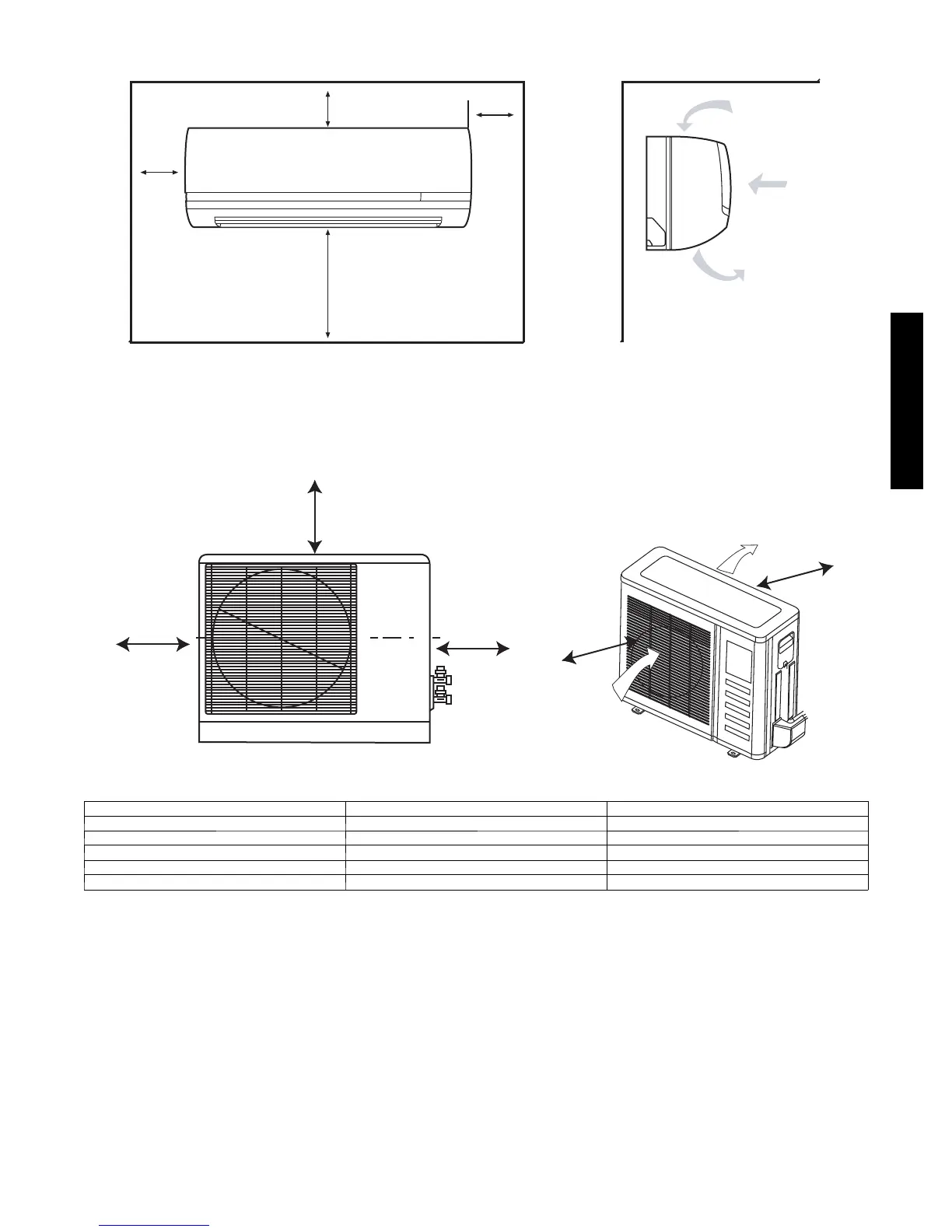

CLEARANCES -- INDOOR
min.
min.
min.
min.
4 in.
(101.6 mm)
4 in.
(101.6 mm)
80 in
(2032 mm)
8 in.
(203.2 mm)
A08357
Fig. 9 – 40QNC,QNQ Indoor Unit Clearance
CLEARANCES -- OUTDOOR
A
D
B
Air-inlet
Air-outlet
C
E
A08436
UNIT Coil Facing Wall --- in. (mm)
Fan F acing Wall --- in. (mm)
A 24 (610)
24 (610)
B 36 (914)
36 (914)
C 36 (914)
8 (203)
D 6 (152)
8 (203)
E 6 (152)
36 (914)
Fig. 10 – Outdoor Unit Clearance
40QNC,QNQ/38HDF,QRF
