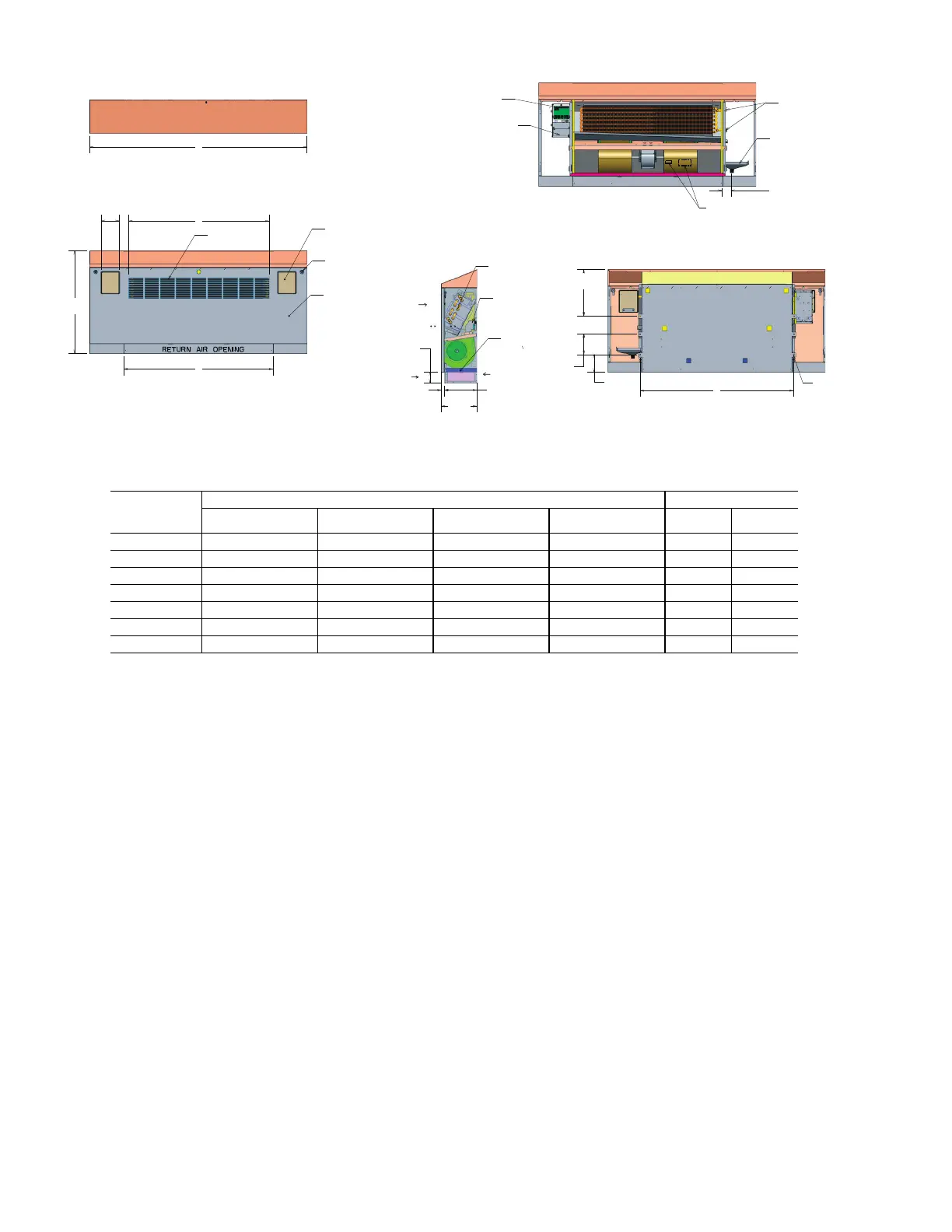

Fig. 48 — 42VFD—Vertical Sloped Cabinet Front Supply With Optional Electric Heat
UNIT
SIZE
42VFD
DIMENSIONS – in.[mm]
a,b,c,d,e,f,g
NOTE(S):
a. Right-hand units shown, left-hand opposite.
b. All dimensions are ± .25 [6]. Drawing not to scale.
c. Product specifications are subject to change without notice.
d. Control box size and position may vary. Consult factory.
e. Position may vary.
f. Service access is located on the front of the service box.
g. Knockouts on the bottom and side of the control box for incoming connections.
QUANTITY/UNIT
ABCDBlowerMotor
02 41 [1041] 22 [559] 23 [584] 17-1/4 [438] 1 1
03 45 [1043] 26 [660] 27 [686] 21-1/2 [546] 1 1
04 51 [1295] 32 [813] 33 [838] 26 [660] 2 1
06 61 [1549] 42 [1067] 43 [1092] 39-1/4 [997] 2 1
08 63 [1600] 44 [1118] 45 [1143] 39-1/4 [997] 2 1
10 77 [1956] 58 [1473] 59 [1499] 52-1/2 [1334] 4 2
12 85 [2159] 66 [1676] 67 [1702] 61-1/4 [1556] 4 2
Front View
Right Side View
Rear Mounting View
Front View
(Without Access Panel)
Top View
Control Box
(See Note f and g).
5/8 [16] OD
Supply and Return
Water Connections
Plastic auxilary
drain pan with 3/4 [19]
MPT connection.
2-1/2 [65]
(Dimensions from
inside case leg).
Unit Label and
Wiring Diagram
(See Note e).
Optional Bottom Return
Control Access
Door Std (2)
(Options Available)
1/4 Turn Panel
Fastener Typ.
Removable Front
Access Panel
Supply
Air
Return
Air
Optional
Outside Air
See technical
catalog for
dimensional details.
Optional Electric
Strip Heater Element
Mounting Holes
Ø1/2 [11]
Mounting Holes
(Qty 6)
A
5 [126]
D
28-3/4
[730]
B
2-7/8
[72]
3/4
[20]
9
[230]
8-1/4
[210]
1 [25]
Filter
13
[331]
5 [127]
5-3/4
[146]
5
[126]
C
Optional Service
Switch
Supply Air
Opening
