65

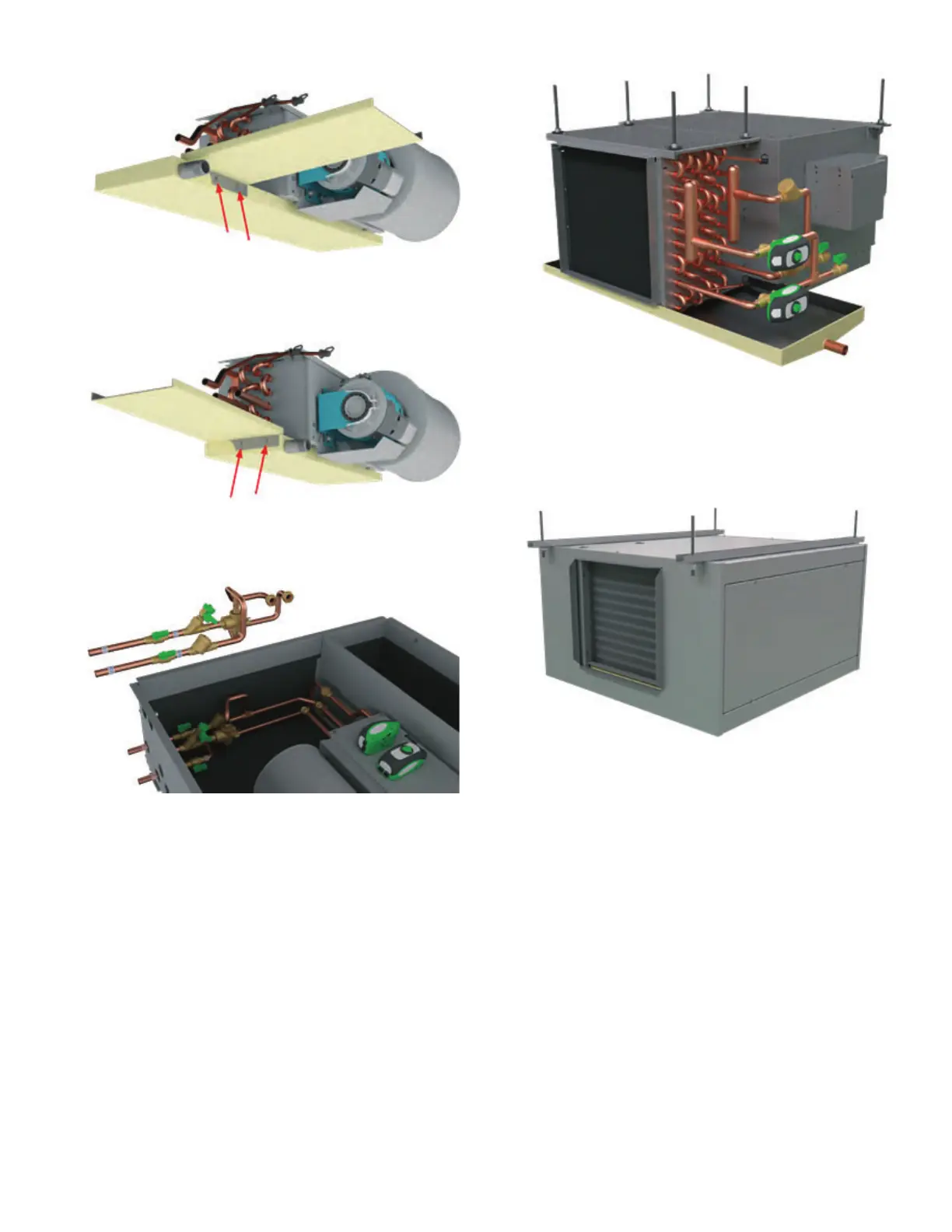

Fig. 61 — Right-Hand Extension Drip Lip
Fig. 62 — Right-hand Side Drip Lip
(Without Valve Package)
Fig. 63 — General Valve Package Assembly
(CG Unit Shown)
42D UNITS
Threaded Rod Installation
Refer to the unit product drawings for mounting hole locations
and sizes. On certain units, shipping screws or braces must be re-
moved after the unit is installed. Be sure to check all tags on the
unit to determine which, if any, of these devices need to be re
-
moved. Refer to Table 4 and Fig. 64.
Horizontal open coil unit models 42DA may be mounted using the
neoprene grommets provided.
Plenum-type unit model 42DC should be mounted using the four
hanger points on the coil and two hanger points on the plenum.
Fig. 64 — Thread Rod Suspension (42DC/DE Units)
SUSPENSION MOUNTING
Hanger Rails Mount
Cabinet unit models 42DE and 42DF may be suspended using the
neoprene grommets provided. See Fig. 65.
Fig. 65 — Hanger Rails Mount (42DE/DF Units)
FLOOR/WALL MOUNT INSTALLATION
Hi-Performance Unit Installation (42DD)
Hi-Performance vertical closet units 42DD are designed to be
floor mounted or otherwise supported from below and may be
anchored directly through the cabinet floor or the optional 6 in.
legs.
1. Select the unit location. Allow for adequate space for free air
circulation, service clearances, piping and electrical connec-
tions, and any necessary ductwork.
2. Make sure the floor is able to support the weight of the unit.
See submittal drawings for nominal unit weight.
NOTE: Threaded rods and hardware are provided by others. DC unit shown.
NOTE: Threaded rods and hardware are provided by others. 42DE unit shown.
