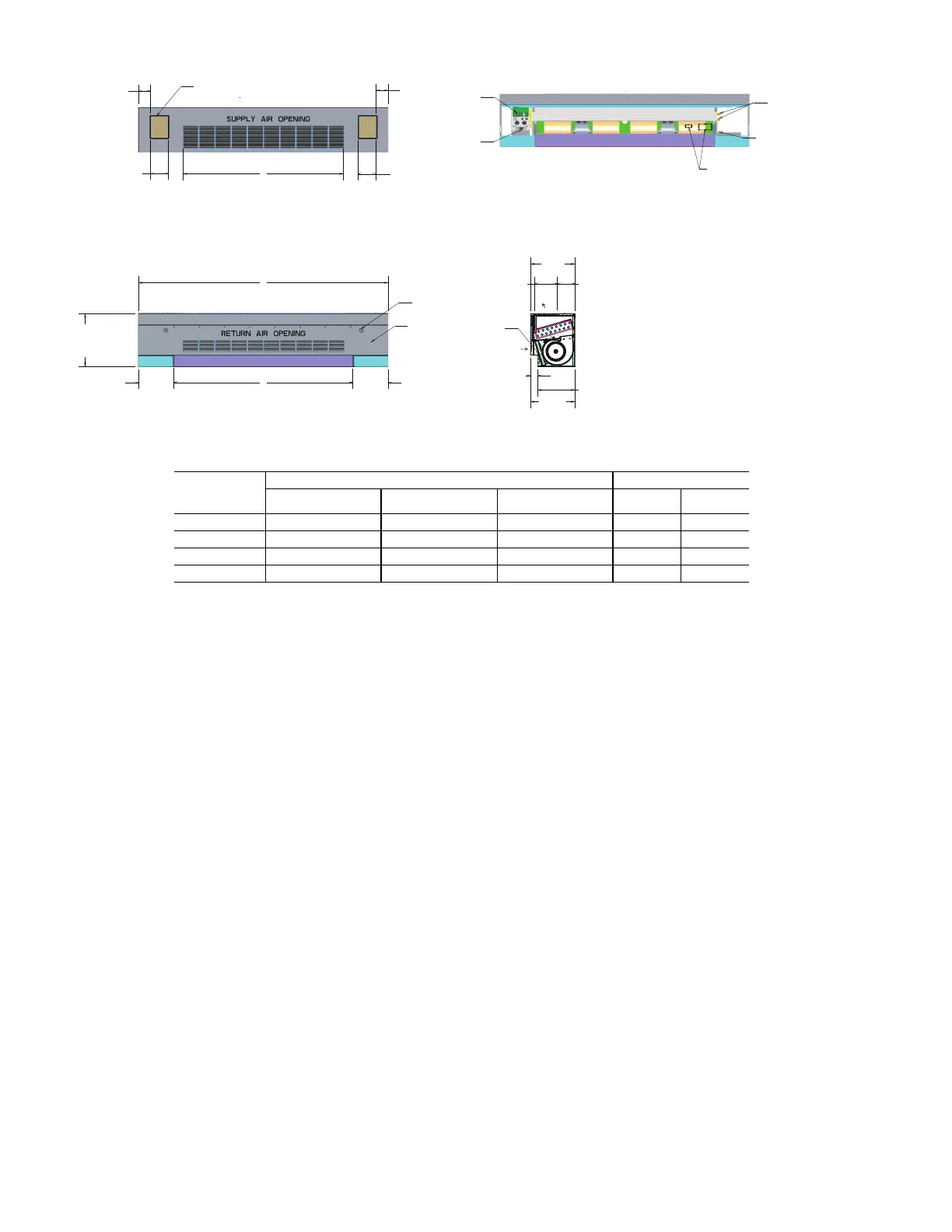

Fig. 52 — 42VEA—Vertical Lowboy and Vertical Lowboy Tall Cabinet
UNIT
SIZE
42VEA
DIMENSIONS – in. [mm]
a,b,c,d,e,f,g
NOTE(S):
a. Right-hand units shown, left-hand opposite.
b. All dimensions are ± .25 [6]. Drawing not to scale.
c. Product specifications are subject to change without notice.
d. Control box size and position may vary. Consult factory.
e. Position may vary.
f. Service access is located on the front of the service box.
g. Knockouts on the bottom and side of the control box for incoming connections.
QUANTITY/UNIT
ABCBlowerMotor
02 41 [1041] 22 [559] 17 [432] 2 1
03 46 [1168] 27 [686] 21-1/2 [546] 2 1
04 54 [1372] 35 [889] 30-1/4 [768] 2 1
06 68 [1727] 49 [1245] 43-3/8 [1102] 4 2
Front View
Right Side View
Front View
(Without Access Panel)
Top View
Unit Label and
Wiring Diagram
(See Note e).
5/8 [16] OD
Supply and Return
Water Connections
Optional Service
Switch
Control Box
(See Note f and g).
Plastic auxilary
drain pan with 3/4 [19]
MPT connection.
Removeable Front
Access Panel
14-3/8 [365]
For short model.
16-3/8 [419]
For tall model.
Supply
Air
Return
Air
1 [25]
Filter
3-1/4
[82]
Control Access Door (2)
(Options Available)
5
[126]
C
5
[126]
3-1/4
[82]
A
B
9-5/8
[244]
9-5/8
[244]
1/4 [6] Turn Panel
Fastener typ.
12
[307]
5
[124]
10-1/4
[259]
12-1/8
[307]
2
[48]
6
[155]
