GRILLE LOCATIONS
UNIT FIG. GRILLE ARRANGEMENTS
42SG A
Supply
Up to 3 grilles located on any of
3 sides shown.
Return
One grille located on any of 3 sides
shown.
42SH B
Supply
Up to 3 grilles located on any of
3 sides shown.
Return One grille located opposite risers.
42SJ C
Supply
Up to 3 grilles located on any of
3 sides shown (per section).
Return
One grille located on any of 3 sides
shown (per section).
42SU D
Supply
Up to 3 openings from any 5 knock-
outs available.
Return One grille location.

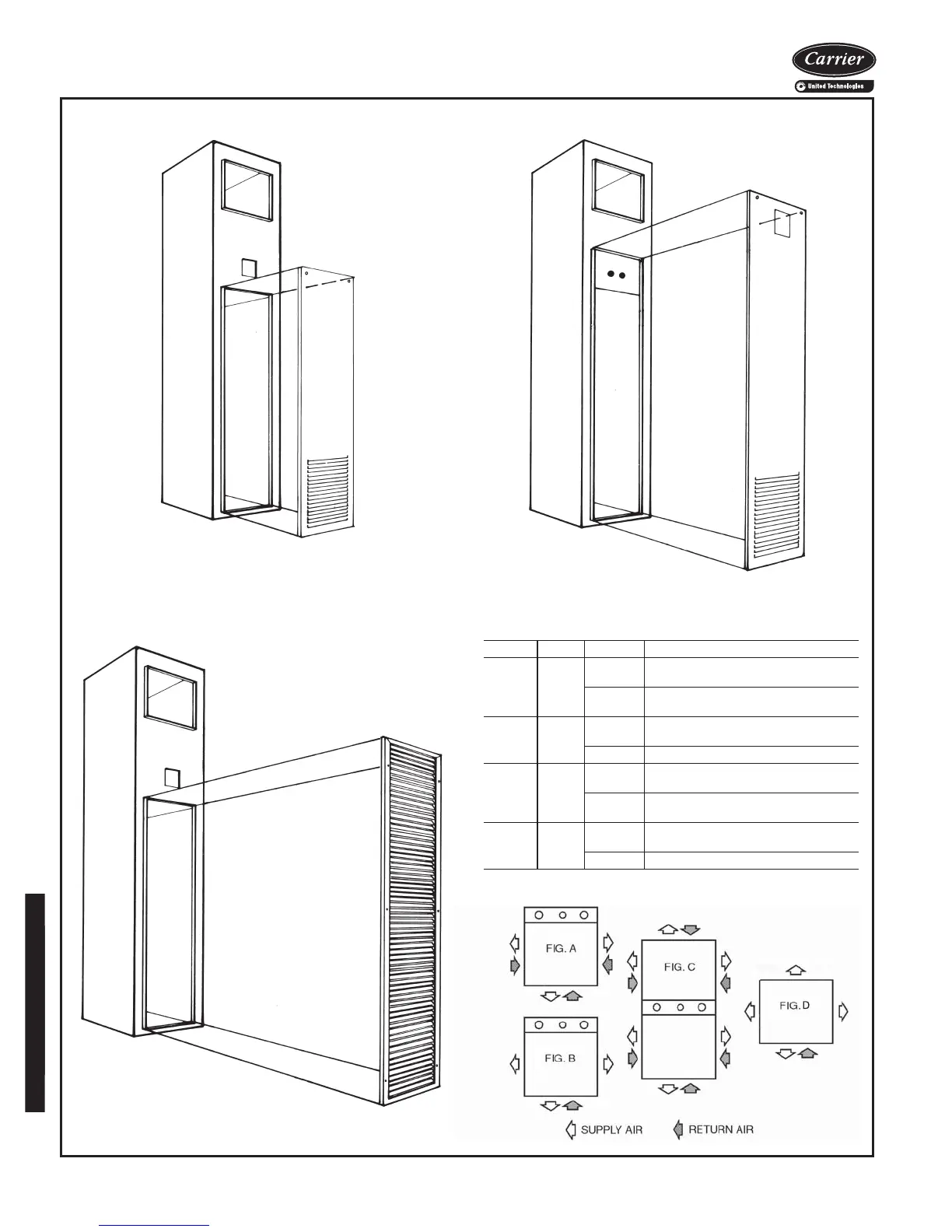

PANEL NO. 1
PANEL NO. 2 WITH CONTROL DOOR
SHORT FRAME — SURFACE MOUNTED GRILLE
(for use with surface or wall mounted thermostat applications)
LONG FRAME — SURFACE MOUNTED GRILLE
(for use with unit mounted thermostat applications)
PANEL NO. 3
SHORT FRAME — SURFACE MOUNTED GRILLE
(for use with surface or wall mounted thermostat applications)
a42-4156
