115

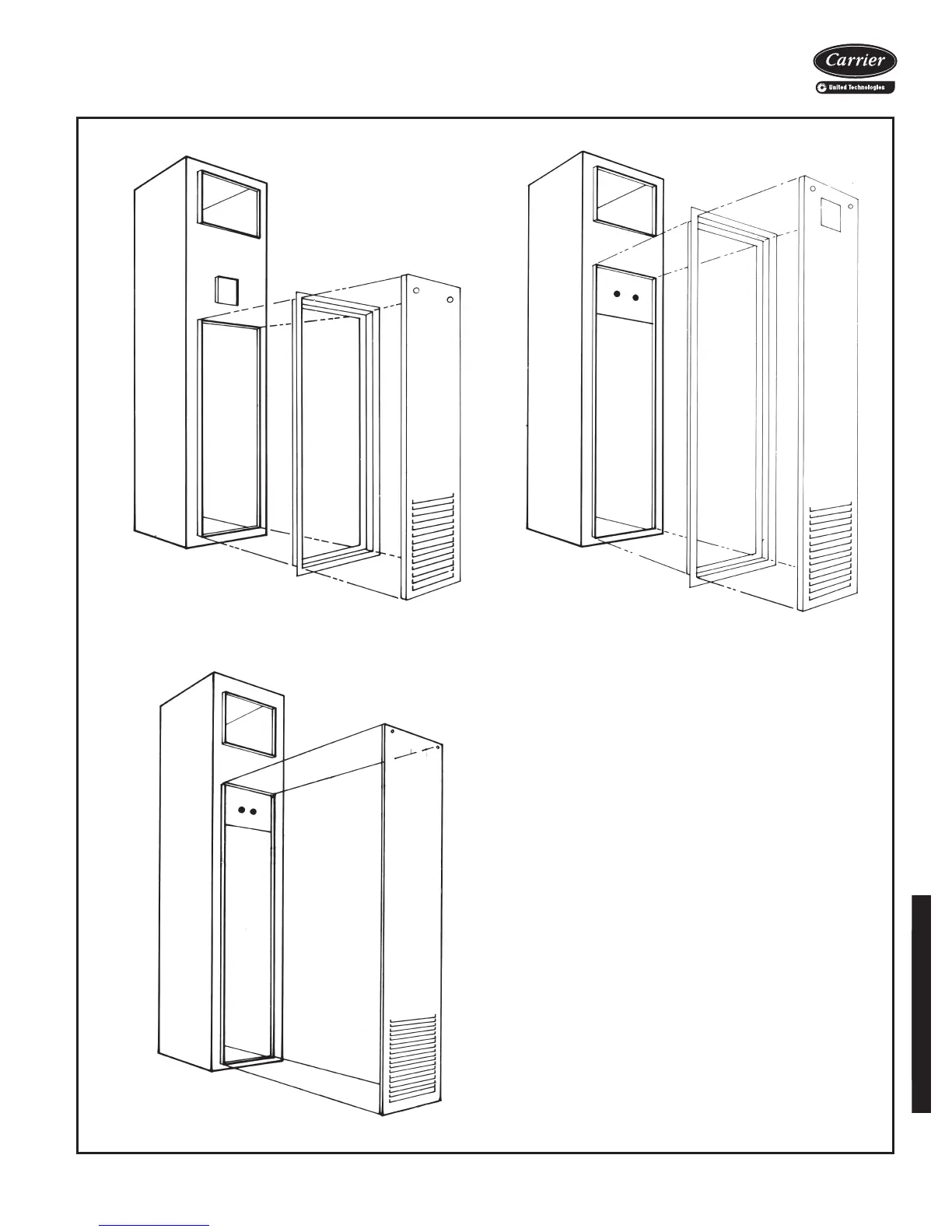

PANEL NO. 4
SHORT FRAME — SURFACE MOUNTED GRILLE
(for use with surface or wall mounted thermostat applications)
PANEL NO. 5 WITH CONTROL DOOR
LONG FRAME — SURFACE MOUNTED GRILLE
(for use with unit mounted thermostat applications)
LONG FRAME — SURFACE MOUNTED GRILLE
(for use with wall mounted thermostat applications)
PANEL NO. 2 WITHOUT CONTROL DOOR
42S Series Units
