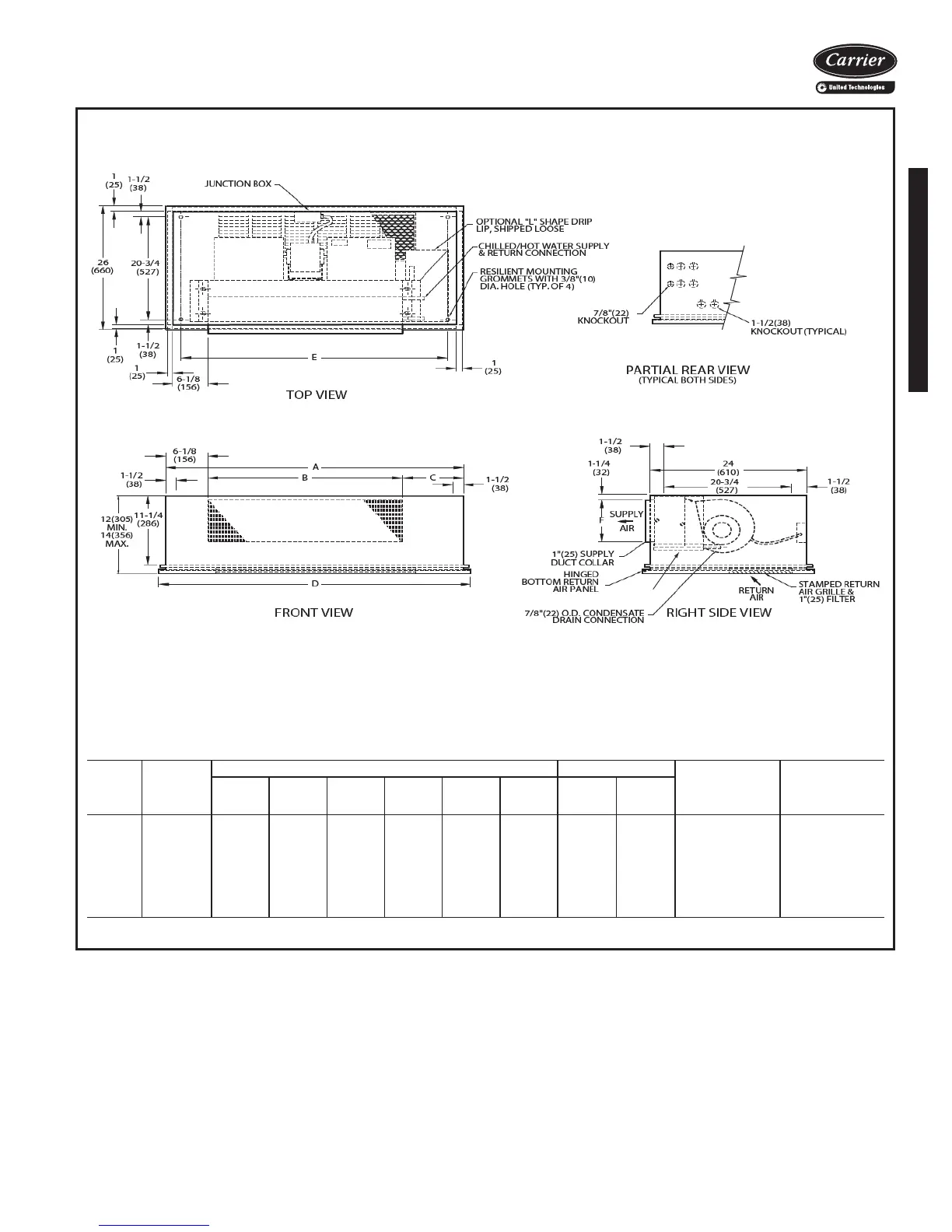

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL,
FRONT SUPPLY, AND BOTTOM RETURN
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT
SIZE
NOM
AIRFLOW
(Cfm)
DIMENSIONS (in.) QTY/UNIT BOTTOM
RETURN
FILTER SIZE
(in.)
UNIT WEIGHT*
(lb)
ABCDEFBlowerMotor
02 200 35 16 12
3
/
4
37 32 6 1 1 10 x 21 115
03 300 35 20 8
3
/
4
37 32 6 1 1 10 x 21 120
04 400 41 26 8
3
/
4
43 38 6 2 1 10 x 27 135
06 600 53 31 15
3
/
4
55 50 7 2 1 10 x 38 150
08 800 53 38 8
3
/
4
55 50 7 2 1 10 x 38 155
10 1000 75 52 16
3
/
4
77 72 7 4 2 10 x 52 227
12 1200 75 60 8
3
/
4
77 72 7 4 2 10 x 52 241
NOTES:
1. Right hand unit shown; left hand unit opposite.
2. Internal factory valve package and drains may not align with cabinet
knockouts.
3. Dimensions shown in inches (mm). All dimensions are ±
1
/
4
inches.
4. Bottom panel is Arctic White polyester powder coat paint.
DRAIN PAN
A42-4149
42C Series Units
